Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-02614CABLE 2COND 14AWG BLACK |
765 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/0.0100" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | - | 502.0' (153.0m) | Black | UL Style 2651 | - | 300 V | -10°C ~ 105°C | - | 0.0209" (0.530mm) | - | - |
|
30-01224CABLE 2COND 20AWG BLACK SHLD |
1,071 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 20 AWG | 41/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
30-02027CABLE 8COND 28AWG BLACK |
765 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 28 AWG | 7/0.0047" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.185" (4.70mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0098" (0.250mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-01863CABLE 3COND 22AWG BLACK SHLD |
765 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 22 AWG | 65/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.165" (4.19mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0256" (0.650mm) | High Density Polyethylene (HDPE) | - |
|
30-01611CABLE 8COND 24AWG BLACK SHLD |
612 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 24 AWG | 41/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.268" (6.81mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | - | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00676CABLE 10COND 28AWG BLACK SHLD |
1,224 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 28 AWG | 19/0.0031" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.217" (5.51mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
|
30-02420CABLE 3COND 22AWG BLACK SHLD |
460 |
|
Datasheet | * | Spool | Active | Multi-Conductor | 3 | 22 AWG | 26/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.153" (3.89mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-00912CABLE 3COND 22AWG BLACK SHLD |
2,142 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 22 AWG | 26/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.193" (4.90mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
30-01168CABLE 8COND 26AWG BLACK SHLD |
306 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.189" (4.80mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

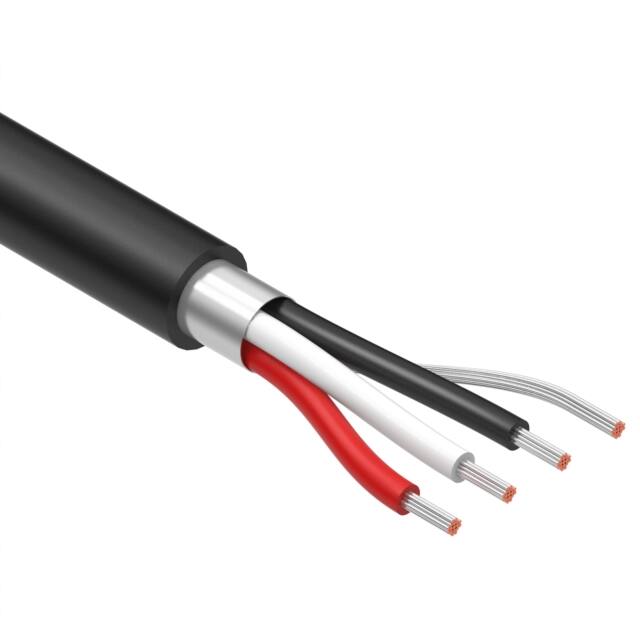

30-01428CBL 3COND 28AWG SHLD MPPE |
1,224 |
|
- |
- | Spool | Active | Multi-Conductor | 3 | 28 AWG | 7/0.0047" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.142" (3.61mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0307" (0.780mm) | Polyphenylene Ether, Modified (mPPE) | - |
