Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C2462A.41.10CABLE 3COND 24AWG GRAY |
1,265 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.163" (4.14mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C2404A.38.10CABLE 4COND 18AWG GRAY |
3,877 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.258" (6.55mm) | - | 500.0' (152.4m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C0764A.38.10CABLE 8COND 22AWG GRAY SHLD 500' |
1,119 |
|
Datasheet | - | Bulk | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Foil | 500.0' (152.4m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

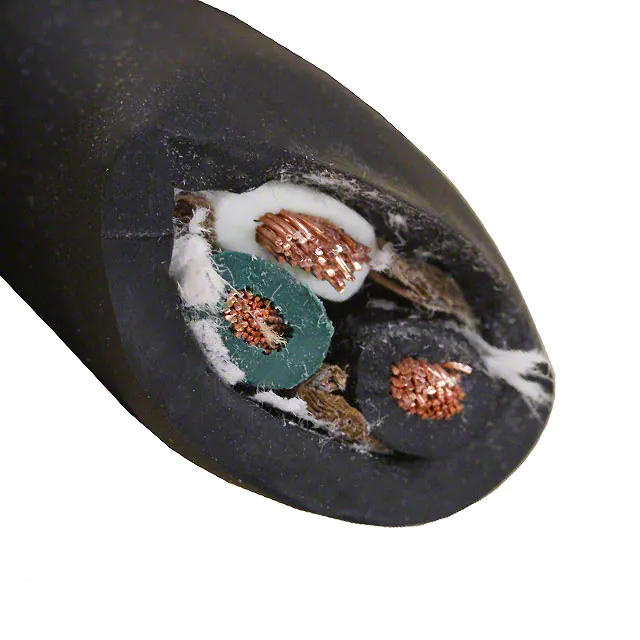

89083.35.01CABLE 3COND 12AWG BLACK |
2,868 |
|
Datasheet | Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.614" (15.60mm) | - | 250.0' (76.2m) | Black | - | Oil Resistant | 600 V | -50°C ~ 105°C | Cord and Cordset | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
C4066A.41.10CABLE 6COND 22AWG GRAY |
1,163 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.218" (5.54mm) | - | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

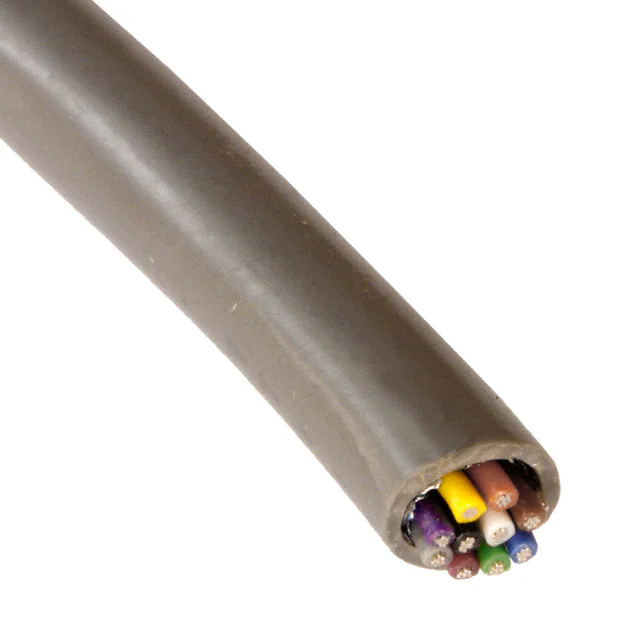

C0745A.41.10CABLE 10COND 24AWG GRAY SHLD |
110 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.245" (6.22mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
E2002S.41.10CABLE 2COND 22AWG GRAY SHLD |
10,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.125" (3.18mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|

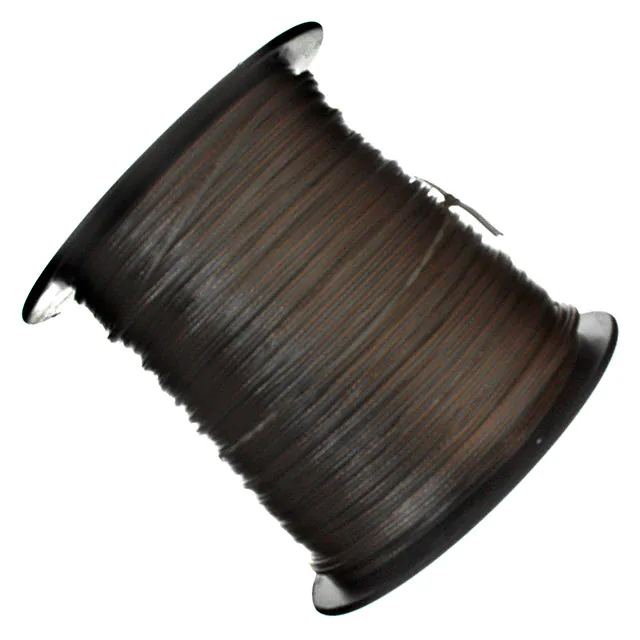

C1362.21.90CABLE SPKR 2COND 22AWG CLEAR |
12,000 |
|
- |
- | Spool | Active | Speaker | 2 | 22 AWG | 7/30 | Copper, Bare; Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.145" (3.68mm) | - | 1000.0' (304.8m) | Clear | - | - | 120 V | - | Audio-Video, Home | 0.0200" (0.508mm) | - | - |
|
E1022S.30.10CABLE 2COND 20AWG GRAY |
30,000 |
|
Datasheet | - | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.134" (3.40mm) | - | 1000.0' (304.8m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0080" (0.203mm) | Poly-Vinyl Chloride (PVC) | - |
|
E3032S.41.02CABLE 2COND 18AWG WHITE |
3,000 |
|
Datasheet | - | Bulk | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.156" (3.96mm) | - | 1000.0' (304.8m) | White | ASTM B-3 | - | 300 V | 0°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
