Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

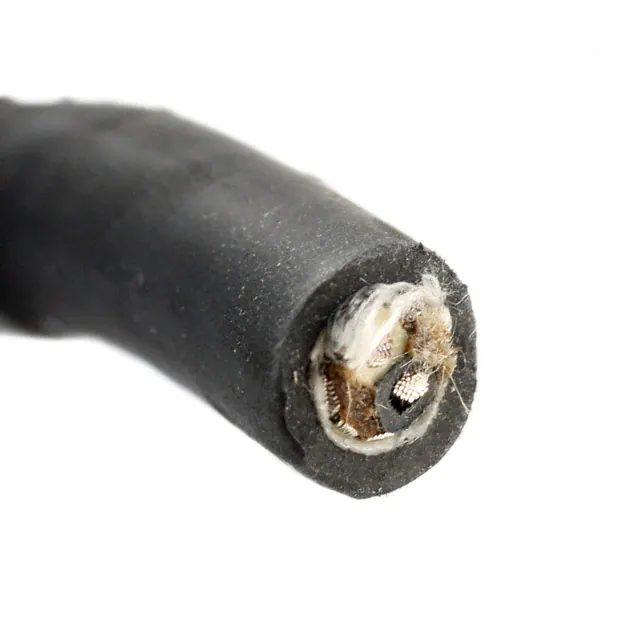

C1202.41.01CABLE MIC 2COND 18AWG BLACK |
6,000 |
|
Datasheet | - | Spool | Active | Microphone | 2 | 18 AWG | 41/34 | Copper, Tinned | Carolprene | 0.295" (7.49mm) | Braid | 1000.0' (304.8m) | Black | - | - | 300 V | -20°C ~ 60°C | Communication, Control | 0.0350" (0.889mm) | Rubber | - |
|
C2409A.41.10CABLE 2COND 14AWG GRAY |
5,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 14 AWG | 19/0.0147" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.326" (8.28mm) | - | 1000.0' (304.8m) | Gray | - | - | 600 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C0685A.41.10CABLE 8CON 24AWG GRAY SHLD 1000' |
16,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.276" (7.01mm) | Foil, Braid | 1000.0' (304.8m) | Gray | UL Style 2919 | Low Capacitance | 30 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Polypropylene (PP) | - |
|
C0458A.41.10CABLE 2CON 14AWG GRAY SHLD |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 14 AWG | 19/0.0147" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.288" (7.32mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - |
|
C3065.41.86CABLE 6COND 18AWG NATURAL |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 18 AWG | 7/26 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | Foil | 1000.0' (304.8m) | Natural | ASTM B-3 | Drain Wire, Rip Cord | 150 V | 0°C ~ 75°C | Communication, Control | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
C1644A.18.10CABLE 4COND 20AWG GRAY SHLD |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.255" (6.48mm) | Braid | 500.0' (152.4m) | Gray | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0290" (0.737mm) | Polyethylene (PE) | - |
|
C2425A.41.10CABLE 4COND 16AWG GRAY |
2,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 16 AWG | 19/0.0117" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.306" (7.77mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
C0584A.41.10MULTI-PAIR 4CON 18AWG GRAY |
2,000 |
|
Datasheet | - | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 18 AWG | 16/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.380" (9.65mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - |
|
C8101.41.03CABLE 2COND 18AWG RED SHLD |
9,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 19/30 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.165" (4.19mm) | Foil | 1000.0' (304.8m) | Red | - | Drain Wire | 300 V | -40°C ~ 200°C | Communication, Control | 0.0160" (0.406mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
C8111.41.03CABLE 2COND 16AWG RED SHLD |
2,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.198" (5.03mm) | Foil, Braid | 1000.0' (304.8m) | Red | - | Flame Retardant | 300 V | -40°C ~ 200°C | Communication, Control | 0.0140" (0.356mm) | Fluorinated Ethylene-Propylene (FEP) | - |
