Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
86414CY SL199MULTI-PAIR 28COND 28AWG 1000' |
4,627 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Pair | 28 (14 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.381" (9.68mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5670 SL199CBL 7COND 26AWG SLATE 1000=1000' |
2,170 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 7 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.186" (4.72mm) | - | - | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
79102 SL199CBL 3COND 20AWG SHLD 1000=1000' |
3,973 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 3 | 20 AWG | 10/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.219" (5.56mm) | Braid | - | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
M9748160 BK002MULTI-PAIR 32COND 18AWG BLACK |
4,355 |
|
Datasheet | - | Spool | Active | Multi-Pair | 32 (16 Pair Twisted) | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.815" (20.70mm) | Foil | 500.0' (152.4m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|

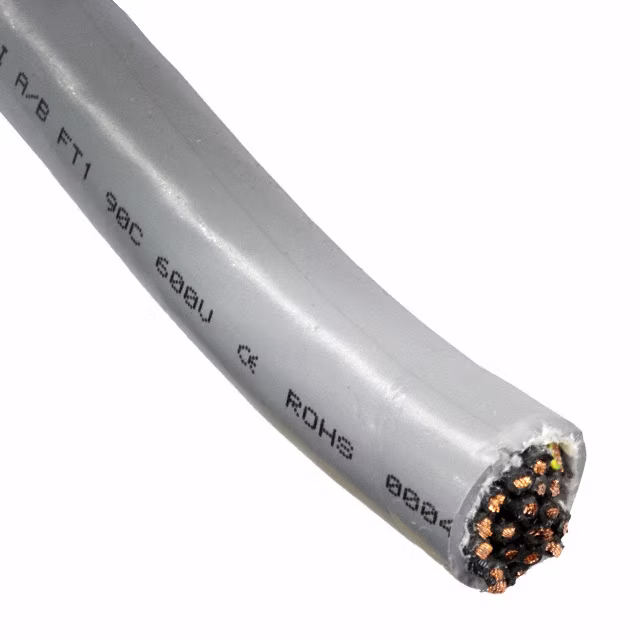

65825 SL002CABLE 25COND 18AWG SLATE |
2,207 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 25 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.666" (16.92mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5020/30C SL001CABLE 30COND 24AWG SLATE |
3,348 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 30 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.350" (8.89mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
86025CY SL002CABLE 25COND 28AWG SHLD |
3,152 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 25 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.329" (8.36mm) | Foil | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5695 BK199MULT-PAIR 4COND 26AWG 1000=1000' |
3,569 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.224" (5.69mm) | Foil, Braid | - | Black | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5695 SL199MULT-PAIR 4COND 26AWG 1000=1000' |
4,852 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.224" (5.69mm) | Foil, Braid | - | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
3494C SL002MULTI-PAIR 8COND 28AWG SLATE |
4,552 |
|
Datasheet | - | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.265" (6.73mm) | Foil, Braid | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0350" (0.889mm) | Polypropylene (PP) | - |
