Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55021 NA199CABLE 2COND 22AWG NATURAL 1000' |
1,832 |
|
Datasheet | Xtra-Guard® 5 | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.160" (4.06mm) | - | 1000.0' (304.8m) | Natural | UL Style 20229 | Rip Cord | 300 V | -80°C ~ 200°C | - | 0.0270" (0.686mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
3498C SL002MULTI-PAIR 16COND 28AWG |
1,423 |
|
Datasheet | - | Spool | Active | Multi-Pair | 16 (8 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.326" (8.28mm) | Foil, Braid | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0350" (0.889mm) | Polypropylene (PP) | - |
|
|
M5352 SL001CABLE 50COND 22AWG SHLD |
2,964 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 50 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.501" (12.73mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M4702 SL002CABLE 20COND 18AWG SHLD |
1,554 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 20 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.485" (12.32mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
86018CY SL002CABLE 18COND 28AWG SHLD |
1,838 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 18 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.282" (7.16mm) | Foil, Braid | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5372 SL001CABLE 25COND 20AWG SHLD |
2,053 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 25 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.513" (13.03mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M9700360 BK001MULTI-PAIR 72COND 20AWG |
1,478 |
|
Datasheet | - | Spool | Active | Multi-Pair | 72 (36 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.963" (24.46mm) | Foil | 1000.0' (304.8m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0730" (1.854mm) | Poly-Vinyl Chloride (PVC) | - |
|
65207 SL002CABLE 7COND 12AWG SLATE |
2,806 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 12 AWG | 65/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.592" (15.04mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0860" (2.184mm) | Poly-Vinyl Chloride (PVC) | - |
|

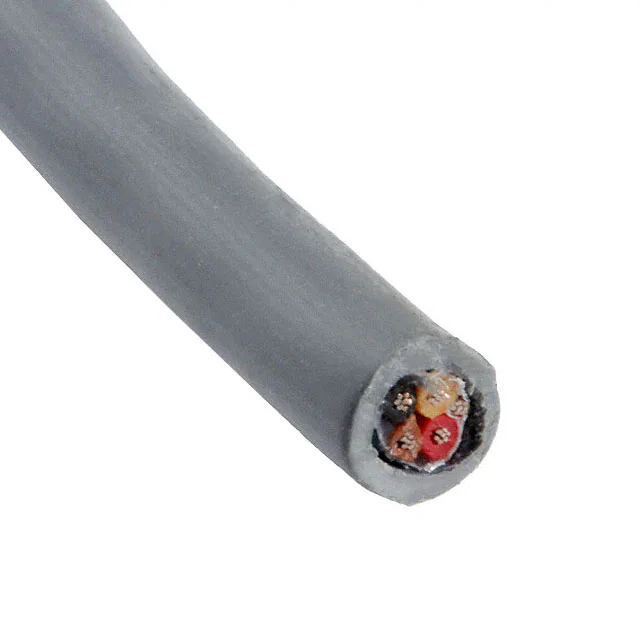

77143 SL001CABLE 4COND 14AWG SHLD |
1,534 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.305" (7.75mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
79121 SL001CABLE 2COND 14AWG SHLD |
3,794 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.294" (7.47mm) | Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
