Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M1765 SL002CABLE 5COND 16AWG SLATE SHLD |
4,525 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 16 AWG | 19/29 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.357" (9.06mm) | Braid | 500.0' (152.4m) | Slate | - | - | 600 V | -55°C ~ 105°C | - | 0.0330" (0.838mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25104 BK199CABLE 4COND 22AWG BLK SHLD 1000' |
4,083 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.217" (5.51mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M1123 SL199CABLE 3COND 20AWG SHLD 3000' |
2,622 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.246" (6.25mm) | Braid | 3000' (914.4m) | Slate | UL Style 2093 | - | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
M39152 SL001MULTI-PAIR 22COND 22AWG |
3,577 |
|
Datasheet | - | Spool | Active | Multi-Pair | 22 (11 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.563" (14.30mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
87105 BK199CABLE 5COND 22AWG BLACK 1000' |
1,595 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 22 AWG | 19/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.281" (7.14mm) | - | 1000.0' (304.8m) | Black | UL Style 20234 | - | 600 V | - | - | 0.0500" (1.270mm) | Thermoplastic Elastomer (TPE) | - |
|
77207 SL001CABLE 4COND 20AWG SHLD |
3,397 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.237" (6.02mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

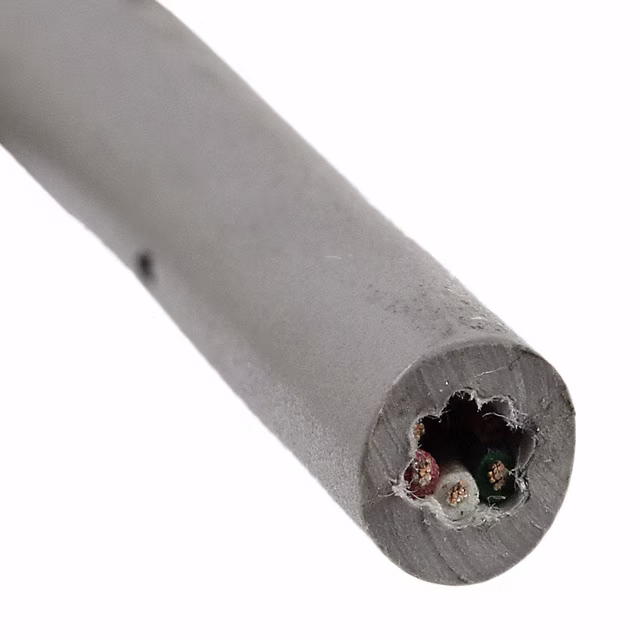

86207 SL005CABLE 7COND 24AWG SLATE |
1,711 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 24 AWG | 10/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.233" (5.92mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
862002 SL199CABLE 2COND 20AWG SLATE |
1,366 |
|
Datasheet | Xtra-Guard® Flex | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.204" (5.18mm) | - | - | Slate | UL Style 2661 | Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
F18012KW BK199CABLE 12COND 18AWG BLACK 1000' |
2,395 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 12 | 18 AWG | 41/34 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.515" (13.08mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
F18012LW BK199CABLE 12COND 18AWG BLACK 1000' |
4,881 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 12 | 18 AWG | 41/34 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.515" (13.08mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
