Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
58806 SL001MULTI-PAIR 12COND 24AWG |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.217" (5.51mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 150 V | -25°C ~ 125°C | - | 0.0110" (0.279mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
M1113 SL199CBL 3COND 22AWG SHLD FEET |
5,555 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.193" (4.90mm) | Braid | Enter Number of Feet in Order Quantity | Slate | UL Style 2093 | - | 300 V | -20°C ~ 75°C | - | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|
5405 SL002CABLE 5COND 22AWG SLATE 500' |
500 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 5 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.385" (9.78mm) | - | 500.0' (152.4m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
85005 BK002CABLE 5COND 20AWG BLACK |
1,000 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 20 AWG | 105/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.323" (8.20mm) | - | 500.0' (152.4m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|

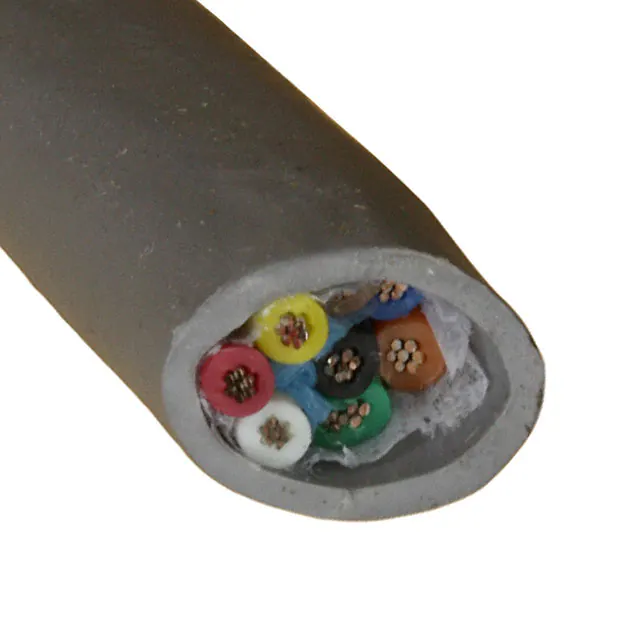

5058C SL002CABLE 8COND 20AWG SLATE |
500 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 8 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.302" (7.67mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25002 BK199CABLE 2COND 22AWG BLACK FEET |
1,317 |
|
Datasheet | Xtra-Guard® 2 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.168" (4.27mm) | - | Enter Number of Feet in Order Quantity | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
3246 SL001CABLE 2COND 16AWG SHLD |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.241" (6.12mm) | Braid | 1000.0' (304.8m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0230" (0.584mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
35462 BK199CBL 2COND 20AWG BLK SHLD FEET |
938 |
|
Datasheet | Xtra-Guard® 3 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Polyethylene (PE) | 0.211" (5.36mm) | Foil | Enter Number of Feet in Order Quantity | Black | - | Drain Wire, Rip Cord | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5580/2C SL005CABLE 2COND 22AWG SLATE SHLD |
1,000 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.234" (5.94mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2343 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
5056C SL002CABLE 6COND 20AWG SLATE |
500 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 6 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
