Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6310 SL002CABLE 30COND 24AWG SHLD |
500 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 30 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.366" (9.30mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
58632 SL001MULTI-PAIR 4COND 18AWG |
2,000 |
|
Datasheet | - | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 18 AWG | 7/0.0152" | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.247" (6.27mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 150 V | -55°C ~ 125°C | - | 0.0098" (0.250mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
862007 SL005CABLE 7COND 20AWG SLATE |
500 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.293" (7.44mm) | - | 100.0' (30.5m) | Slate | UL Style 2661 | Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|

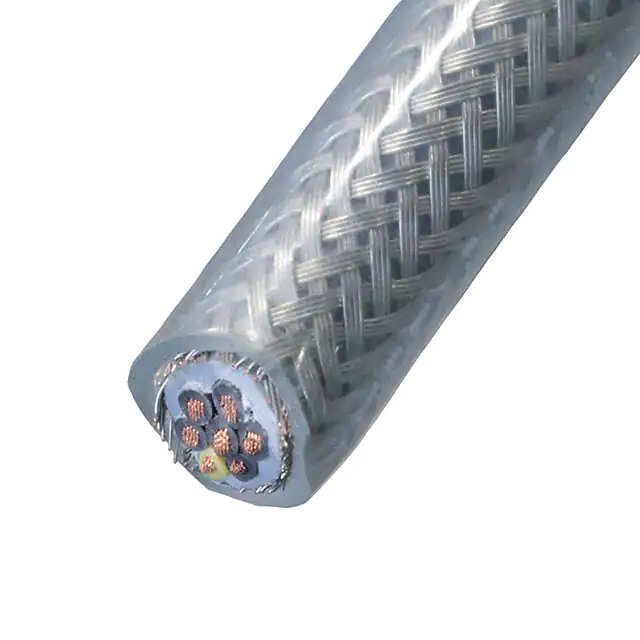

470075CY CL432CABLE 7COND 21AWG CLEAR SHLD |
1,500 |
|
Datasheet | Pro-Met® | Spool | Active | Multi-Conductor | 7 | 21 AWG | 20/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.371" (9.42mm) | Braid | 984.3' (300.0m) | Clear | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0374" (0.950mm) | Poly-Vinyl Chloride (PVC) | - |
|
901404CY SL001CABLE 4CON 14AWG SLATE SHLD FEET |
925 |
|
Datasheet | Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.418" (10.62mm) | Braid | Enter Number of Feet in Order Quantity | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
6056C SL005MULTI-PAIR 12COND 22AWG |
300 |
|
Datasheet | - | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.451" (11.46mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
470041CY CL432CABLE 4COND 17AWG CLEAR SHLD |
1,500 |
|
Datasheet | Pro-Met® | Spool | Active | Multi-Conductor | 4 | 17 AWG | 30/0.0079" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.364" (9.25mm) | Braid | 984.3' (300.0m) | Clear | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
470041CY GE432CABLE 4COND 17AWG GRAY SHLD |
1,200 |
|
Datasheet | Pro-Met® | Spool | Active | Multi-Conductor | 4 | 17 AWG | 30/0.0079" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.364" (9.25mm) | Braid | 984.3' (300.0m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
45093 BK199CABLE 3COND 24AWG BLK SHLD FEET |
760 |
|
Datasheet | Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.213" (5.41mm) | Foil | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
|
5198C SL010CABLE 8CON 22AWG SLATE SHLD FEET |
913 |
|
Datasheet | Xtra-Guard® 1 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.239" (6.07mm) | Foil | Enter Number of Feet in Order Quantity | Slate | - | Drain Wire, Oil Resistant, Rip Cord, UV Resistant | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
