Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5056C SL001CABLE 6COND 20AWG SLATE |
1,000 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 6 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

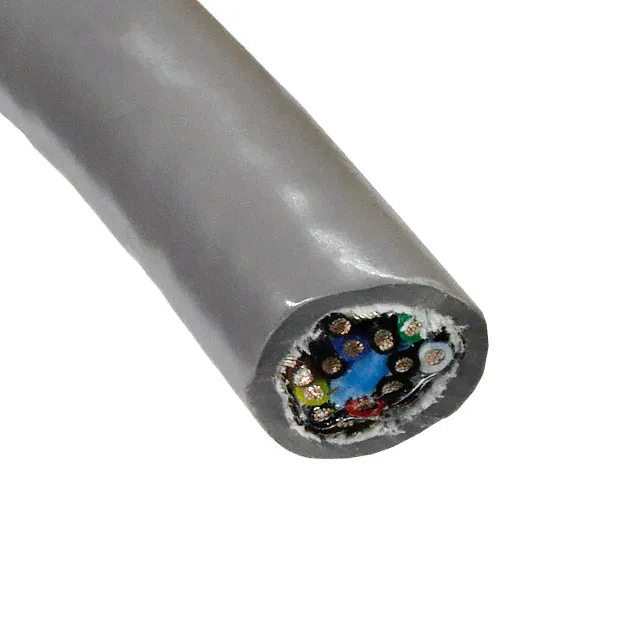

2216C SL002MULTI-PAIR 12COND 22AWG 500' |
500 |
|
Datasheet | - | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.315" (8.00mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 150 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
470047YY GE432CABLE 4COND 19AWG GRAY |
600 |
|
Datasheet | Pro-Met® | Spool | Active | Multi-Conductor | 4 | 19 AWG | 30/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.243" (6.17mm) | - | 984.3' (300.0m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0287" (0.730mm) | Poly-Vinyl Chloride (PVC) | - |
|
2473 SL001CABLE 2COND 12AWG SHLD |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 (1 Pair) | 12 AWG | 19/25 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.412" (10.46mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 600 V | -20°C ~ 60°C | Communication, Control | 0.0400" (1.016mm) | Polyethylene (PE) | - |
|
1712 SL002CABLE MIC 2COND 20AWG SLATE |
500 |
|
Datasheet | - | Spool | Active | Microphone | 2 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.221" (5.61mm) | Braid | 500.0' (152.4m) | Slate | - | - | 600 V | -20°C ~ 60°C | Communication, Control | 0.0300" (0.762mm) | Polyethylene (PE) | - |
|
652609 SL005CABLE 9COND 26AWG SLATE |
1,100 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 9 | 26 AWG | 7/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.344" (8.74mm) | - | 100.0' (30.5m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
6333 SL001CABLE 9COND 24AWG SHLD 1000' |
1,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.250" (6.35mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
76012 BK002CABLE CAT5E 8COND 24AWG BLACK |
500 |
|
Datasheet | Xtra-Guard® Cat5e Industrial Ethernet | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.325" (8.26mm) | Foil, Braid | 500.0' (152.4m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 105°C | Communication | 0.0350" (0.889mm) | Polypropylene (PP) | - |
|
65603 SL349CABLE 3COND 16AWG SLATE FEET |
1,631 |
|
Datasheet | Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | - | Enter Number of Feet in Order Quantity | Slate | UL Style 2587 | Oil Resistant | 600 V | - | Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
5052C SL324CABLE 2COND 20AWG SLATE FEET |
2,038 |
|
Datasheet | Xtra-Guard® 1 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.208" (5.28mm) | - | Enter Number of Feet in Order Quantity | Slate | - | Oil Resistant, Rip Cord, UV Resistant | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
