Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6347 SL002CABLE 15COND 22AWG SHLD |
500 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.320" (8.13mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
78054 SL005MULT-PAIR 8COND 28AWG SLATE 100' |
2,000 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.153" (3.89mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
6012L SL005MULTI-PAIR 12COND 22AWG |
800 |
|
Datasheet | - | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.386" (9.80mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2493 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|

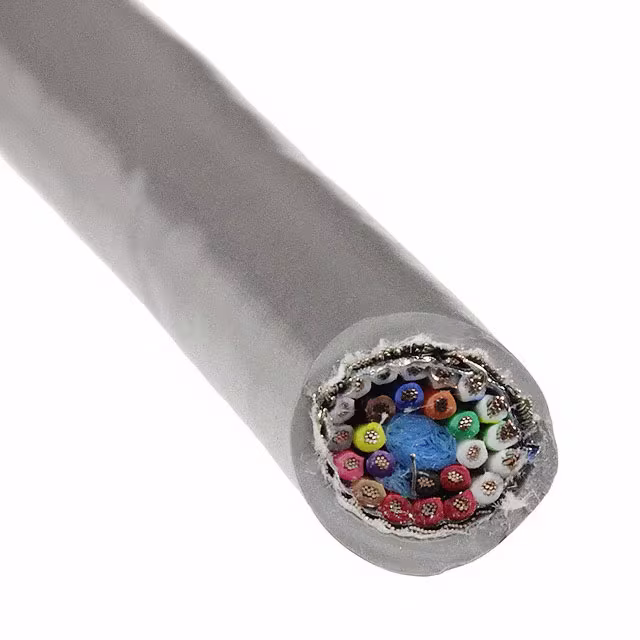

M39034 SL005CABLE 25COND 24AWG SHLD |
700 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 25 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.335" (8.51mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

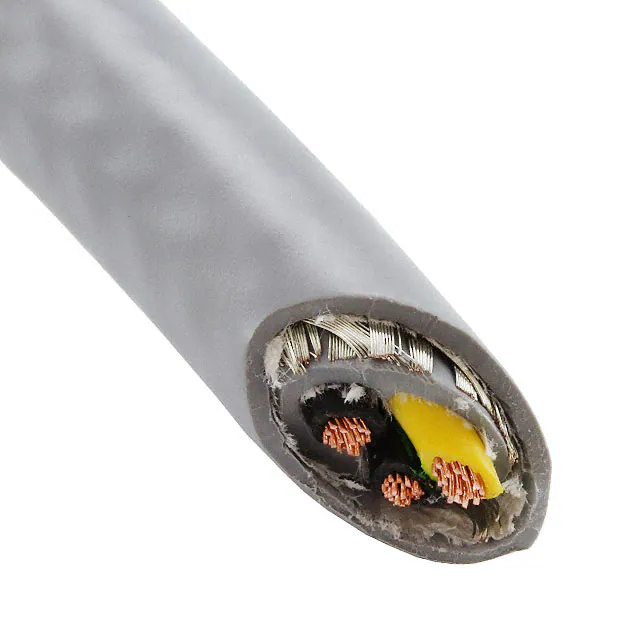

80133 SL005CABLE 3COND 18AWG SLATE SHLD |
200 |
|
Datasheet | EcoFlex® PUR | Spool | Active | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Tinned | Polyurethane (PU) | 0.232" (5.89mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|
86305CY SL005CABLE 5CON 22AWG SLATE SHLD |
1,500 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.250" (6.35mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | Communication, Control | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
275002004 NA005CABLE 4COND 20AWG NATURAL SHLD |
2,600 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 20 AWG | 19/32 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.187" (4.75mm) | Braid | 100.0' (30.5m) | Natural | - | - | 600 V | -55°C ~ 150°C | - | 0.0098" (0.250mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
5364C SL265CABLE 4CON 16AWG SLATE SHLD FEET |
1,493 |
|
Datasheet | Xtra-Guard® 1 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | Foil | Enter Number of Feet in Order Quantity | Slate | - | Drain Wire, Oil Resistant, Rip Cord, UV Resistant | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13149 SL005MULTI-PAIR 18COND 20AWG |
500 |
|
Datasheet | - | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.522" (13.26mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0470" (1.194mm) | Polyethylene (PE) | - |
|
25098 BK005CABLE 8COND 24AWG BLACK SHLD |
300 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.219" (5.56mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
