Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

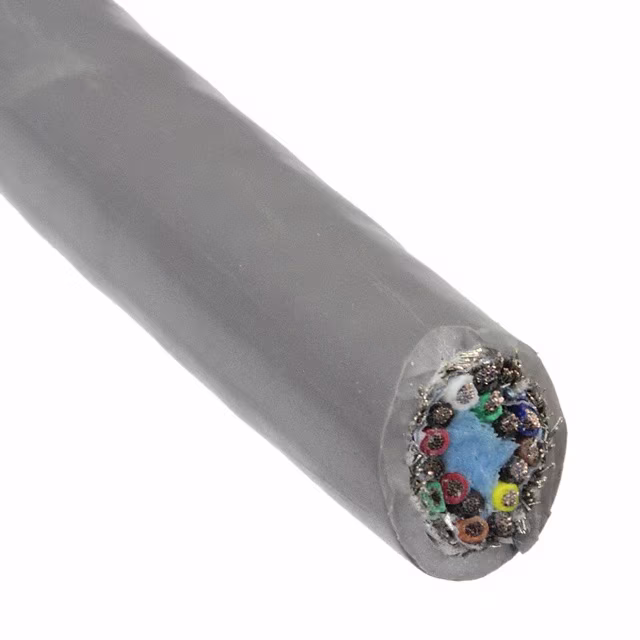

86708CY SL001MULTI-PAIR 16COND 22AWG 1000' |
4,253 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Pair | 16 (8 Pair Twisted) | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.443" (11.25mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
5020/20C SL001CABLE 20COND 24AWG SLATE 1000' |
1,834 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 20 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5549 SL005CABLE 9CON 14AWG SLATE SHLD 100' |
3,905 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 9 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.668" (16.96mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2501 | Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
58809 SL002MULTI-PAIR 18COND 24AWG 500' |
3,410 |
|
Datasheet | - | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.256" (6.50mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 150 V | -25°C ~ 125°C | - | 0.0110" (0.279mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
2254/6 SL001CABLE 6COND 22AWG SHLD 1000' |
2,549 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.243" (6.17mm) | Spiral | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
1747/4C SL002CABLE 4CON 18AWG SLATE SHLD 500' |
3,810 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.256" (6.50mm) | Braid | 500.0' (152.4m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
1181/40C SL002CABLE 40COND 22AWG SLATE 500' |
3,014 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 40 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.429" (10.90mm) | - | 500.0' (152.4m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5430/5 SL001CABLE 5COND 18AWG SHLD 1000' |
1,711 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 5 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.436" (11.07mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
6335 SL001CABLE 15COND 24AWG SHLD 1000' |
3,596 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 15 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5532 SL001CABLE 2COND 16AWG SHLD 1000' |
1,516 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.404" (10.26mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2501 | Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
