Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
65602 SL011CABLE 2COND 16AWG SLATE FEET |
796 |
|
Datasheet | Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.284" (7.21mm) | - | Enter Number of Feet in Order Quantity | Slate | UL Style 2587 | Oil Resistant | 600 V | - | Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
652407 SL005CABLE 7COND 24AWG SLATE |
400 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 24 AWG | 7/32 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.288" (7.32mm) | - | 100.0' (30.5m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
78174 SL001MULTI-PAIR 8COND 24AWG |
8,000 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.193" (4.90mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
5006C SL324CABLE 6COND 22AWG SLATE FEET |
1,875 |
|
Datasheet | Xtra-Guard® 1 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.219" (5.56mm) | - | Enter Number of Feet in Order Quantity | Slate | - | Oil Resistant, Rip Cord, UV Resistant | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M4608 SL005CABLE 10COND 24AWG SHLD |
300 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.247" (6.27mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
6456 BK002MULTI-PAIR 6COND 22AWG BLACK |
500 |
|
Datasheet | - | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.414" (10.52mm) | Foil, Braid | 500.0' (152.4m) | Black | - | Drain Wire | 300 V | -20°C ~ 60°C | - | 0.0530" (1.346mm) | High Density Polyethylene (HDPE) | - |
|

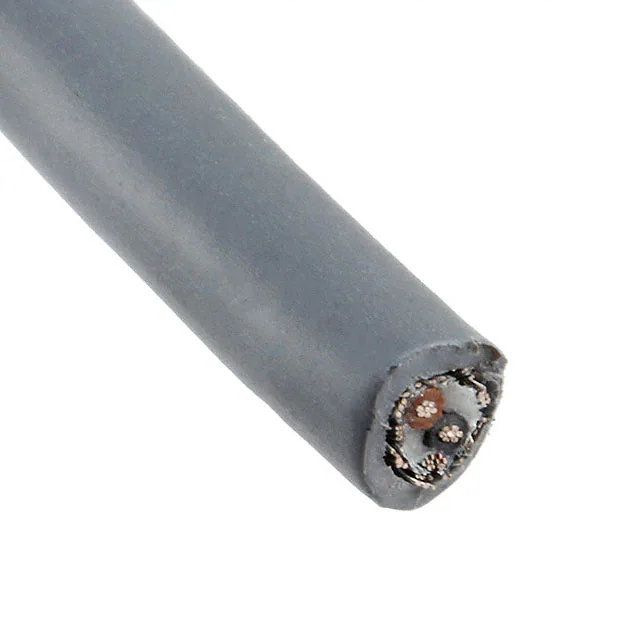

5112C SL001CABLE 2COND 24AWG SHLD |
1,000 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.184" (4.67mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

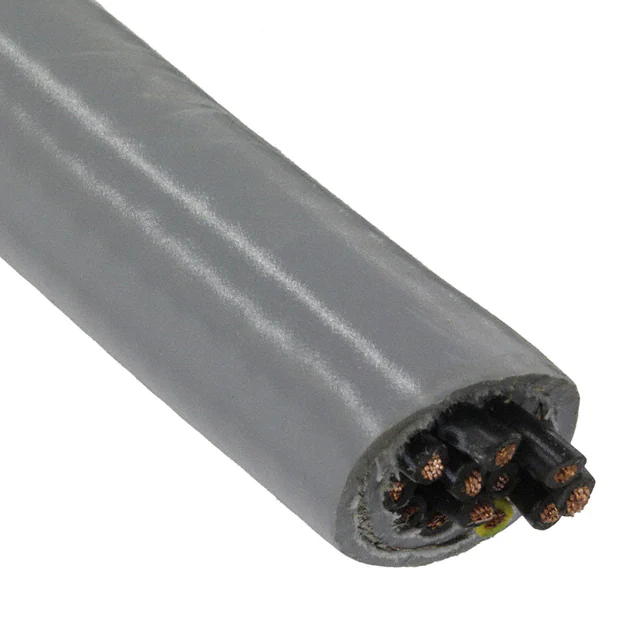

65812 SL001CABLE 12COND 18AWG SLATE |
2,000 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 12 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.470" (11.94mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M39029 SL199CBL 8COND 24AWG SHLD FEET |
975 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.214" (5.44mm) | Foil | Enter Number of Feet in Order Quantity | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M4664 SL005CABLE 6COND 20AWG SLATE SHLD |
200 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.282" (7.16mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
