Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
86187CY SL005CABLE 7CON 18AWG SLATE SHLD 100' |
1,618 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.323" (8.20mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2661 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|

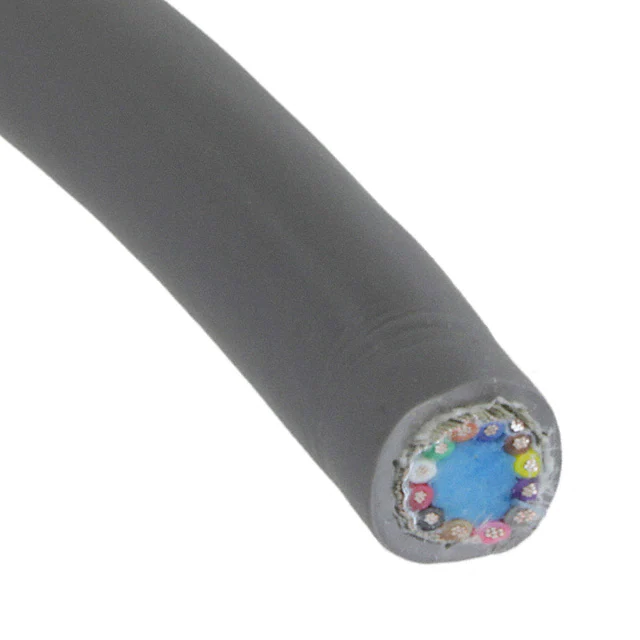

86112CY SL005CABLE 12COND 26AWG SHLD 100' |
3,674 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 12 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.303" (7.70mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|

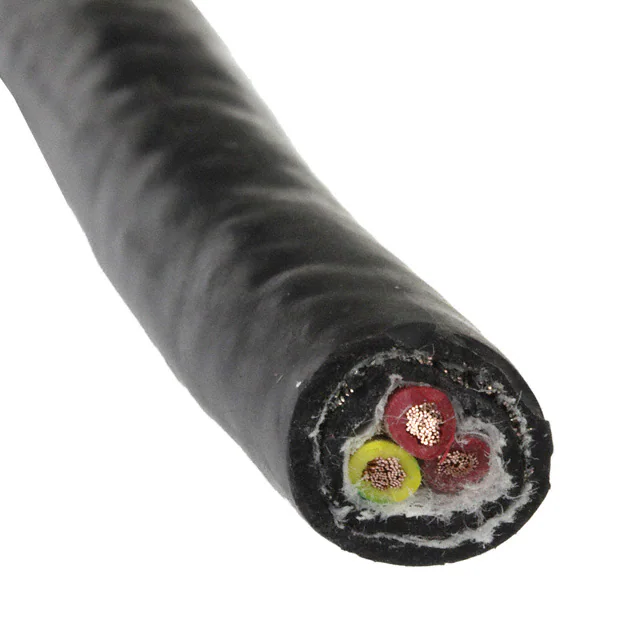

85803CY BK005CABLE 3COND 18AWG BLK SHLD 100' |
1,536 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 18 AWG | 105/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.376" (9.55mm) | Braid | 100.0' (30.5m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
18RC2S06 NA005CABLE 2COND 18AWG NAT SHLD 100' |
1,408 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 18 AWG | 19/30 | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.182" (4.62mm) | Braid | 100.0' (30.5m) | Natural | - | - | 600 V | -55°C ~ 200°C | - | 0.0098" (0.250mm) | Polytetrafluoroethylene (PTFE) | - |
|
882208 SL002CABLE 8COND 22AWG SLATE 500' |
3,661 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | - | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5424 SL005CABLE 4COND 18AWG SLATE 100' |
4,695 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.399" (10.13mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
6463 VI002CABLE 2COND 22AWG VIO SHLD 500' |
2,078 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.315" (8.00mm) | Foil, Braid | 500.0' (152.4m) | Violet | - | Drain Wire, Rip Cord | 300 V | -30°C ~ 75°C | - | 0.0420" (1.067mm) | High Density Polyethylene (HDPE) | - |
|
5450/2 SL005CABLE 2CON 14AWG SLATE SHLD 100' |
2,590 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.410" (10.41mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
65104 SL005CABLE 4COND 10AWG SLATE 100' |
3,492 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 10 AWG | 105/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.568" (14.43mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0840" (2.134mm) | Poly-Vinyl Chloride (PVC) | - |
|
78019 SL005MULTI-PAIR 18COND 26AWG 100' |
2,375 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 26 AWG | 19/38 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.237" (6.02mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
