Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
470035YY GE033CABLE 3COND 21AWG GRAY 100M |
3,531 |
|
Datasheet | Pro-Met® | Spool | Active | Multi-Conductor | 3 | 21 AWG | 20/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.200" (5.08mm) | - | 328.1' (100.0m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0260" (0.660mm) | Poly-Vinyl Chloride (PVC) | - |
|
6083C SL005MULTI-PAIR 6CON 24AWG SLATE 100' |
4,877 |
|
Datasheet | - | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | High Density Polyethylene (HDPE) | - |
|
M1114 SL005CABLE 4CON 22AWG SLATE SHLD 100' |
4,876 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.193" (4.90mm) | Braid | 100.0' (30.5m) | Slate | UL Style 2094 | - | 300 V | -20°C ~ 75°C | - | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|
470021CY CL321CABLE 2COND 17AWG CLEAR SHLD 50M |
1,483 |
|
Datasheet | Pro-Met® | Spool | Active | Multi-Conductor | 2 | 17 AWG | 30/0.0079" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.313" (7.95mm) | Braid | 164.0' (50.0m) | Clear | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0335" (0.851mm) | Poly-Vinyl Chloride (PVC) | - |
|
902004CY SL005CABLE 4CON 20AWG SLATE SHLD 100' |
3,250 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 20 AWG | 10/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.318" (8.08mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
6462 VI005CABLE 2COND 22AWG VIO SHLD 100' |
2,932 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.315" (8.00mm) | Foil, Braid | 100.0' (30.5m) | Violet | UL Style 20201 | Drain Wire, Rip Cord | 300 V | -30°C ~ 75°C | - | 0.0420" (1.067mm) | Polyethylene (PE) | - |
|

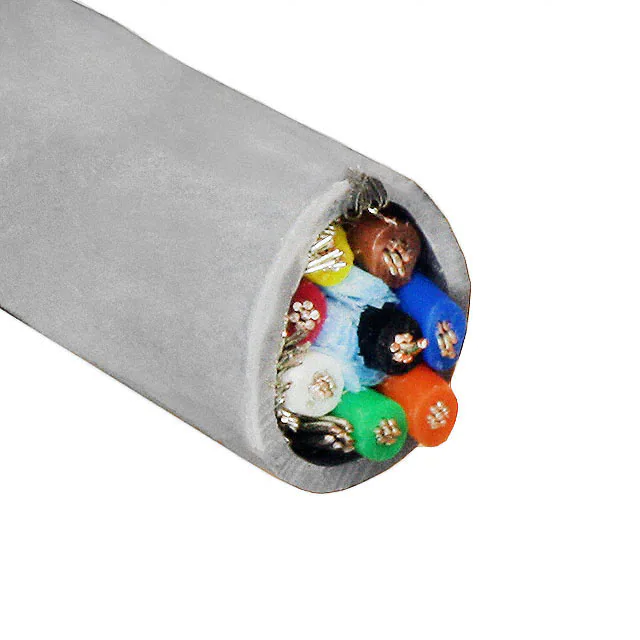

M2408 SL005CABLE 8CON 28AWG SLATE SHLD 100' |
4,582 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.206" (5.23mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M5361 SL005CABLE 3CON 20AWG SLATE SHLD 100' |
1,603 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.241" (6.12mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
65402 SL005CABLE 2COND 14AWG SLATE 100' |
1,036 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0440" (1.118mm) | Poly-Vinyl Chloride (PVC) | - |
|
25013 BK005CABLE 3COND 24AWG BLACK 100' |
2,510 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.163" (4.14mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
