Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
65012 SL005CABLE 12COND 20AWG SLATE 100' |
100 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 12 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.433" (11.00mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
1743C SL005CABLE 4COND 20AWG SLATE SHLD |
100 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.234" (5.94mm) | Braid | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
6387 SL005MULTI-PAIR 18COND 24AWG |
100 |
|
Datasheet | - | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.368" (9.35mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|

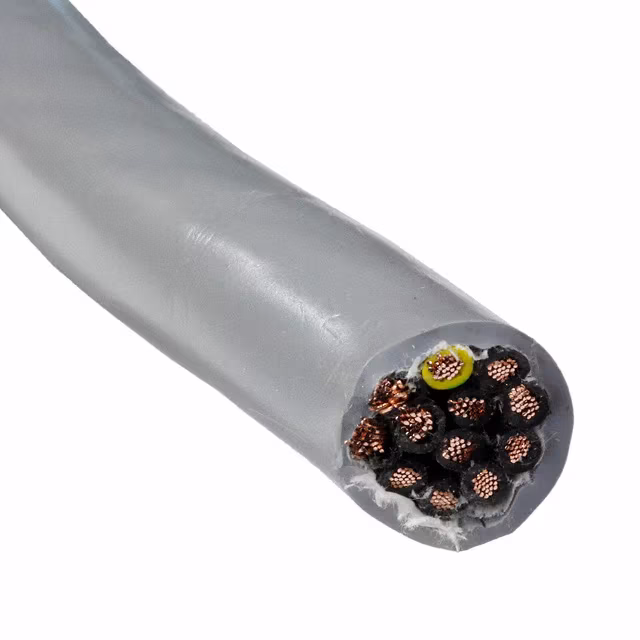

65612 SL005CABLE 12COND 16AWG SLATE |
100 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 12 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.536" (13.61mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0490" (1.245mm) | Poly-Vinyl Chloride (PVC) | - |
|
1746C SL005CABLE 2COND 18AWG SLATE SHLD |
100 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.223" (5.66mm) | Braid | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
6036C SL005MULTI-PAIR 12COND 20AWG |
100 |
|
Datasheet | - | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.472" (11.99mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2493 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0470" (1.194mm) | Polypropylene (PP) | - |
|
85604 BK005CABLE 4COND 16AWG BLACK |
100 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 16 AWG | 105/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.362" (9.20mm) | - | 100.0' (30.5m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
5025C SL005MULTI-PAIR 10COND 22AWG |
100 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.291" (7.39mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
79245 SL005CABLE 3COND 22AWG SLATE SHLD |
100 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.216" (5.49mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
470315CY GE321CABLE 3COND 15AWG GRAY SHLD |
1,698 |
|
Datasheet | Pro-Met® | Spool | Active | Multi-Conductor | 3 | 15 AWG | 28/0.0098" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.365" (9.27mm) | Braid | 164.0' (50.0m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0374" (0.950mm) | Poly-Vinyl Chloride (PVC) | - |
