Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M3190 SL005MULTI-PAIR 76COND 22AWG 100' |
4,231 |
|
Datasheet | - | Spool | Active | Multi-Pair | 76 (38 Pair Twisted) | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.610" (15.49mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0450" (1.143mm) | Polypropylene (PP) | - |
|
80028 SL005CABLE 20COND 20AWG SLATE 100' |
4,470 |
|
Datasheet | EcoFlex® PUR | Spool | Active | Multi-Conductor | 20 | 20 AWG | 26/34 | Copper, Tinned | Polyurethane (PU) | 0.361" (9.17mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|
78341 SL005CABLE 15COND 22AWG SHLD 100' |
4,212 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Conductor | 15 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.276" (7.01mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

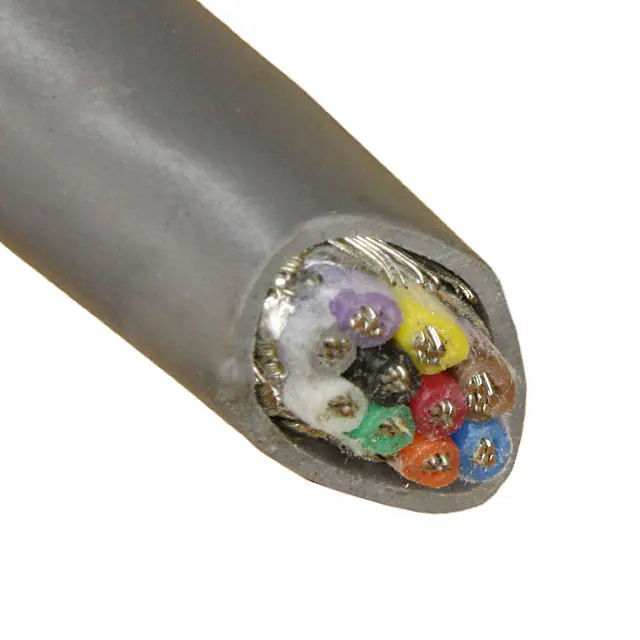

5120C SL005CABLE 10COND 24AWG SHLD 100' |
1,252 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5010/15C SL005CABLE 15COND 22AWG SLATE 100' |
4,158 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.299" (7.60mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
2442C SL002CABLE 2CON 14AWG SLATE SHLD 500' |
4,882 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 150 V | -20°C ~ 75°C | Communication, Control | 0.0300" (0.762mm) | Polyethylene (PE) | - |
|
2254 SL001CABLE 2COND 22AWG SHLD 1000' |
1,988 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.177" (4.50mm) | Spiral | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
3221 SL002CABLE 2CON 22AWG SLATE SHLD 500' |
4,902 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.173" (4.39mm) | Braid | 500.0' (152.4m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0160" (0.406mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2444C SL005CABLE 2CON 12AWG SLATE SHLD 100' |
2,052 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 12 AWG | 65/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0300" (0.762mm) | Polyethylene (PE) | - |
|
5440/3 SL005CABLE 3CON 16AWG SLATE SHLD 100' |
3,986 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.399" (10.13mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
