Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6033C SL005MULTI-PAIR 6CON 20AWG SLATE 100' |
1,161 |
|
Datasheet | - | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.349" (8.86mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2493 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0470" (1.194mm) | Polypropylene (PP) | - |
|
78033 SL005CABLE 3COND 22AWG SLATE 100' |
4,944 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.133" (3.38mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
M9520010 BK002CABLE 2COND 20AWG BLK SHLD 500' |
1,272 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.219" (5.56mm) | Foil | 500.0' (152.4m) | Black | - | Drain Wire, UV Resistant | 300 V | -20°C ~ 105°C | Communication, Control | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
5476L SL005MULTI-PAIR 12COND 24AWG 100' |
3,486 |
|
Datasheet | - | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.299" (7.60mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
3221 SL005CABLE 2CON 22AWG SLATE SHLD 100' |
2,112 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.173" (4.39mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0160" (0.406mm) | Poly-Vinyl Chloride (PVC) | - |
|
65805 SL005CABLE 5COND 18AWG SLATE 100' |
2,280 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.326" (8.28mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
86203 SL005CABLE 3COND 24AWG SLATE 100' |
3,549 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 24 AWG | 10/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.179" (4.55mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
1215C SL005CABLE 5CON 24AWG SLATE SHLD 100' |
2,480 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.187" (4.75mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

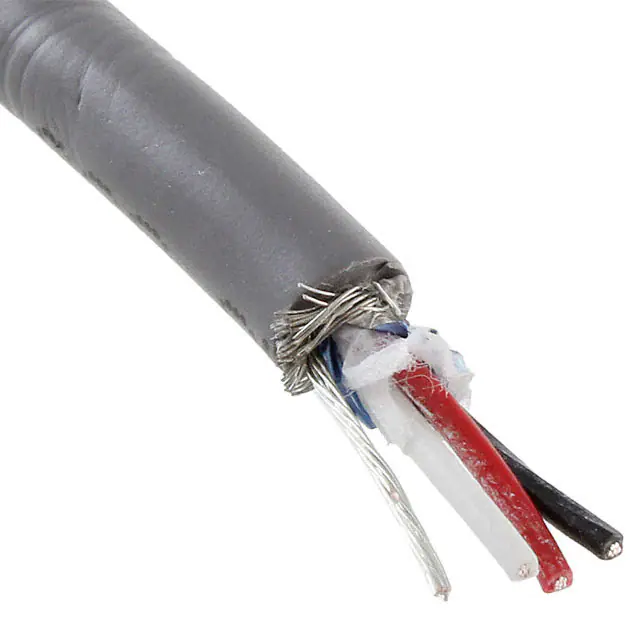

86103CY SL005CABLE 3CON 26AWG SLATE SHLD 100' |
4,508 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.188" (4.78mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
M4665 SL005CABLE 8CON 20AWG SLATE SHLD 100' |
3,189 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.304" (7.72mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
