Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6454 BK005MULTI-PAIR 3COND 22AWG BLK 100' |
4,971 |
|
Datasheet | - | Spool | Active | Multi-Pair | 3 (1.5 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | Foil, Braid | 100.0' (30.5m) | Black | - | Drain Wire | 300 V | -20°C ~ 60°C | - | 0.0420" (1.067mm) | High Density Polyethylene (HDPE) | - |
|
6084C SL005MULTI-PAIR 8CON 24AWG SLATE 100' |
2,672 |
|
Datasheet | - | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.254" (6.45mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | High Density Polyethylene (HDPE) | - |
|
M13196 SL005MULTI-PAIR 14COND 24AWG 100' |
2,826 |
|
Datasheet | - | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.289" (7.34mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M39032 SL005CABLE 15COND 24AWG SHLD 100' |
4,135 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 15 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.273" (6.93mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M33845 BK005CABLE 2COND 14AWG BLK SHLD 100' |
4,773 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.331" (8.41mm) | Foil | 100.0' (30.5m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
65003 SL005CABLE 3COND 20AWG SLATE 100' |
2,136 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.251" (6.38mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
65803 SL005CABLE 3COND 18AWG SLATE 100' |
3,262 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
6340 SL005CABLE 4CON 22AWG SLATE SHLD 100' |
4,704 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.211" (5.36mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M39250 SL005MULTI-PAIR 6CON 24AWG SLATE 100' |
4,796 |
|
Datasheet | - | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.340" (8.64mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2493 | Drain Wire, Rip Cord | 300 V | -20°C ~ 90°C | - | 0.0480" (1.219mm) | Foam Polypropylene (FPP) | - |
|

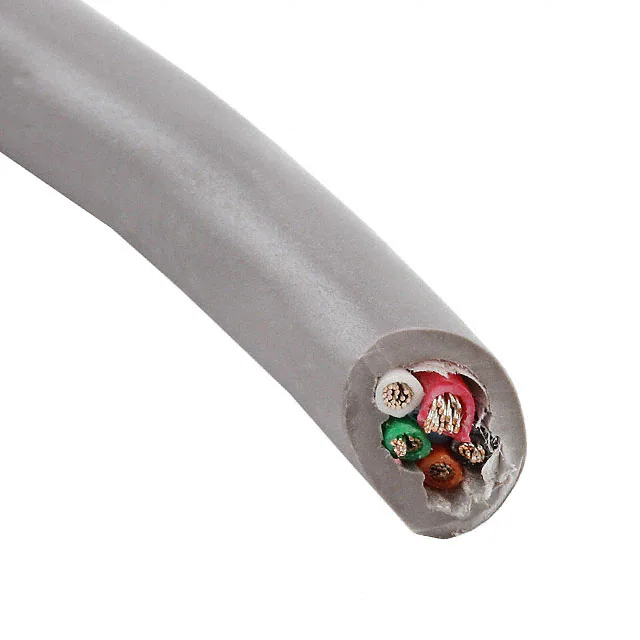

M2405 SL005CABLE 5CON 28AWG SLATE SHLD 100' |
3,409 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
