Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25008 BK005CABLE 8COND 22AWG BLACK 100' |
3,685 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.235" (5.97mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25018 BK005CABLE 8COND 24AWG BLACK 100' |
2,358 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.215" (5.46mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25020 BK005CABLE 10COND 24AWG BLACK 100' |
3,736 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.244" (6.20mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

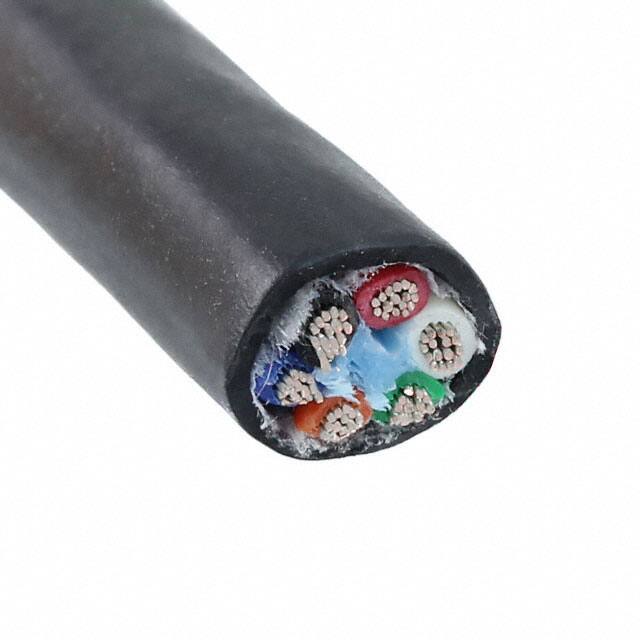

25056 BK005CABLE 6COND 20AWG BLACK 100' |
2,605 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 6 | 20 AWG | 7/28 | Copper, Tinned | Polyurethane (PU) | 0.280" (7.11mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25060 BK005CABLE 10COND 20AWG BLACK 100' |
4,817 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 10 | 20 AWG | 7/28 | Copper, Tinned | Polyurethane (PU) | 0.348" (8.84mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25068 BK005CABLE 8COND 18AWG BLACK 100' |
3,274 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 8 | 18 AWG | 16/30 | Copper, Tinned | Polyurethane (PU) | 0.332" (8.43mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25074 BK005CABLE 4COND 16AWG BLACK 100' |
4,916 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 4 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.288" (7.32mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25076 BK005CABLE 6COND 16AWG BLACK 100' |
1,761 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 6 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.343" (8.71mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25078 BK005CABLE 8COND 16AWG BLACK 100' |
1,057 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 8 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.372" (9.45mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25103 BK005CABLE 3COND 22AWG BLK SHLD 100' |
3,002 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.204" (5.18mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
