Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55192 NA001CABLE 2COND 22AWG NATURAL 1000' |
3,285 |
|
Datasheet | Xtra-Guard® 5 | Spool | Obsolete | Multi-Conductor | 2 | 22 AWG | 7/28 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.166" (4.22mm) | Foil | 1000.0' (304.8m) | Natural | UL Style 20229 | Drain Wire, Rip Cord | 300 V | -80°C ~ 200°C | - | 0.0270" (0.686mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
5480/50C SL002MULTI-PAIR 100COND 24AWG |
2,673 |
|
Datasheet | - | Spool | Active | Multi-Pair | 100 (50 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.699" (17.75mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
3312 SL001CABLE 12COND 28AWG SHLD 1000' |
2,668 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 12 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.206" (5.23mm) | Braid | 1000.0' (304.8m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0180" (0.457mm) | Poly-Vinyl Chloride (PVC) | - |
|
3470/50C SL001CABLE 50COND 28AWG SHLD 1000' |
1,251 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 50 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.397" (10.08mm) | Foil, Braid | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
5100/50C SL001CABLE 50COND 24AWG SHLD 1000' |
4,933 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 50 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.433" (11.00mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
3315 SL001CABLE 15COND 28AWG SHLD 1000' |
3,658 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 15 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | Braid | 1000.0' (304.8m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|

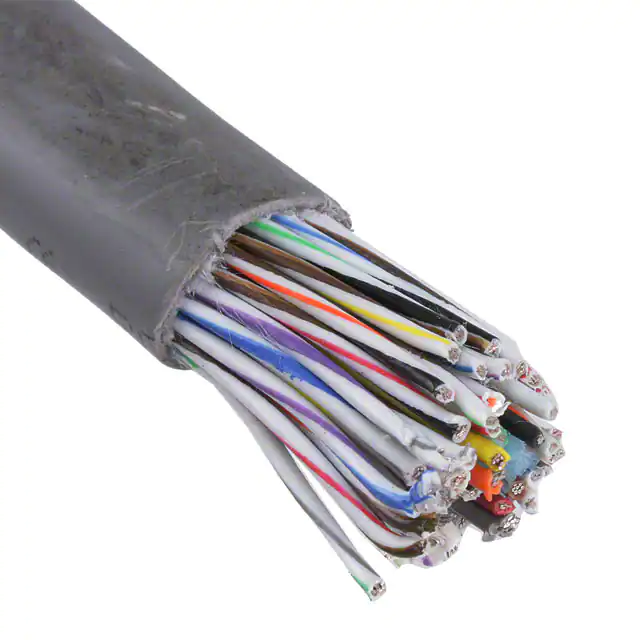

5010/60C SL002CABLE 60COND 22AWG SLATE |
1,908 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 60 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.518" (13.16mm) | - | 500.0' (152.4m) | Slate | UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5314C SL001CABLE 19COND 22AWG SHLD |
3,451 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 19 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.408" (10.36mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
45390/30 BK001CABLE 30 COND 18AWG BLACK 1000' |
3,496 |
|
Datasheet | Xtra-Guard® 4 | Spool | Obsolete | Multi-Conductor | 30 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.645" (16.38mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0650" (1.651mm) | Thermoplastic Elastomer (TPE) | - |
|
|
5206C SL001CABLE 37COND 24AWG SLATE |
4,380 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 37 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.438" (11.13mm) | - | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
