Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2410 SL002CABLE 10COND 28AWG SHLD 500' |
3,195 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
PFM1203 WH001CABLE 3COND 12AWG WHITE 1000' |
3,174 |
|
Datasheet | - | Spool | Obsolete | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.541" (13.74mm) | - | 1000.0' (304.8m) | White | - | - | 600 V | -20°C ~ 105°C | Marine | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M3821 BK002CABLE 25COND 18AWG BLACK 500' |
4,215 |
|
Datasheet | - | Spool | Obsolete | Multi-Conductor | 25 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.657" (16.69mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
45279/15 BK005MULTI-PAIR 30COND 24AWG BLK 100' |
2,555 |
|
Datasheet | Xtra-Guard® 4 | Spool | Obsolete | Multi-Pair | 30 (15 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.540" (13.72mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
|
|
77048 SL001CABLE 3COND 26AWG SLATE 1000' |
4,849 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 3 | 26 AWG | 7/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.152" (3.86mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21915 | Biological Compatibility, Rip Cord | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
7616/4 BK001CABLE 4COND 16AWG BLK SHLD 1000' |
2,386 |
|
Datasheet | - | Spool | Obsolete | Multi-Conductor | 4 | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.334" (8.48mm) | Foil | 1000.0' (304.8m) | Black | - | Drain Wire | 600 V | -20°C ~ 90°C | Communication, Control | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
M1124 SL002CABLE 4CON 20AWG SLATE SHLD 500' |
4,376 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.264" (6.71mm) | Braid | 500.0' (152.4m) | Slate | UL Style 2094 | - | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|

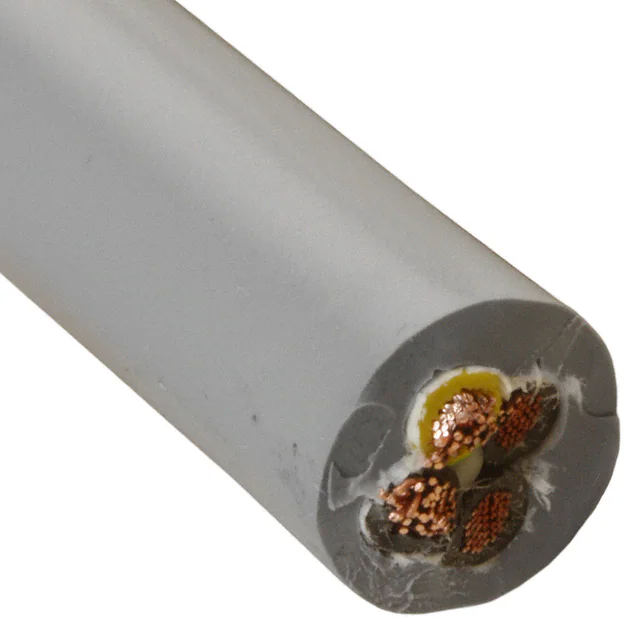

65404 SL002CABLE 4COND 14AWG SLATE |
3,102 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.404" (10.26mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0550" (1.397mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
PDM1002 WH001CABLE 2COND 10AWG WHITE 1000' |
3,024 |
|
Datasheet | - | Spool | Obsolete | Multi-Conductor | 2 | 10 AWG | 105/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.434" (11.02mm) | - | 1000.0' (304.8m) | White | - | - | 600 V | -20°C ~ 105°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M1144 SL002CABLE 4CON 18AWG SLATE SHLD 500' |
1,817 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.286" (7.26mm) | Braid | 500.0' (152.4m) | Slate | UL Style 2094 | - | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
