Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1295C SL001CABLE 5COND 22AWG SHLD 1000' |
1,521 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.204" (5.18mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5293C SL005MULTI-PAIR 6CON 20AWG SLATE 100' |
3,726 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.344" (8.74mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
78022 SL001CABLE 2COND 24AWG SLATE 1000' |
2,415 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.112" (2.84mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
5694 SL005MULTI-PAIR 12COND 26AWG 100' |
1,595 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.265" (6.73mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
6397 SL005MULTI-PAIR 26COND 28AWG 100' |
1,724 |
|
Datasheet | - | Spool | Active | Multi-Pair | 26 (13 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.341" (8.66mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2960 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
58116 SL002CABLE 6CON 22AWG SLATE SHLD 500' |
1,066 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.172" (4.37mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -5°C ~ 75°C | - | 0.0154" (0.390mm) | Poly-Vinyl Chloride (PVC) | - |
|

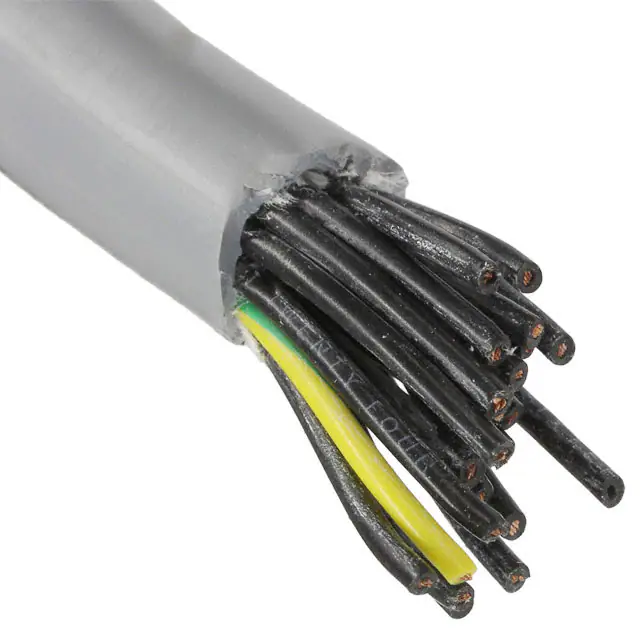

65025 SL005CABLE 25COND 20AWG SLATE 100' |
1,534 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 25 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.615" (15.62mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0550" (1.397mm) | Poly-Vinyl Chloride (PVC) | - |
|
5443 SL005CABLE 3COND 14AWG SLATE 100' |
2,840 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.428" (10.87mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
78102 SL001CABLE 2COND 28AWG SHLD 1000' |
1,124 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Conductor | 2 | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.098" (2.48mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
2422C SL001CABLE 2COND 18AWG SHLD 1000' |
3,889 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.202" (5.13mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - |
