Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5110/80C SL001CABLE 80COND 22AWG SHLD |
4,575 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 80 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.665" (16.89mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5129/19C BK199MULTI-PAIR 38COND 22AWG 1000' |
3,222 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 38 (19 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.507" (12.88mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5129/19C SL199MULTI-PAIR 54COND 22AWG 1000' |
1,383 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 54 (27 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.507" (12.88mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5180/25C SL002CABLE 25COND 16AWG SHLD |
4,249 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 25 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.690" (17.53mm) | Foil, Braid | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|

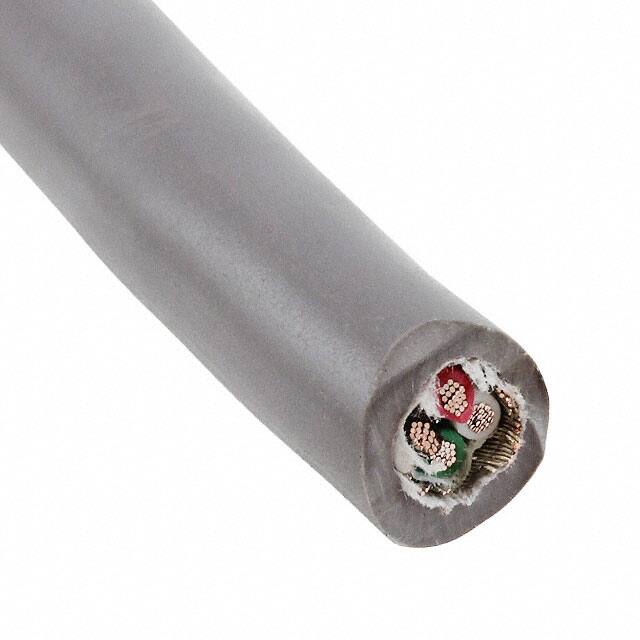

79237 SL005CABLE 4COND 10AWG SLATE SHLD |
2,747 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 4 | 10 AWG | 105/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.457" (11.61mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
2819/3 WH005CABLE 3CON 18AWG WHITE SHLD |
4,438 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 18 AWG | 19/30 | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.206" (5.23mm) | Braid | 100.0' (30.5m) | White | - | - | 600 V | -55°C ~ 200°C | Communication, Control | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
861803 SL005CABLE 3COND 18AWG SLATE 10' |
4,952 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.220" (5.59mm) | - | 10.00' (3.05m) | Slate | UL Style 2661 | Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5429/25 SL005CABLE 25COND 18AWG SLATE |
4,363 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 25 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.796" (20.22mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
PDM1802 WH005CABLE 2COND 18AWG WHITE 100' |
1,344 |
|
Datasheet | - | Spool | Obsolete | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | - | 100.0' (30.5m) | White | - | - | 600 V | -20°C ~ 105°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5390/30C BK199CABLE 30 COND 18AWG BLACK 1000' |
1,265 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 30 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.621" (15.77mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
