Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5519/12 SL005CABLE 12COND 20AWG SHLD |
1,947 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 12 | 20 AWG | 10/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.582" (14.78mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2501 | Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5129/11C BK199MULTI-PAIR 22COND 22AWG 1000' |
2,289 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 22 (11 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.424" (10.77mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5129/11C SL199MULT-PR 22COND 22AWG 1000=1000' |
4,602 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Pair | 22 (11 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.424" (10.77mm) | Foil, Braid | - | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55119 NA199CABLE 9COND 24AWG NATURAL 1000' |
3,144 |
|
Datasheet | Xtra-Guard® 5 | Spool | Active | Multi-Conductor | 9 | 24 AWG | 7/32 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.248" (6.30mm) | Foil, Braid | 1000.0' (304.8m) | Natural | UL Style 20229 | Drain Wire, Rip Cord | 300 V | -80°C ~ 200°C | - | 0.0270" (0.686mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
5223C SL005CABLE 15COND 20AWG SLATE |
4,915 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 15 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.398" (10.11mm) | - | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
45178 BK199CABLE 8COND 16AWG BLK SHLD 1000' |
2,144 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 8 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.446" (11.33mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45178 SL199CABLE 8COND 16AWG SHLD 1000' |
2,974 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 8 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.446" (11.33mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
79123 SL199CBL 4COND 14AWG SHLD 1000=1000' |
3,276 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.335" (8.51mm) | Braid | - | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

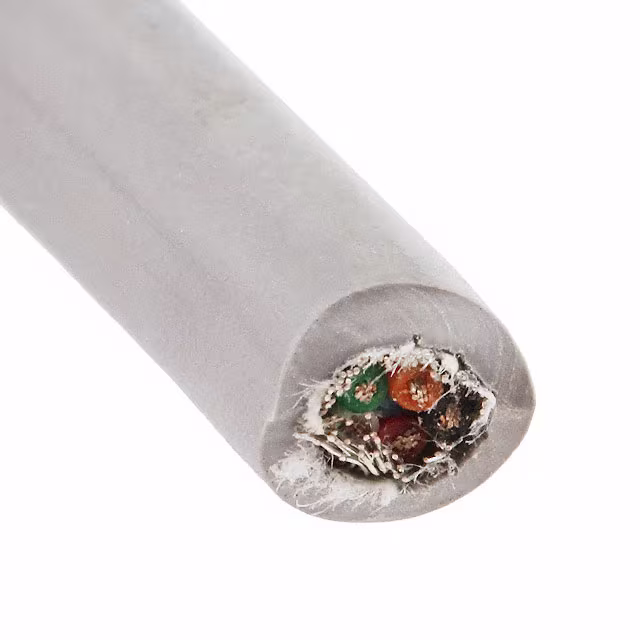

79124 SL005CABLE 5CON 14AWG SLATE SHLD |
1,062 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 5 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.363" (9.22mm) | Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
M8746360 BK005MULTI-PAIR 72COND 16AWG BLACK |
2,483 |
|
Datasheet | - | Spool | Active | Multi-Pair | 72 (36 Pair Twisted) | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 1.506" (38.25mm) | Foil | 100.0' (30.5m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0850" (2.159mm) | Poly-Vinyl Chloride (PVC) | - |
