Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5599/7C SL002CABLE 7COND 24AWG SLATE SHLD |
2,587 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 7 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.267" (6.78mm) | Foil | 500.0' (152.4m) | Slate | UL Style 21895 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2821/5 WH001CABLE 5COND 24AWG WHITE SHLD |
1,555 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 24 AWG | 19/36 | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.168" (4.27mm) | Braid | 1000.0' (304.8m) | White | - | - | 600 V | -55°C ~ 200°C | Communication, Control | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
6398 SL002MULTI-PAIR 36COND 28AWG |
1,268 |
|
Datasheet | - | Spool | Active | Multi-Pair | 36 (18 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.383" (9.73mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2960 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
77114 SL199CABLE 9COND 22AWG SHLD 100=100' |
4,677 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 9 | 22 AWG | 7/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.255" (6.48mm) | Foil | - | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
87407CY BK199CABLE 7COND 16AWG BLK SHLD 1000' |
1,867 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 16 AWG | 19/0.0117" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.429" (10.90mm) | Spiral | 1000.0' (304.8m) | Black | UL Style 20234 | - | 600 V | - | - | 0.0500" (1.270mm) | Thermoplastic Elastomer (TPE) | - |
|
|
M39162 SL005MULTI-PAIR 22COND 18AWG |
3,173 |
|
Datasheet | - | Spool | Active | Multi-Pair | 22 (11 Pair Twisted) | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.731" (18.57mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5599/7C SL005CABLE 7COND 24AWG SLATE SHLD |
1,890 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 7 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.267" (6.78mm) | Foil | 100.0' (30.5m) | Slate | UL Style 21895 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
3335 SL001CABLE 5COND 22AWG SHLD |
2,367 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.228" (5.79mm) | Braid | 1000.0' (304.8m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|

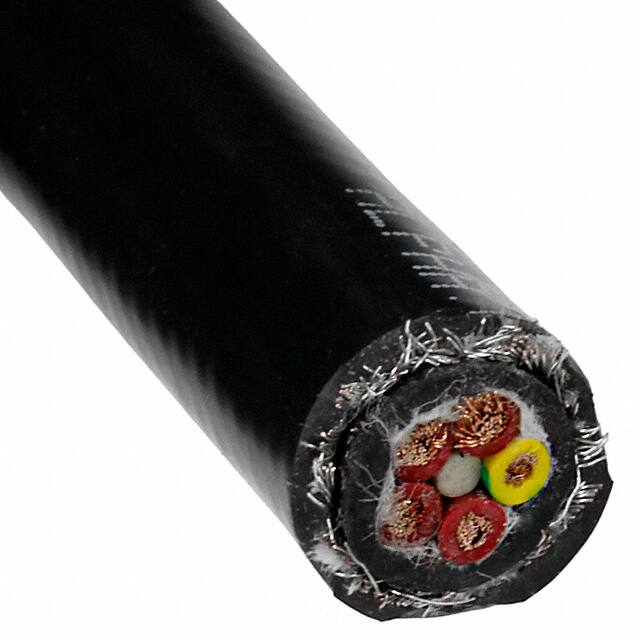

85805CY BK005CABLE 5COND 18AWG BLACK SHLD |
4,615 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 18 AWG | 105/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.453" (11.51mm) | Braid | 100.0' (30.5m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2219/27C SL001CABLE 27COND 22AWG SHLD |
2,974 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 27 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.589" (14.96mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 150 V | -20°C ~ 80°C | Communication, Control | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
