Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

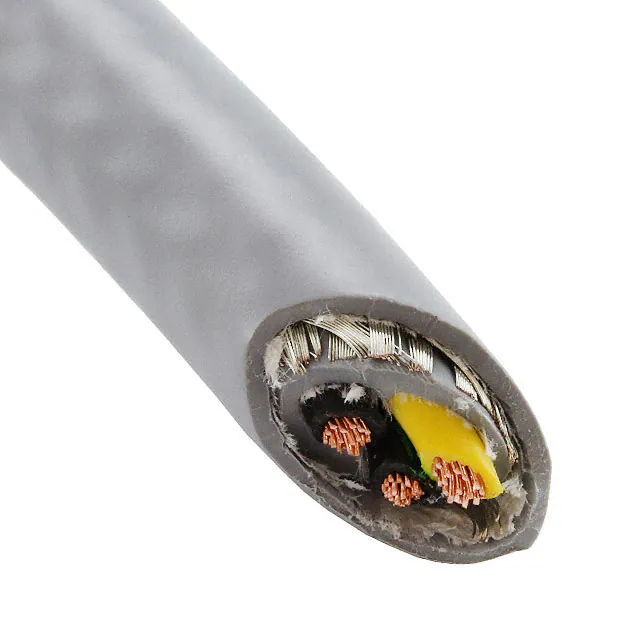

80163 SL005CABLE 3COND 10AWG SLATE SHLD |
4,247 |
|
Datasheet | EcoFlex® PUR | Spool | Active | Multi-Conductor | 3 | 10 AWG | 259/34 | Copper, Tinned | Polyurethane (PU) | 0.492" (12.50mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0530" (1.346mm) | Polyphenylene Ether (PPE) | - |
|
6425 SL001MULTI-PAIR 54COND 22AWG |
2,441 |
|
Datasheet | - | Spool | Active | Multi-Pair | 54 (27 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.698" (17.72mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5610B2020 NC005MULTI-PAIR 40COND 20AWG |
3,930 |
|
Datasheet | - | Spool | Active | Multi-Pair | 40 (20 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.707" (17.96mm) | Foil | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 105°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M13182 SL199MULTI-PAIR 24COND 18AWG 3000' |
3,855 |
|
Datasheet | - | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.737" (18.72mm) | Foil | 3000' (914.4m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0470" (1.194mm) | Polyethylene (PE) | - |
|
79107 SL001CABLE 12COND 20AWG SHLD |
1,127 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 12 | 20 AWG | 10/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.329" (8.36mm) | Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
M33858 BK199CABLE 19 COND 14AWG BLACK 3000' |
2,643 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 19 | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.709" (18.01mm) | Foil | 3000' (914.4m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
35158 BK199CABLE 8COND 20AWG BLK SHLD 1000' |
4,232 |
|
Datasheet | Xtra-Guard® 3 | Spool | Active | Multi-Conductor | 8 | 20 AWG | 7/28 | Copper, Tinned | Polyethylene (PE) | 0.328" (8.33mm) | Foil, Braid | 1000.0' (304.8m) | Black | - | Drain Wire, Rip Cord | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
86318 SL005CABLE 18COND 22AWG SLATE |
3,815 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 18 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.347" (8.81mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25199/20 BK199CABLE 20 COND 22AWG BLACK 1000' |
2,010 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 20 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.335" (8.51mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25199/20 SL199CABLE 20COND 22AWG SHLD 1000' |
2,777 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 20 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.335" (8.51mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
