Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
861605 SL199CABLE 5COND 16AWG SLATE |
3,111 |
|
Datasheet | Xtra-Guard® Flex | Bulk | Active | Multi-Conductor | 5 | 16 AWG | 65/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.298" (7.57mm) | - | - | Slate | UL Style 2661 | Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|

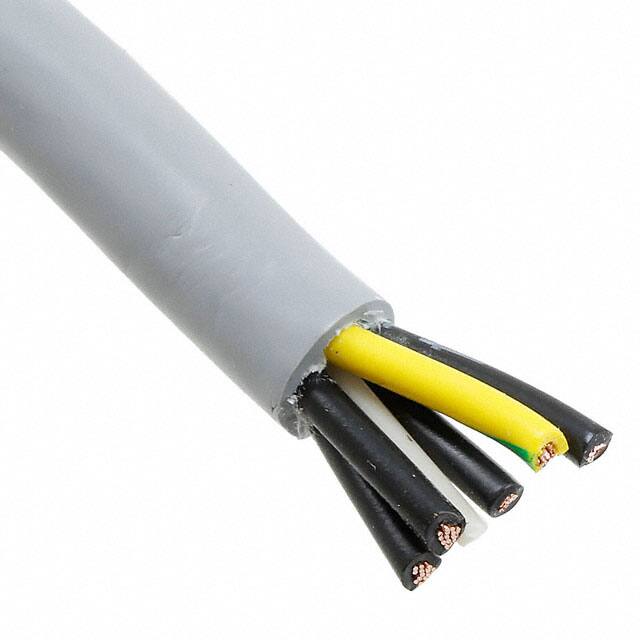

80062 SL005CABLE 5COND 12AWG SLATE |
3,274 |
|
Datasheet | EcoFlex® PUR | Spool | Active | Multi-Conductor | 5 | 12 AWG | 168/34 | Copper, Tinned | Polyurethane (PU) | 0.432" (10.97mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|
|
85612 BK002CABLE 12COND 16AWG BLACK |
4,049 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 12 | 16 AWG | 105/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.573" (14.55mm) | - | 500.0' (152.4m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
852210CY BK002CABLE 10COND 22AWG BLACK SHLD |
1,974 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 10 | 22 AWG | 41/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.503" (12.78mm) | Braid | 500.0' (152.4m) | Black | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
58909 SL001MULTI-PAIR 18COND 24AWG |
4,597 |
|
Datasheet | - | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.315" (8.00mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 150 V | -25°C ~ 125°C | - | 0.0110" (0.279mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
M4652 SL002CABLE 50COND 22AWG SHLD |
4,065 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 50 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.479" (12.17mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
87504 BK199CABLE 4COND 14AWG BLACK 1000' |
1,533 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 14 AWG | 19/0.0147" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.417" (10.59mm) | - | 1000.0' (304.8m) | Black | UL Style 20234 | - | 600 V | - | - | 0.0500" (1.270mm) | Thermoplastic Elastomer (TPE) | - |
|
|
M9740240 BK005MULTI-PAIR 48COND 20AWG BLACK |
1,354 |
|
Datasheet | - | Spool | Active | Multi-Pair | 48 (24 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.916" (23.27mm) | Foil | 100.0' (30.5m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0730" (1.854mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M39153 SL199MULTI-PAIR 30COND 22AWG 3000' |
1,513 |
|
Datasheet | - | Spool | Active | Multi-Pair | 30 (15 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.582" (14.78mm) | Foil | 3000' (914.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5352 SL199CABLE 50COND 22AWG SHLD 3000' |
2,501 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 50 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.501" (12.73mm) | Foil, Braid | 3000' (914.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
