Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45291 BK199CABLE 2COND 20AWG BLK SHLD FEET |
164 |
|
Datasheet | Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.262" (6.65mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|

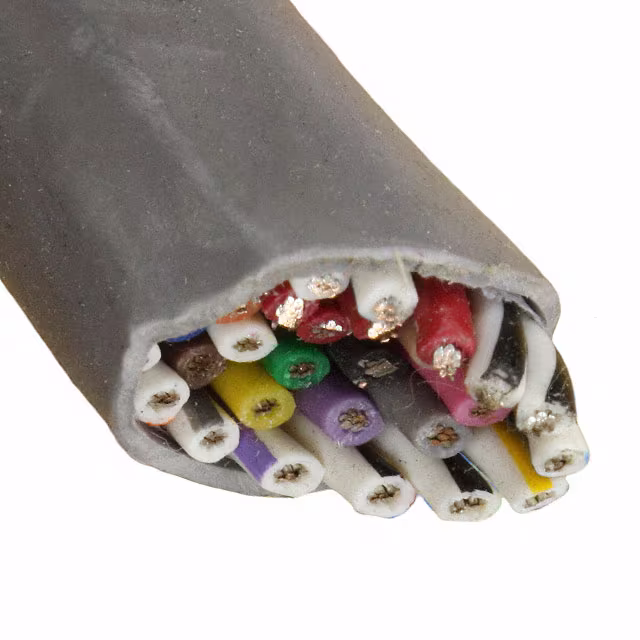

M4706 SL005CABLE 30COND 18AWG SHLD |
500 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 30 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.620" (15.75mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
901005CY SL001CABLE 5CON 10AWG SLATE SHLD FEET |
900 |
|
Datasheet | Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 5 | 10 AWG | 105/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.640" (16.26mm) | Braid | Enter Number of Feet in Order Quantity | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
6017C SL005MULTI-PAIR 24COND 22AWG |
200 |
|
Datasheet | - | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.503" (12.78mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 60°C | Communication, Control | 0.0480" (1.219mm) | Polypropylene (PP) | - |
|
45363 BK199CABLE 3COND 16AWG BLK SHLD FEET |
1,760 |
|
Datasheet | Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.294" (7.47mm) | Foil | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
25066 BK199CABLE 6COND 18AWG BLACK FEET |
371 |
|
Datasheet | Xtra-Guard® 2 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 18 AWG | 16/30 | Copper, Tinned | Polyurethane (PU) | 0.307" (7.80mm) | - | Enter Number of Feet in Order Quantity | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

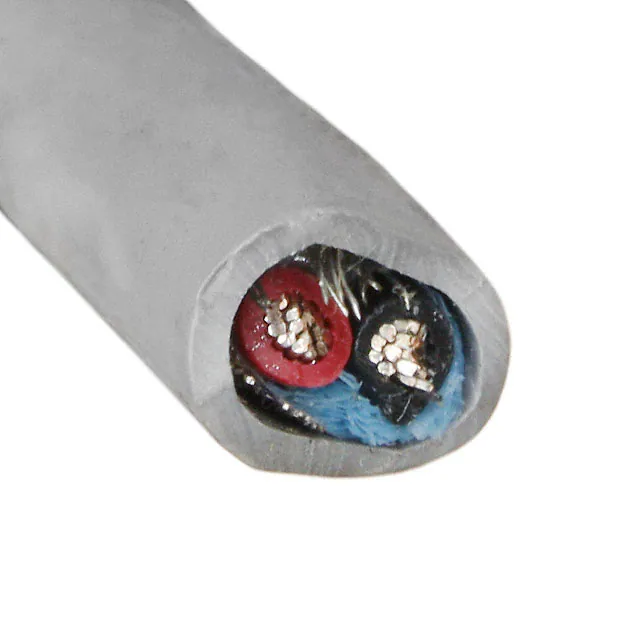

79225 SL005CABLE 2COND 14AWG SLATE SHLD |
500 |
|
Datasheet | EcoFlex® | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.300" (7.62mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
25110 BK199CABLE 10COND 22AWG BLK SHLD FEET |
1,303 |
|
Datasheet | Xtra-Guard® 2 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.296" (7.52mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
45384 BK199CABLE 4COND 18AWG BLK SHLD FEET |
5,765 |
|
Datasheet | Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.289" (7.34mm) | Foil | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
45292 BK199MULTI-PAIR 4COND 20AWG BLK FEET |
406 |
|
Datasheet | Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.352" (8.94mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
