Motors - AC, DC
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Motor Type | Voltage - Rated | RPM | Torque - Rated (oz-in / mNm) | Power - Rated | Encoder Type | Size / Dimension | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Features | Gear Reduction Ratio | Torque - Max Momentary (oz-in / mNm) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSME021G1ASERVOMOTOR 3000 RPM 100V |
4,455 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | - | - | 270.5 / 1910 | 0°C ~ 40°C |
|
MSME021G1BSERVOMOTOR 3000 RPM 100V |
2,488 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Brake | - | 270.5 / 1910 | 0°C ~ 40°C |
|

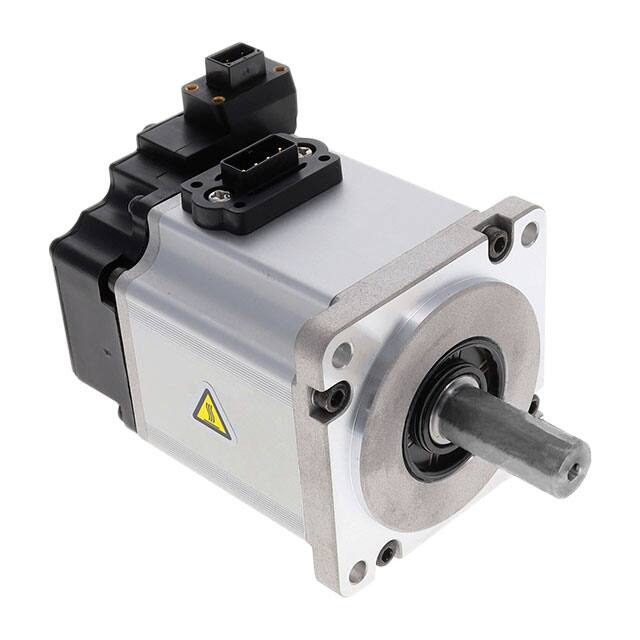

MSME021G1CSERVOMOTOR 3000 RPM 100V |
2,074 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Oil Seal | - | 270.5 / 1910 | 0°C ~ 40°C |
|
MSME021G1TSERVOMOTOR 3000 RPM 100V |
1,908 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Brake, Key | - | 270.5 / 1910 | 0°C ~ 40°C |
|
MSME021S1TSERVOMOTOR 3000 RPM 100V |
2,319 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Absolute | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Brake, Key | - | 270.5 / 1910 | 0°C ~ 40°C |
|
MSME022G1ASERVOMOTOR 3000 RPM 200V |
4,868 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | - | - | 270.5 / 1910 | 0°C ~ 40°C |
|
MSME022G1BSERVOMOTOR 3000 RPM 200V |
4,387 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Brake | - | 270.5 / 1910 | 0°C ~ 40°C |
|
MSME022G1CSERVOMOTOR 3000 RPM 200V |
2,329 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Oil Seal | - | 270.5 / 1910 | 0°C ~ 40°C |
|

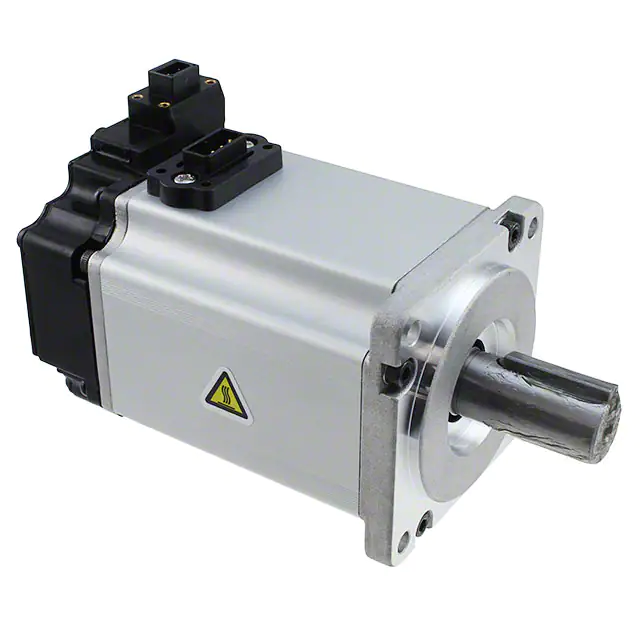

MSME022G1SSERVOMOTOR 3000 RPM 200V |
1,487 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Key | - | 270.5 / 1910 | 0°C ~ 40°C |
|
MSME022G1TSERVOMOTOR 3000 RPM 200V |
3,446 |
|
Datasheet | MINAS A5 | Bulk | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Brake, Key | - | 270.5 / 1910 | 0°C ~ 40°C |
