Motor Driver Boards, Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Motor Type | Control / Drive Type | Number of Motors | Voltage - Load | Current - Output | Wattage - Load | Voltage - Supply | Interface | Mounting Type | Operating Temperature | Features | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2134DRV8834 STEPPER MTR DRVR CARRIER |
131 |
|
Datasheet | - | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 2.5 ~ 10.8V | 1.5A | - | 2.5 ~ 10.8VDC | Step / Direction | Through Hole | - | - | - |
|

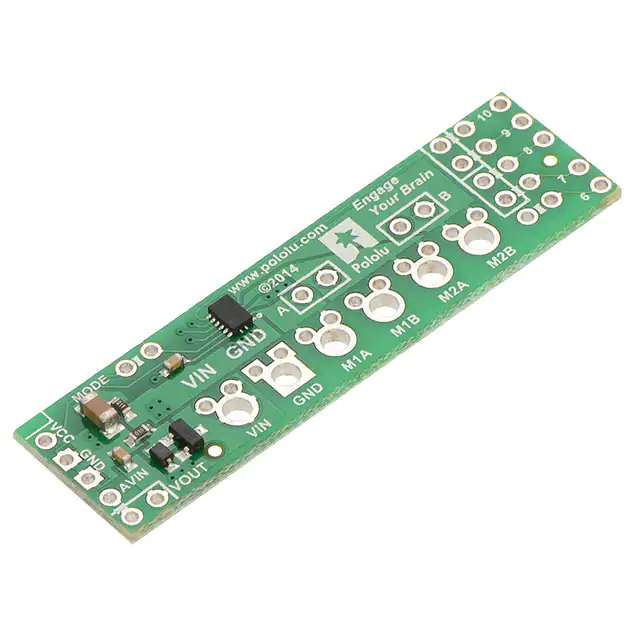

2511ARDUINO DRV8835 DUAL MTR DRVR |
197 |
|
Datasheet | - | Bulk | Active | Board | Brushed DC | Brushed | 2 | 1.5 ~ 11V | 1.2A | - | 1.5 ~ 11VDC | - | Chassis Mount | - | - | Arduino |
|
|
3762DRV8434 STEPPER DRIVER |
260 |
|
Datasheet | DRV8434 | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 4.5 ~ 48V | 1.2A | - | 4.5 ~ 48V | Step / Direction | Through Hole | - | - | - |
|
2753RAS PI DRV8835 DUAL MTR DRVR KIT |
221 |
|
Datasheet | - | Bulk | Active | Board | Brushed DC | Brushed | 2 | 1.5 ~ 11V | 1.2A | - | 1.5 ~ 11VDC | - | Through Hole | - | - | Raspberry Pi |
|

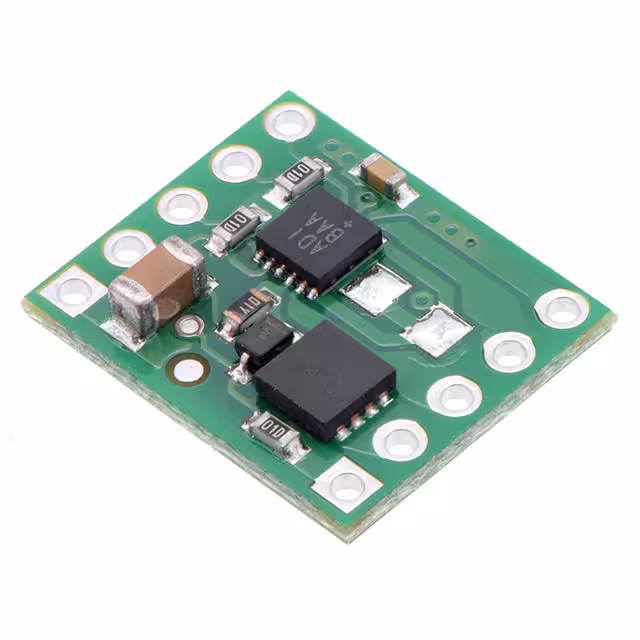

2961MAX14870 BRUSHED DC MTR DRVR |
120 |
|
Datasheet | - | Bulk | Active | Board | Brushed DC | Brushed | 1 | 4.5 ~ 36V | 1.7A | - | 4.5 ~ 36VDC | - | Through Hole | - | - | - |
|

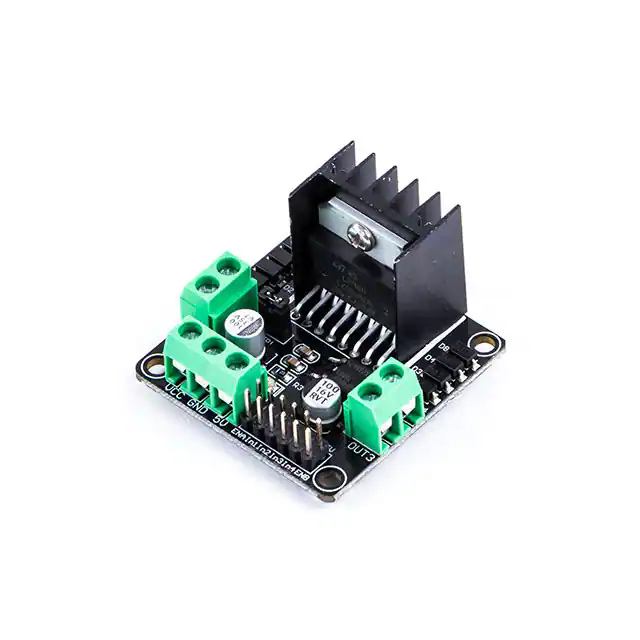

MTD-01MOTOR DRIVER MODULE |
184 |
|
Datasheet | - | Retail Package | Active | Board | Stepper | Stepper, Bipolar | 1 | - | - | - | 5VDC | - | Chassis Mount | - | - | Arduino |
|
|
3763DRV8434 STEPPER DRIVER W/PINS |
194 |
|
Datasheet | * | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 4.5 ~ 48V | 1.2A | - | 4.5 ~ 48V | Step / Direction | Through Hole | - | - | - |
|
|
3766DRV8434S SPI STPR MTR DRVR |
351 |
|
Datasheet | - | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 4.5 ~ 48V | 1.2A | - | 4.5 ~ 48V | Step / Direction | Through Hole | - | - | - |
|
|
3768DRV8434S SPI STPR MTR DRV 2A MAX |
283 |
|
Datasheet | - | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 4.5 ~ 48V | 1.2A | - | 4.5 ~ 48V | Step / Direction | Through Hole | - | - | - |
|
|
3764DRV8434A STPR MTR DRVR CARRIER |
248 |
|
Datasheet | - | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 4.5 ~ 48V | 1.2A | - | 4.5 ~ 48V | Step / Direction | Through Hole | - | - | - |
|
|
3769DRV8434S SPI STPR MTR DRV 2A MAX |
248 |
|
Datasheet | - | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 4.5 ~ 48V | 1.2A | - | 4.5 ~ 48V | Step / Direction | Through Hole | - | - | - |
|
|
3765DRV8434A STPR MTR DRVR CARRIER |
244 |
|
Datasheet | - | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 4.5 ~ 48V | 1.2A | - | 4.5 ~ 48V | Step / Direction | Through Hole | - | - | - |
|
|
3767DRV8434S SPI STPR MTR DRVR |
202 |
|
Datasheet | - | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 4.5 ~ 48V | 1.2A | - | 4.5 ~ 48V | Step / Direction | Through Hole | - | - | - |
|

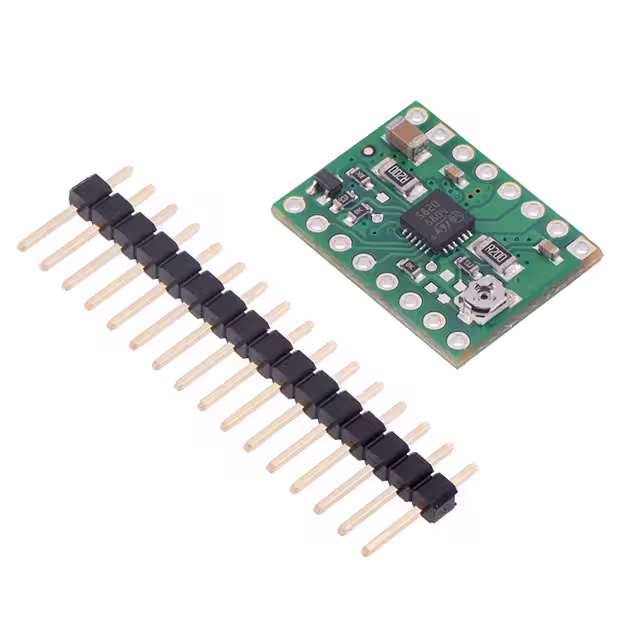

2878STSPIN820 STPR MTR DRVR CARRIER |
165 |
|
Datasheet | - | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 7 ~ 45V | 0.9A | - | 7 ~ 45VDC | Step / Direction | Through Hole | - | - | - |
|
5061MOTORON M1T256 1 MTR CTRL KIT |
166 |
|
Datasheet | MOTORON | Bulk | Active | Board | Brushed DC | Brushed | 1 | 4.5 ~ 48V | 2.2A | - | 4.5 ~ 48VDC | I2C | - | - | - | - |
|
2998TB67S128FTG STPR MTR DRVR |
117 |
|
Datasheet | - | Bulk | Active | Board | Stepper | Stepper, Bipolar | 1 | 6.5 ~ 44V | 2.1A | - | 6.5 ~ 44VDC | Step / Direction | Chassis Mount | - | - | - |
|
5060MOTORON M1T256 1 MTR CTRL ASM |
171 |
|
Datasheet | MOTORON | Bulk | Active | Board | Brushed DC | Brushed | 1 | 4.5 ~ 48V | 2.2A | - | 4.5 ~ 48VDC | I2C | - | - | - | - |
|
2519ARDUINO DUAL MAX14870 MTR DRIVER |
154 |
|
Datasheet | - | Bulk | Active | Board | Brushed DC | Brushed | 2 | 4.5 ~ 36V | 1.7A | - | 4.5 ~ 36VDC | - | Through Hole | - | - | Arduino |
|
1351MCR MAESTRO 6CHNL USB SERVO CTRL |
171 |
|
Datasheet | - | Bulk | Active | Board | Servo | Servo DC | 6 | 5 ~ 16V | - | - | 5 ~ 16VDC | Serial, USB | Chassis Mount | - | - | - |
|
1350MCR MAESTRO 6CHNL USB SERVO CTRL |
375 |
|
Datasheet | - | Bulk | Active | Board | Servo | Servo DC | 6 | 5 ~ 16V | - | - | 5 ~ 16VDC | Serial, USB | Chassis Mount | - | - | - |
