Relay Output Monitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Trip Status | Trip Range | Delay Time | Voltage - Supply | Output Type | Circuit | Contact Rating @ Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DUA52C724RELAY MONITOR UNDER VOLT 8-28DC |
4,685 |
|
Datasheet | DUA52 | Box | Active | Voltage Sensing DC | Energized High | 8 ~ 28V DC | - | 12 ~ 24VDC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
DIB01CM24100AMONITOR OVER/UNDER CURR 100A |
1,398 |
|
Datasheet | DIB01 | Box | Active | Current Sensing AC | Energized, Latching High/Low | 2 ~ 100A AC | 0.1 Sec ~ 30 Sec | 24 ~ 240VAC, 24VDC | Relay | SPDT (1 Form C) | 8A @ 250VAC | DIN Rail |
|
DPA55CM443PHASE VOLTAGE MONITOR RELAY |
3,440 |
|
Datasheet | DPA55 | Box | Active | Phase Loss, Phase Sequence | Energized High | 177 ~ 550V AC | - | 208 ~ 480VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|

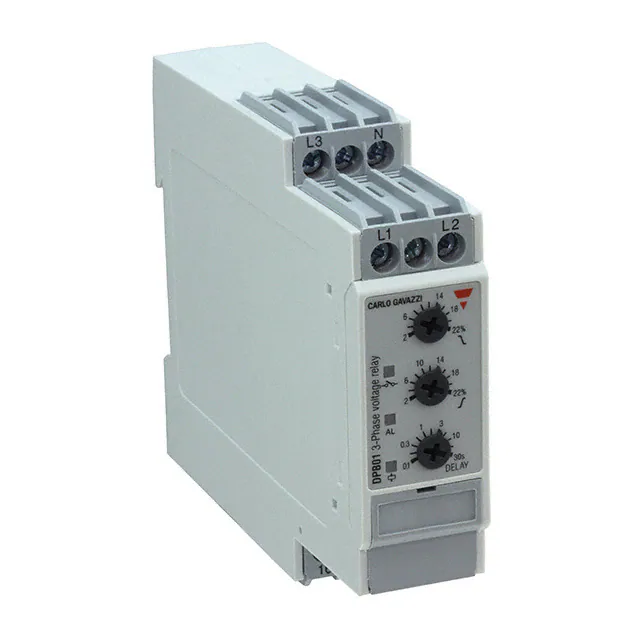

DPB01CM483PHASE OVER/UNDER VOLT MONITOR |
4,084 |
|
Datasheet | DPB01 | Box | Active | Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High | 323 ~ 550V AC | 0.1 Sec ~ 30 Sec | 380 ~ 480VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | DIN Rail |
|
DPC01DM23400HZ240 VAC 400HZ 3-PH MULTIFUNCTION |
4,949 |
|
Datasheet | DPC01 | Box | Active | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High/Low | 162 ~ 293V AC | 0.1 Sec ~ 30 Sec | 208 ~ 240VAC | Relay | SPDT (1 Form C) x 2 | 8A @ 250VAC | DIN Rail |
|
DFC01DB23115-230VAC FREQ DUAL RLY |
2,240 |
|
Datasheet | DFC01 | Box | Active | Frequency Sensing | Energized High/Low | 50 ~ 60Hz | 0.1 Sec ~ 30 Sec | 115 ~ 230VAC | Relay | SPDT (1 Form C) x 2 | 8A @ 250VAC | DIN Rail |
|
|
DUA55CM441-PHASE MAINS QUALITY RELAY |
2,302 |
|
Datasheet | DUA55 | Box | Active | Voltage Sensing AC | Energized High/Low | 177 ~ 550V AC | - | 208 ~ 480VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
|
DIA01CB235A115-230V CURR. RLY |
2,512 |
|
Datasheet | DIA01 | Box | Active | Current Sensing AC/DC | Energized High/Low | 0.5 ~ 5A AC/DC | - | 115 ~ 230VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | DIN Rail |
|
|
DIB01CB2310A115-230VAC CURR. RLY |
2,856 |
|
Datasheet | DIB01 | Box | Active | Current Sensing AC/DC | Energized, Latching High/Low | 0.1 ~ 10A AC/DC | 0.1 Sec ~ 30 Sec | 115 ~ 230VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | DIN Rail |
|

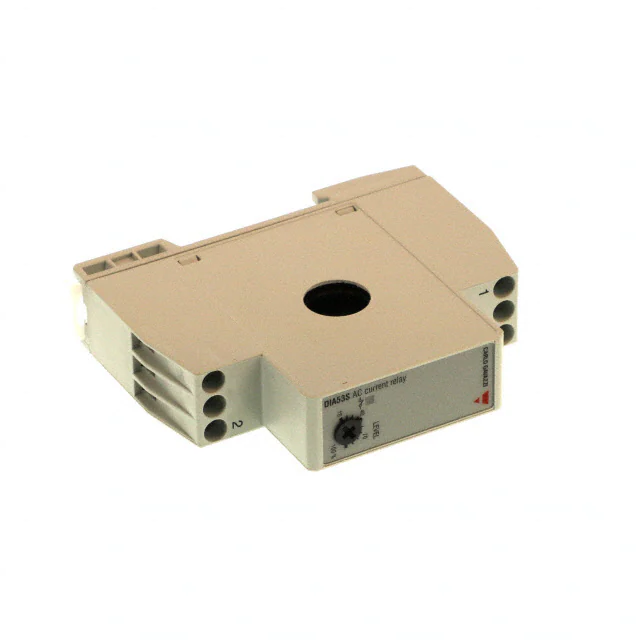

DIA53S724100A1PH AC OVER CURRENT 100A |
2,739 |
|
Datasheet | DIA53 | Box | Active | Current Sensing AC | Energized High | 10 ~ 100A AC | - | Loop Power | Solid State | SPST-NO (1 Form A) | 0.1A @ 40VDC | DIN Rail |
