Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55.2-SC-8-3MAGNET 0.315"D X 0.118"THICK RND |
2,370 |
|
Datasheet | - | Box | Active | Round | - | Samarium Cobalt (SmCo5) | - | - | - | 0.315" Dia x 0.118" H (8.00mm x 3.00mm) | 200°C (TA) |
|
50.1-SC-6-4.5MAGNET 0.236"D X 0.177"THICK RND |
4,302 |
|
Datasheet | - | Box | Active | Round | - | Samarium Cobalt (SmCo5) | Steel, Zinc | - | - | 0.236" Dia x 0.177" H (6.00mm x 4.50mm) | 200°C (TA) |
|
50.2-HF-13-4.5-M3MAGNET 0.512"D X 0.177"THICK RND |
2,454 |
|
Datasheet | - | Box | Active | Round | - | Ferrite | Steel, Zinc | - | - | 0.512" Dia x 0.177" H (13.00mm x 4.50mm) | 200°C (TA) |
|
50.1-SC-8-4.5MAGNET 0.315"D X 0.177"THICK RND |
1,280 |
|
Datasheet | - | Box | Active | Round | - | Samarium Cobalt (SmCo5) | Steel, Zinc | - | - | 0.315" Dia x 0.177" H (8.00mm x 4.50mm) | 200°C (TA) |
|
60-AN-13MAGNET 0.512"D X 0.394"THICK CYL |
4,340 |
|
Datasheet | - | Box | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 0.512" Dia x 0.394" H (13.00mm x 10.00mm) | 280°C (TA) |
|
50.2-ND-10-4.5-M3MAGNET 0.394"D X 0.177"THICK RND |
3,596 |
|
Datasheet | - | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.394" Dia x 0.177" H (10.00mm x 4.50mm) | 80°C (TA) |
|
55.3-AN-8-25MAGNET 0.315"D X 0.984"THICK CYL |
1,139 |
|
Datasheet | - | Box | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 0.315" Dia x 0.984" H (8.00mm x 25.00mm) | - |
|
50.3-ND-13-M5MAGNET 0.512"D X 0.177"THICK RND |
4,670 |
|
Datasheet | - | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.512" Dia x 0.177" H (13.00mm x 4.50mm) | 80°C (TA) |
|
50.2-ND-13-4.5-M3MAGNET 0.512"D X 0.177"THICK RND |
2,814 |
|
Datasheet | - | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.512" Dia x 0.177" H (13.00mm x 4.50mm) | 80°C (TA) |
|

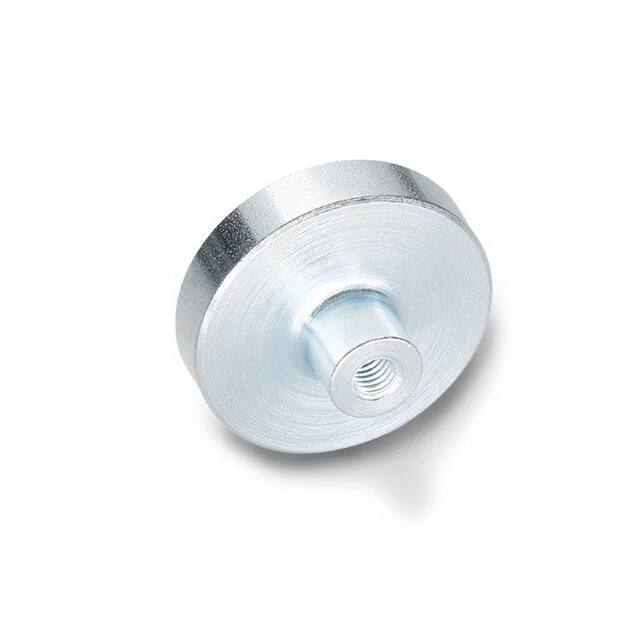

50.2-HF-25-7-M4MAGNET 0.984"D X 0.276"THICK RND |
3,005 |
|
Datasheet | - | Box | Active | Round | - | Ferrite | Steel, Zinc | - | - | 0.984" Dia x 0.276" H (25.00mm x 7.00mm) | 200°C (TA) |
