Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
103MG10MAGNET 0.156"LX0.078"WX0.040"H |
2,615 |
|
Datasheet | MG | Tube | Obsolete | Rectangular | Axial | Rare Earth | - | - | 2350G @ 0.01" | 0.156" L x 0.078" W x 0.040" H (3.96mm x 1.98mm x 1.02mm) | 200°C (TA) |
|
|
104MG2MAGNET 0.125" SQ X 0.040" H SQU |
4,295 |
|
Datasheet | MG | Tube | Obsolete | Square | Axial | Rare Earth | - | - | 2500G @ 0.01" | 0.125" Sq x 0.040" H (3.18mm x 1.02mm) | 150°C (TA) |
|
|
104MG1MAGNET 0.078" SQ X 0.040" H SQU |
3,762 |
|
Datasheet | MG | Tube | Obsolete | Square | Axial | Rare Earth | - | - | 1110G @ 0.01" | 0.078" Sq x 0.040" H (1.98mm x 1.02mm) | 150°C (TA) |
|
|
104MG3MAGNET 0.156"LX0.078"WX0.040"H |
4,925 |
|
Datasheet | MG | Tube | Obsolete | Rectangular | Axial | Rare Earth | - | - | 2350G @ 0.01" | 0.156" L x 0.078" W x 0.040" H (3.96mm x 1.98mm x 1.02mm) | 150°C (TA) |
|
|
103MG6MAGNET 0.080" SQ X 0.120" H RECT |
1,757 |
|
Datasheet | MG | Tube | Obsolete | Rectangular | Axial | Rare Earth | - | - | 1110G @ 0.01" | 0.080" Sq x 0.120" H (2.00mm x 3.10mm) | 250°C (TA) |
|
|
101MG8-BPMAGNET 0.245"D X 0.245"THICK RND |
3,221 |
|
Datasheet | MG | Bulk | Obsolete | Round | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.245" Dia x 0.245" H (6.22mm x 6.22mm) | 250°C (TA) |
|
|
107MG1MAGNET 0.400"D X 1.000"THICK CYL |
2,214 |
|
Datasheet | MG | Bulk | Obsolete | Cylindrical | Axial | Alnico 8 (AlNiCo) | Aluminum | - | 7800G @ 0.01" | 0.400" Dia x 1.000" H (10.2mm x 25.4mm) | 140°C (TA) |
|
102MG15-BPMAGNET 0.311"D X 0.480"THICK CYL |
3,662 |
|
Datasheet | MG | Bulk | Active | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.480" H (7.90mm x 12.2mm) | 140°C (TA) |
|

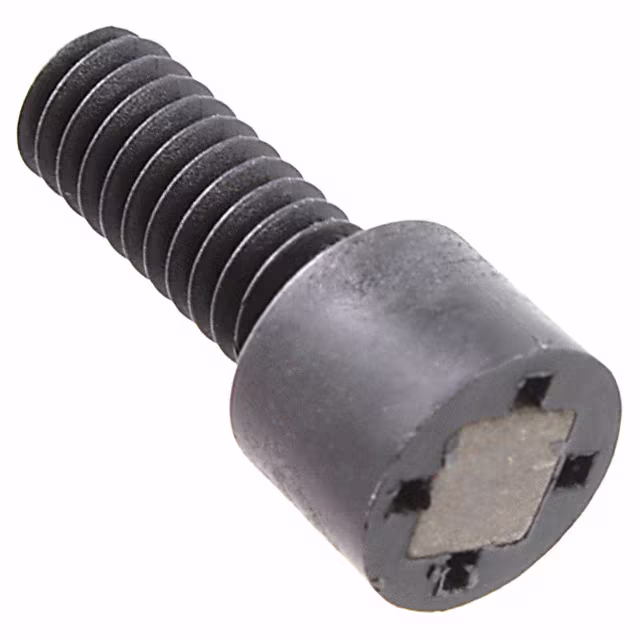

106MG10MAGNET 0.400"D X 0.930"THICK CYL |
2,366 |
|
Datasheet | MG | Bulk | Not For New Designs | Cylindrical | Axial | Rare Earth | - | - | 2620G @ 0.01" | 0.400" Dia x 0.930" H (10.2mm x 23.6mm) | 150°C (TA) |
|
|
SPS-MAG-011MAGNET - CARRIER ASSEMBLY SENSOR |
2,353 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - |
