Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
600214MW35-C HY 14AWG 1KG MAX/V 4500 |
2,506 |
|
Datasheet | - | Spool | Active | 14 AWG | Copper, Annealed Bare | Polyamide | 0.068" (1.73mm) | 177.1' (54m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|

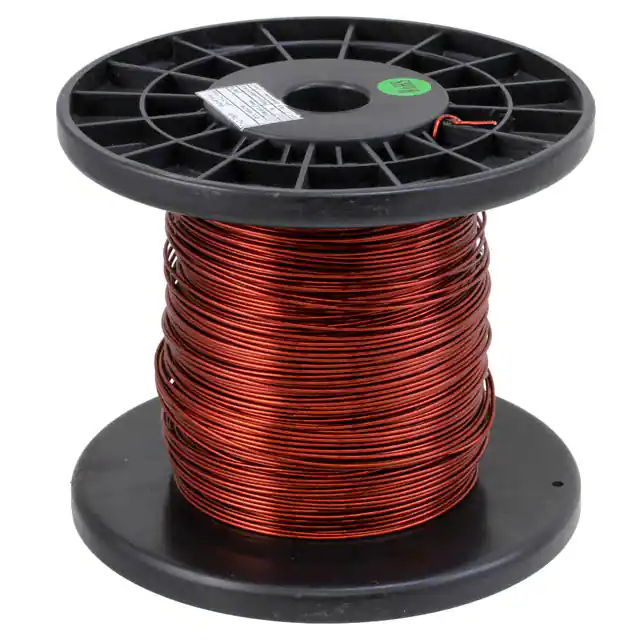

600218MW35-C HY 18AWG 1KG MAX/V 3900 |
3,676 |
|
Datasheet | - | Spool | Active | 18 AWG | Copper, Annealed Bare | Polyamide | 0.043" (1.09mm) | 448' (136.6m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|

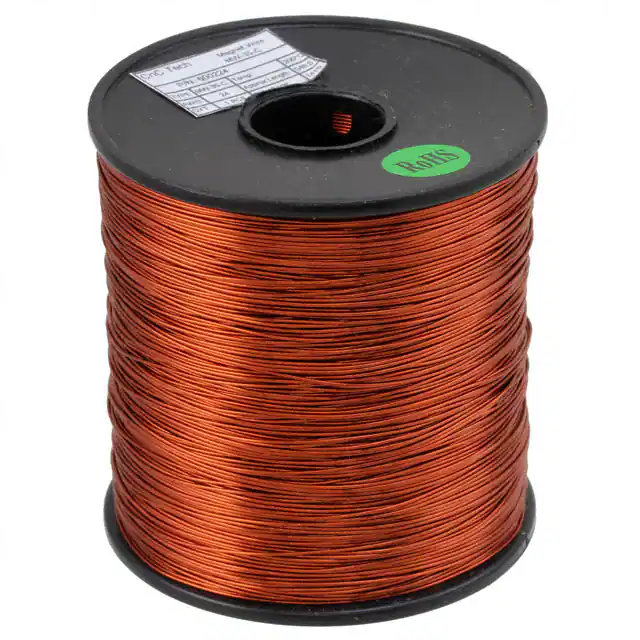

600224MW35-C HY 24AWG 1KG MAX/V 3500 |
3,369 |
|
Datasheet | - | Spool | Active | 24 AWG | Copper, Annealed Bare | Polyamide | 0.023" (0.58mm) | 1799.1' (548.5m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|

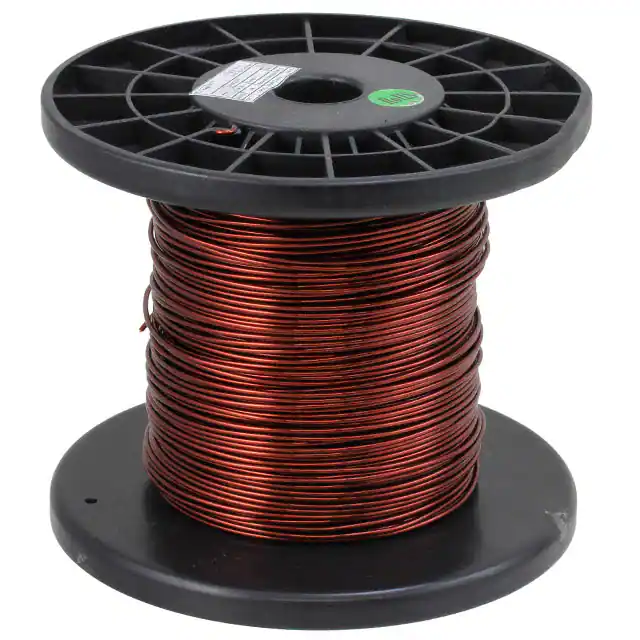

600216MW35-C HY 16AWG 1KG MAX/V 4000 |
3,719 |
|
Datasheet | - | Spool | Active | 16 AWG | Copper, Annealed Bare | Polyamide | 0.054" (1.37mm) | 282.4' (86.1m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|

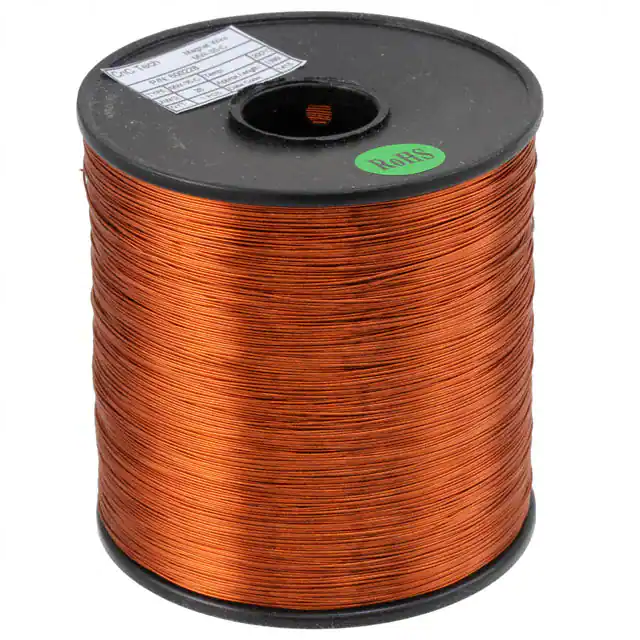

600228MW35-C HY 28AWG 1KG MAX/V 3200 |
3,906 |
|
Datasheet | - | Spool | Active | 28 AWG | Copper, Annealed Bare | Polyamide | 0.015" (0.38mm) | 4587.4' (1398.6m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|

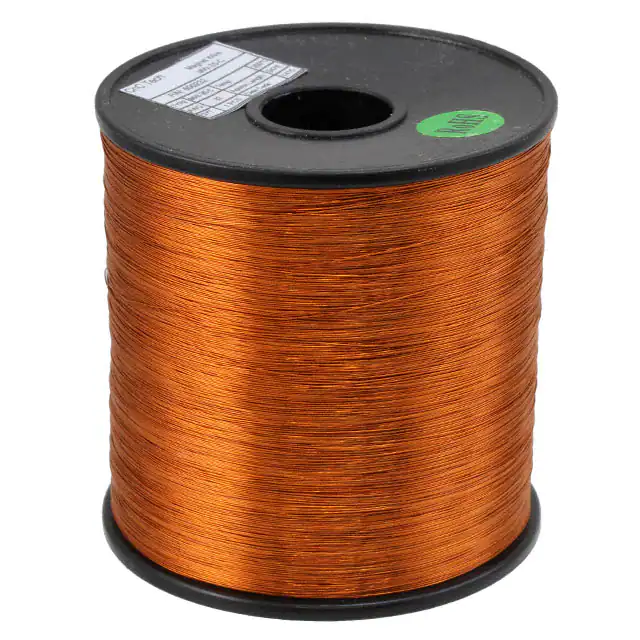

600232MW35-C HY 32AWG 1KG MAX/V 2600 |
3,578 |
|
Datasheet | - | Spool | Active | 32 AWG | Copper, Annealed Bare | Polyamide | 0.010" (0.25mm) | 11399.6' (3475.5m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|

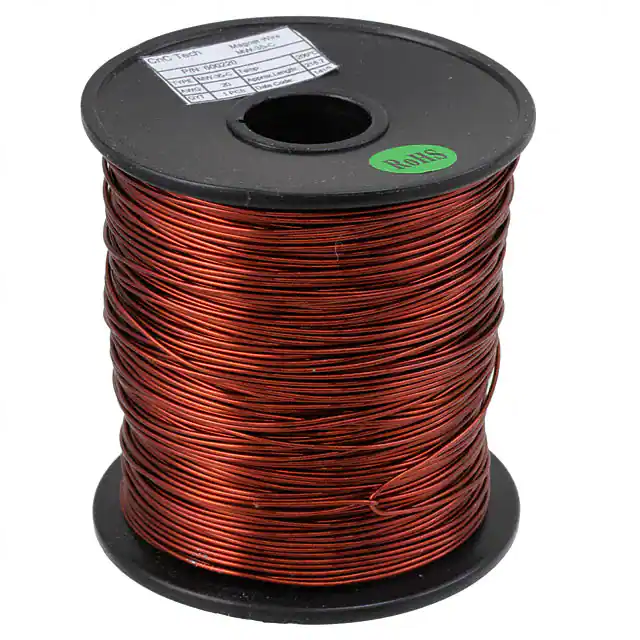

600220MW35-C HY 20AWG 1KG MAX/V 3800 |
1,400 |
|
Datasheet | - | Spool | Active | 20 AWG | Copper, Annealed Bare | Polyamide | 0.035" (0.89mm) | 710.8' (216.7m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|
|
610214MW-28C SL 14AWG 1KG MAX/V 2600 |
4,547 |
|
Datasheet | - | Spool | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.067" (1.70mm) | 177.1' (54m) | MW 28-C SL | - |
|

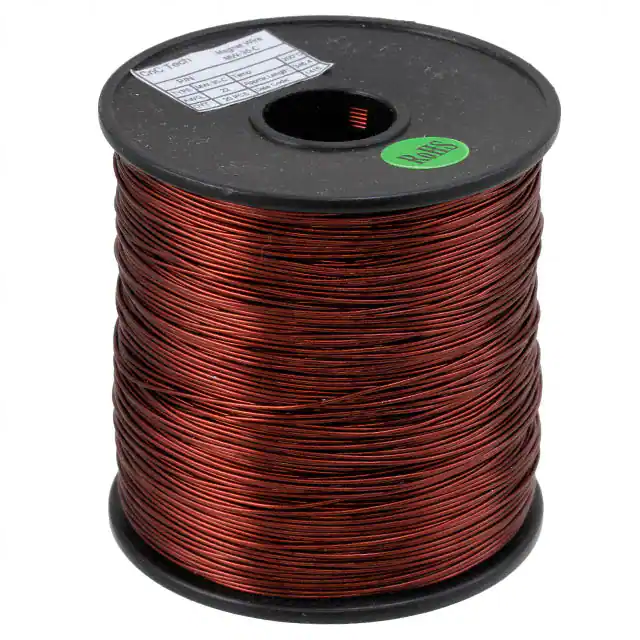

600222MW35-C HY 22AWG 1KG MAX/V 3600 |
1,061 |
|
Datasheet | - | Spool | Active | 22 AWG | Copper, Annealed Bare | Polyamide | 0.028" (0.71mm) | 1136.2' (346.4m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|

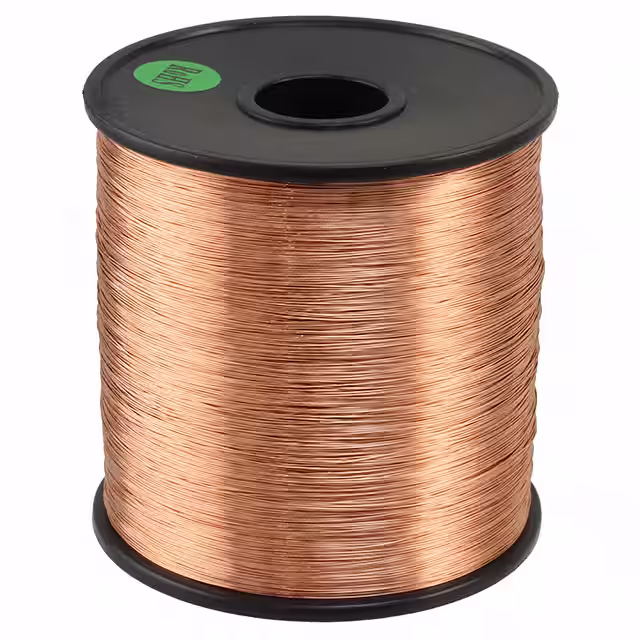

610220MW-28C SL 20AWG 1KG MAX/V 2000 |
4,394 |
|
Datasheet | - | Spool | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.034" (0.86mm) | 710.8' (216.7m) | MW 28-C SL | - |
