Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18H200P18H200P MAGNET WIRE, ENAMELED CO |
4,389 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 199.0' (61m) | MW 35-C | 1.0 lbs (453.6 g) |
|
100/38LITZ.125#18 LITZ WIRE, 5/20/38STR, 2OZ |
2,643 |
|
Datasheet | - | Box | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.052" (1.32mm) | 25.0' (7.6m) | MW 80-C | 0.13 lbs (56.7 g) |
|
35HNSP.5#35 HVY MAG WIRE, 155C RED 8OZ |
4,898 |
|
Datasheet | - | Box | Active | 35 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.007" (0.18mm) | 4946.0' (1508m) | MW 79-C | 0.5 lbs (226.8 g) |
|
28SNSP28SNSP MAGNET WIRE, ENAMELED COP |
1,328 |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2027.0' (618m) | MW 80-C | 1.0 lbs (453.6 g) |
|

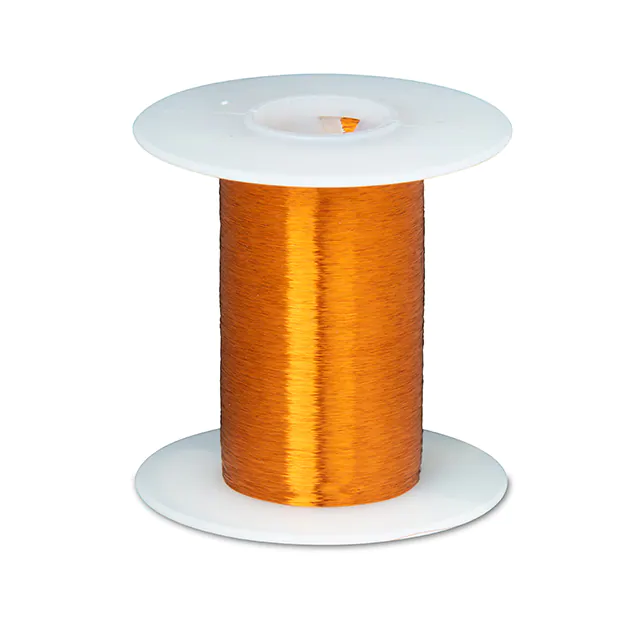

44S200P.2544S200P.25 MAGNET WIRE, ENAMELED |
1,265 |
|
Datasheet | - | Bag | Active | 44 AWG | Copper, Annealed Bare | Polyester | - | 19950.0' (6081m) | MW 35-C | 0.25 lbs (113.4 g) |
|

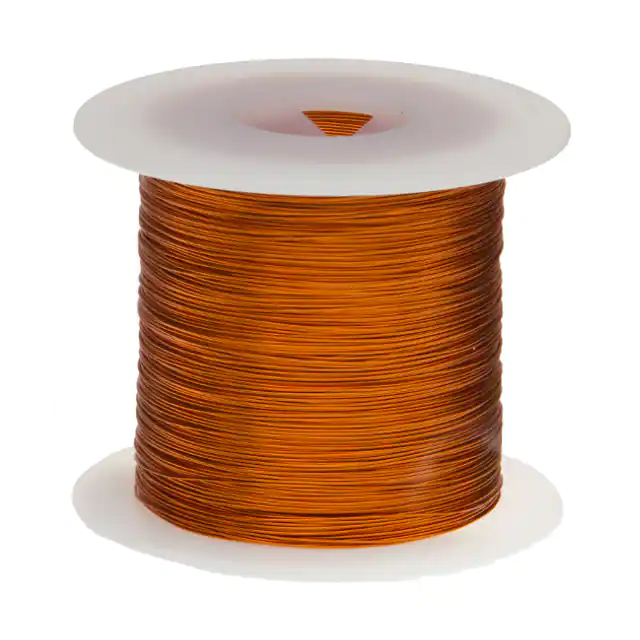

20H200P20H200P 20 AWG MAGNET WIRE, ENAM |
3,971 |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyester | - | 314.0' (96m) | MW 35-C | - |
|
22H200P22H200P 22 AWG MAGNET WIRE, ENAM |
3,236 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 502.0' (153m) | MW 35-C | - |
|
26H240P.25#26 HVY MAG WIRE, 240C NAT 4OZ |
4,191 |
|
Datasheet | - | Box | Active | 26 AWG | Copper, Annealed Bare | Polyimide | 0.018" (0.46mm) | 20.0' (6.1m) | MW 16-C | 0.25 lbs (113.4 g) |
|
|
36HNSP.5#36 HVY MAG WIRE, 155C NAT 8OZ |
4,262 |
|
Datasheet | - | Box | Active | 36 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.006" (0.16mm) | 6190.0' (1887m) | MW 79-C | 0.5 lbs (226.8 g) |
|
40/38LITZ.125#22 LITZ WIRE, 40/38STR, 2OZ |
4,298 |
|
Datasheet | - | Box | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.033" (0.84mm) | 62.0' (18.9m) | MW 80-C | 0.13 lbs (56.7 g) |
