Position, Proximity, Speed (Modules)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Output Type | Actuator Material | Termination Style | Frequency | Voltage - Supply | Must Operate | Must Release | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S12-275VPD-5VCB2FERROUS METAL DETECTOR - CYLINDE |
3,390 |
|
Datasheet | - | Cylinder, Threaded - M12 | Bulk | Active | Hall Effect Sensor | Digital | Ferrous Metals | Connector | 500 Hz | 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | - | - |
|
|
S12R-SSRDSO-NOSL5-500SPEED SWITCH GEAR - CYLINDER, TH |
3,605 |
|
Datasheet | - | Cylinder, Threaded - M12 | Bulk | Active | Hall Effect Switch | SPST-NO | Ferrous Metals, Gear Tooth | Cable Leads | 500 Hz | 8V ~ 32V | - | - | -40°C ~ 110°C | - | - |
|
|
S12R-SSRDSO-NCSL5-001SPEED SWITCH GEAR - CYLINDER, TH |
2,618 |
|
Datasheet | - | Cylinder, Threaded - M12 | Bulk | Active | Hall Effect Switch | SPST-NC | Ferrous Metals, Gear Tooth | Cable Leads | 1 Hz | 8V ~ 32V | - | - | -40°C ~ 110°C | - | - |
|
|
S63B-DHS1-5KCB2ADUAL HALL SWITCH - CYLINDER, 5/8 |
3,137 |
|
Datasheet | - | Barrel, Stainless Steel | Bulk | Active | Hall Effect Switch | NPN | Magnet | Connector | 20 kHz | 4.5V ~ 28V | 5.5mT | 3.5mT | -40°C ~ 110°C | - | - |
|
|
S18-275VPD-RICB1EFERROUS METAL DETECTOR - THREADE |
3,464 |
|
Datasheet | - | Cylinder, Threaded - M18 | Bulk | Active | Hall Effect Sensor | PNP | Ferrous Metals | Cable with Connector | 500 Hz | 8V ~ 30V | - | - | -20°C ~ 85°C | - | - |
|
|
M3030VRS SPEED SENSOR |
4,522 |
|
- |
3030 | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
HSS-L2C-111-ASENSOR BALL SW SPST-NC W LEADS |
4,414 |
|
Datasheet | HSS L2 | Module | Box | Active | Ball Switch | SPST-NC (2) | Magnet | Wire Leads | - | - | - | - | -40°C ~ 80°C | - | - |
|
3050A13SENSOR VRS SINE WAVE WIRE LEADS |
1,547 |
|
Datasheet | 3050 | Barrel, Stainless Steel | Box | Active | VRS (Passive) | Sine Wave | Ferrous Metals, Gear Tooth | Wire Leads | 60 kHz | - | - | - | -40°C ~ 107°C | - | - |
|
MA240SANSENSOR VRS SINE WAVE CONNECTOR |
3,062 |
|
Datasheet | MA240 | Barrel, Stainless Steel | Box | Active | VRS (Passive) | Sine Wave | Ferrous Metals, Gear Tooth | Connector | 40 kHz | - | - | - | -55°C ~ 150°C | - | - |
|
3040AN40SENSOR VRS SINE WAVE CONNECTOR |
2,273 |
|
Datasheet | 3040 | Barrel, Stainless Steel | Bulk | Active | VRS (Passive) | Sine Wave | Ferrous Metals, Gear Tooth | Connector | 40 kHz | - | - | - | -55°C ~ 120°C | - | - |
|

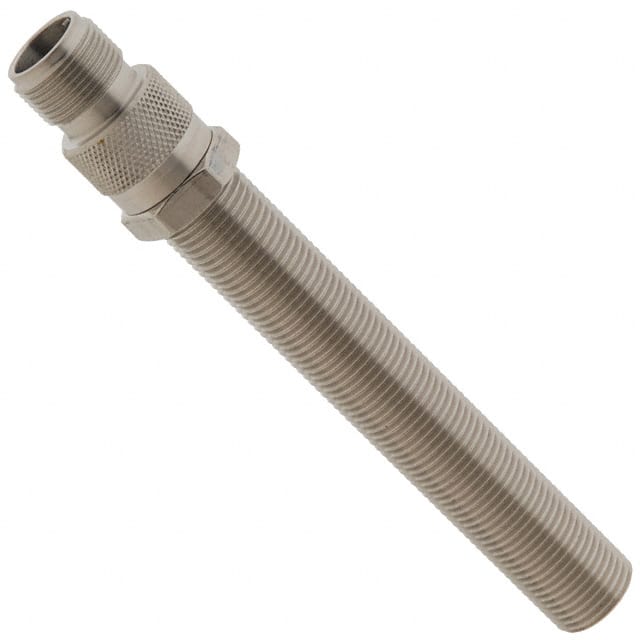

3030AN40SENSOR VRS SINE WAVE CONNECTOR |
3,269 |
|
Datasheet | 3030 | Barrel, Stainless Steel | Bulk | Active | VRS (Passive) | Sine Wave | Ferrous Metals, Gear Tooth | Connector | 15 kHz | - | - | - | -55°C ~ 120°C | - | - |
|

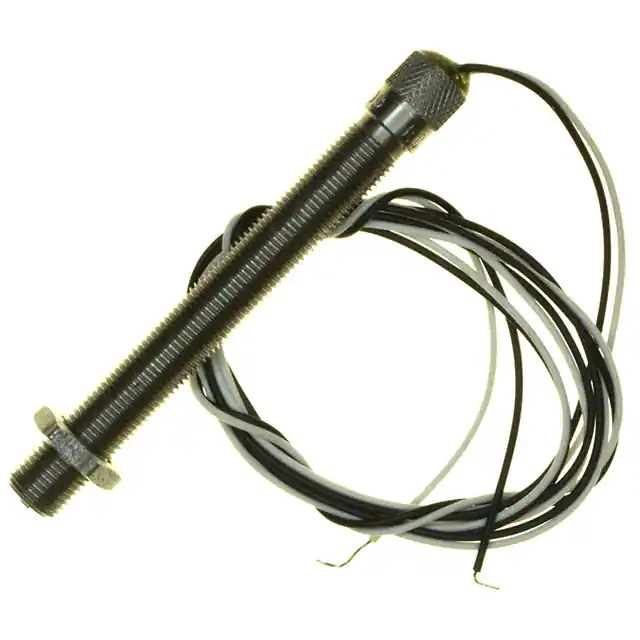

3050A20SENSOR VRS SINE WAVE WIRE LEADS |
4,566 |
|
Datasheet | 3050 | Barrel, Stainless Steel | Box | Active | VRS (Passive) | Sine Wave | Ferrous Metals, Gear Tooth | Wire Leads | 60 kHz | - | - | - | -40°C ~ 107°C | - | - |
|
|
MAG-SWMAG-SW |
1,158 |
|
Datasheet | - | Module | Bulk | Active | Reed Switch | SPST-NO | Magnet | Wire Leads | - | 100V | - | - | - | - | - |
|
|
TS-3511-02-0300TMR SENSOR - FLANGE MOUNT SENSOR |
100 |
|
Datasheet | - | Module | Box | Active | Bipolar Switch | Analog Voltage, 3-Wire | Magnet | Wire Leads | 1 kHz | 1.8V ~ 5.5V | 0.5mT | -0.5mT | -20°C ~ 85°C | - | - |
|
|
TS-324-03-0300TMR SENSOR - FLATPACK SENSOR - O |
1,875 |
|
Datasheet | - | Flange Mount | Box | Active | Omnipolar Switch | Analog Voltage, 3-Wire | Magnet | Wire Leads | 1 kHz | 1.8V ~ 5.5V | 3.5mT | 2.2mT | -20°C ~ 85°C | - | - |
|
|
TS-324-04-0300TMR SENSOR - FLATPACK SENSOR - O |
1,623 |
|
Datasheet | - | Flange Mount | Box | Active | Omnipolar Switch | Analog Voltage, 3-Wire | Magnet | Wire Leads | 1 kHz | 1.8V ~ 5.5V | 1.7mT | 1mT | -20°C ~ 85°C | - | - |
|
|
TS-324-01-0300TMR SENSOR - FLATPACK SENSOR - B |
1,386 |
|
Datasheet | - | Flange Mount | Box | Active | Bipolar Switch | Analog Voltage, 3-Wire | Magnet | Wire Leads | 1 kHz | 1.8V ~ 5.5V | 1.7mT | -1.7mT | -20°C ~ 85°C | - | - |
|
|
TS-324-02-0300TMR SENSOR - FLATPACK SENSOR - B |
100 |
|
Datasheet | - | Flange Mount | Box | Active | Bipolar Switch | Analog Voltage, 3-Wire | Magnet | Wire Leads | 1 kHz | 1.8V ~ 5.5V | 0.5mT | -0.5mT | -20°C ~ 85°C | - | - |
|
|
TS-3511-03-0300TMR SENSOR - FLANGE MOUNT SENSOR |
3,441 |
|
Datasheet | - | Module | Box | Active | Omnipolar Switch | Analog Voltage, 3-Wire | Magnet | Wire Leads | 1 kHz | 1.8V ~ 5.5V | 3.5mT | 2.2mT | -20°C ~ 85°C | - | - |
|
|
TS-3511-04-0300TMR SENSOR - FLANGE MOUNT SENSOR |
3,336 |
|
Datasheet | - | Module | Box | Active | Omnipolar Switch | Analog Voltage, 3-Wire | Magnet | Wire Leads | 1 kHz | 1.8V ~ 5.5V | 1.7mT | 1mT | -20°C ~ 85°C | - | - |
