Machine Vision - Lenses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Focal Length | Magnification | Focal Ratio | Compatible Sensor Size (Max) | Field of View | Working Distance | Depth Of Field | Resolution | TV Distortion | Filter Size | Diameter | Length | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

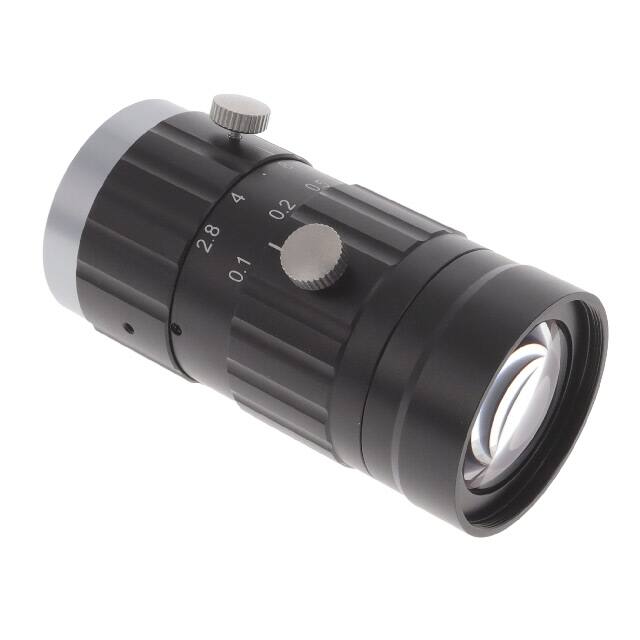

VFA1-111-20M16LENS W/A F2.8-F22 0.0032-0.148X |
2,762 |
|
- |
- | Case | Active | Wide Angle | 16.0mm | 0.0032x ~ 0.148x | F2.8 ~ F22 | 1.1" | 3361.0 x 4473.2mm ~ 72.4 x 96.5mm | 5000mm ~ 100mm | 22.4mm | - | 0.3% ~ 0.5% | M35.5 x P0.5 | 38.0mm Dia | 78.0mm | C-Mount | -10°C ~ 50°C |
|
BAM029RLENS WIDE ANGLE C-MOUNT |
3,190 |
|
Datasheet | - | Bag | Active | Wide Angle | 6.0mm | - | - | - | - | 100mm (Min) | - | - | - | M30.5 x P0.5 | 32.0mm Dia | 43.4mm | C-Mount | - |
|
BAM02FCLENS WIDE ANGLE C-MOUNT |
2,990 |
|
Datasheet | - | Bag | Active | Wide Angle | 12.0mm | - | - | - | - | 100mm (Min) | - | - | - | M27 x P0.5 | 29.5mm Dia | 53.7mm | C-Mount | - |
|
BAM02FELENS WIDE ANGLE C-MOUNT |
4,767 |
|
Datasheet | - | Bag | Active | Wide Angle | 16.0mm | - | - | - | - | 100mm (Min) | - | - | - | M27 x P0.5 | 29.5mm Dia | 39.8mm | C-Mount | - |
|
BAM02FALENS WIDE ANGLE C-MOUNT |
2,654 |
|
Datasheet | - | Bag | Active | Wide Angle | 8.0mm | - | - | - | - | 100mm (Min) | - | - | - | M40.5 x P0.5 | 42.0mm Dia | 44.0mm | C-Mount | - |
|
BAM02FFLENS WIDE ANGLE C-MOUNT |
3,476 |
|
Datasheet | - | Bag | Active | Wide Angle | 25.0mm | - | - | - | - | 100mm (Min) | - | - | - | M30.5 x P0.5 | 32.0mm Dia | 44.9mm | C-Mount | - |
|
0703-120-000-25LENS STD F4 0.033X-0.5X M42-MT |
1,647 |
|
Datasheet | Rodagon-M42 | Box | Active | Standard | 60.0mm | 0.033x ~ 0.5x | F4 | - | 44.0mm | 159mm ~ 1275mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 111.1mm | M42-Mount | - |
|
|
0703-120-000-27LENS STD F8 0.033X-0.5X M42-MT |
2,949 |
|
Datasheet | Rodagon-M42 | Box | Active | Standard | 60.0mm | 0.033x ~ 0.5x | F8 | - | 44.0mm | 159mm ~ 1275mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 111.1mm | M42-Mount | - |
|
|
0703-120-000-26LENS STD F5.6 0.033X-0.5X M42-MT |
4,806 |
|
Datasheet | Rodagon-M42 | Box | Active | Standard | 60.0mm | 0.033x ~ 0.5x | F5.6 | - | 44.0mm | 159mm ~ 1275mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 111.1mm | M42-Mount | - |
|
|
0703-118-000-27LENS STD F8 0.05X-0.5X M42-MOUNT |
2,181 |
|
Datasheet | Rodagon-M42 | Box | Active | Standard | 40.0mm | 0.05x ~ 0.5x | F8 | - | 44.0mm | 94mm ~ 1027mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 81.7mm | M42-Mount | - |
|
|
0703-118-000-25LENS STD F4 0.05X-0.5X M42-MOUNT |
4,055 |
|
Datasheet | Rodagon-M42 | Box | Active | Standard | 40.0mm | 0.05x ~ 0.5x | F4 | - | 44.0mm | 94mm ~ 1027mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 81.7mm | M42-Mount | - |
|
|
0020-007-000-30LENS W ANG F1.6 0X-0.1X C-MT |
3,489 |
|
Datasheet | MeVis-CF | Box | Obsolete | Wide Angle | 25.0mm | 0x ~ 0.1x | F1.6 | 1" | 16.0mm | 260mm (Min) | - | 2µm | - | M30 x P0.75 | 34.0mm Dia | 47.6mm | C-Mount | - |
|

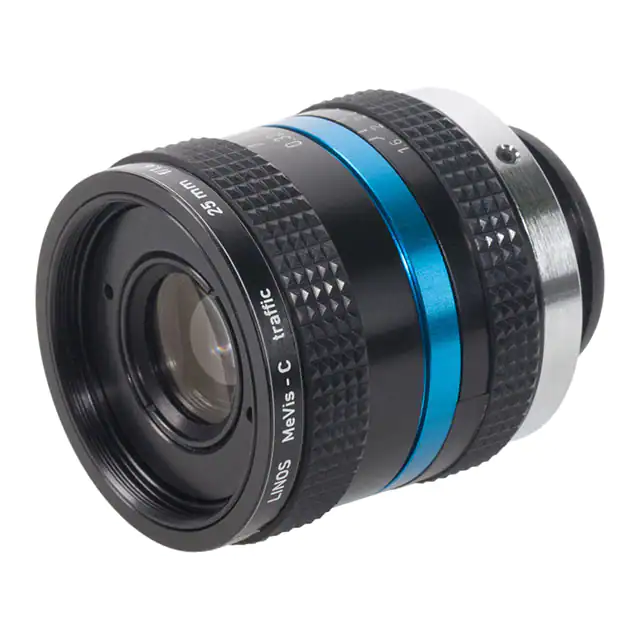

0020-002-000-45LENS W ANG F1.6 0X-0.1X C-MT |
4,417 |
|
Datasheet | MeVis-C | Box | Obsolete | Wide Angle | 25.0mm | 0x ~ 0.1x | F1.6 | 1" | 16.0mm | 260mm (Min) | - | 2µm | - | M35.5 x P0.5 | 42.0mm Dia | 47.8mm | C-Mount | - |
|
|
0703-095-000-21LENS TELEPHOTO F4 3.3X-3.7X FLEX |
2,658 |
|
Datasheet | inspec.x L | Box | Active | Telephoto | 105.0mm | 3.3x ~ 3.7x | F4 | - | 82.0mm | 75mm ~ 79mm | - | 5µm | - | M46 x P0.75 | 53.0mm Dia | 94.5mm | Flexible | - |
|
|
214260O-S-ER-100 |
1,119 |
|
Datasheet | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
214261O-S-ER-050 |
2,743 |
|
Datasheet | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CIL160-F5.6-M12A65016mm Telephoto 1/1.7" M12 Lens |
1,358 |
|
Datasheet | Telephoto | Bag | Active | Telephoto | 16.0mm | - | F5.6 | 1/2.3" | 28° @ 6.2mm | - | - | 12MP (1.85µm) | -0.5% | M12 x P0.5 | 14.0mm Dia | 22.4mm | S-Mount | - |
|
|
CIL043-F3.2-M12B6504.4mm No Distortion M12 Lens |
1,562 |
|
Datasheet | Low Distortion | Bag | Active | Wide Angle | 4.4mm | - | F3.2 | 1/2.5" | 85° @ 7.9mm | - | - | 10MP (1.55µm) | -0.6% | M12 x P0.5 | 14.0mm Dia | 22.0mm | S-Mount | - |
|
|
CIL062-F2.8-M12A6506mm No Distortion M12 Lens |
2,736 |
|
Datasheet | Low Distortion | Bag | Active | No Distortion | 6.2mm | - | F2.8 | 1/1.8" | 60° @ 7.2mm | - | - | 6-8MP | -2% | M12 x P0.5 | 16.0mm Dia | 23.4mm | S-Mount | - |
|
|
CIL062-F2.8-M12ANIR6mm No Distortion M12 Lens |
3,995 |
|
Datasheet | Low Distortion | Bag | Active | No Distortion | 6.2mm | - | F2.8 | 1/1.8" | 60° @ 7.2mm | - | - | 6-8MP | -2% | M12 x P0.5 | 16.0mm Dia | 23.4mm | S-Mount | - |
