Light Curtains
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Protection | Detection Capability | Protective Height | Number of Beams | Beam Pitch | Operating Range | Features | Ingress Protection | Operating Temperature | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

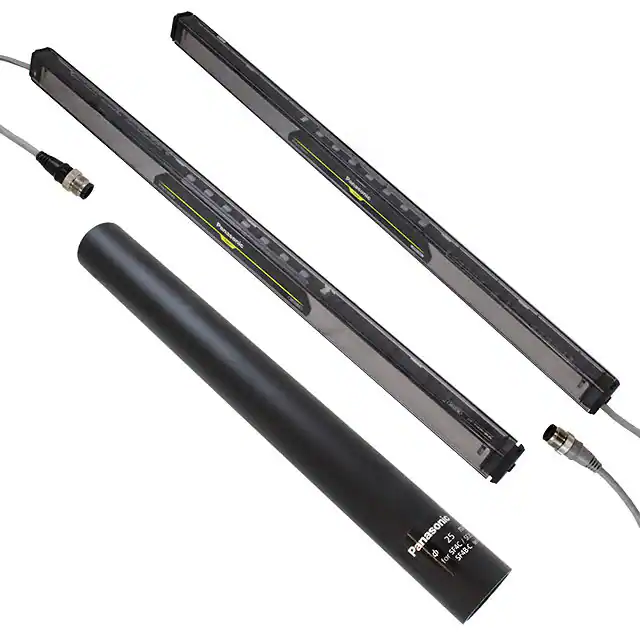

SF4B-H24CA-J05LIGHT CURTAIN HAND 25MM |
4,996 |
|
Datasheet | SF4B-C | Bulk | Active | Hand | 25mm | 503mm | 24 | 20mm | 0.3m ~ 7.0m | Blanking, Muting Function | IP65 - Dust Tight, Water Resistant | -10°C ~ 55°C | 24VDC |
|
SF4D-H40-01TYPE 4 HAND 790MM IP-67 |
2,044 |
|
Datasheet | SF4D | Bulk | Active | Hand | 25mm | 780mm | 40 | 20mm | 0.2m ~ 15.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 | -10°C ~ 55°C | 24VDC |
|
|
SF4C-F23LIGHT CURTAIN FINGER 14MM |
2,307 |
|
Datasheet | SF4C | Box | Active | Finger | 14mm | 240mm | 23 | 10mm | 0.1m ~ 3.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4C-F23-J05LIGHT CURTAIN FINGER 14MM |
2,899 |
|
Datasheet | SF4C | Box | Active | Finger | 14mm | 240mm | 23 | 10mm | 0.1m ~ 3.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF2B-A18-NLIGHT CURTAIN ARM/FOOT 47MM |
1,546 |
|
Datasheet | SF2B | Box | Obsolete | Arm/Foot | 47mm | 712mm | 18 | 40mm | 0.2m ~ 13.0m | - | IP65 - Dust Tight, Water Resistant | -10°C ~ 55°C | 24VDC |
|
|
SF2B-A18-PLIGHT CURTAIN ARM/FOOT 47MM |
1,731 |
|
Datasheet | SF2B | Box | Obsolete | Arm/Foot | 47mm | 712mm | 18 | 40mm | 0.2m ~ 13.0m | - | IP65 - Dust Tight, Water Resistant | -10°C ~ 55°C | 24VDC |
.jpg)
|

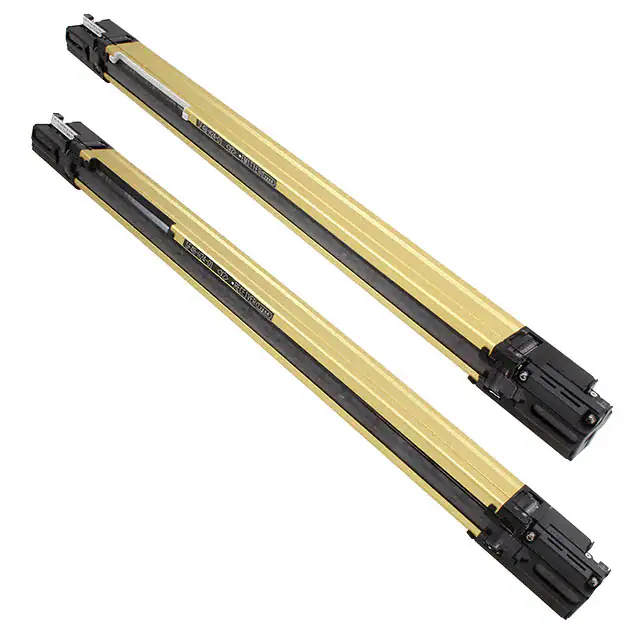

SF4B-H24-01(V2)LIGHT CURTAIN HAND 25MM |
4,424 |
|
Datasheet | SF4B | Box | Obsolete | Hand | 25mm | 470mm | 24 | 20mm | 0.3m ~ 9.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
SF4B-H24(V2)LIGHT CURTAIN HAND 25MM |
1,222 |
|
Datasheet | SF4B | Box | Obsolete | Hand | 25mm | 470mm | 24 | 20mm | 0.3m ~ 9.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF2B-H32SLLIGHT CURTAIN HAND 27MM |
3,101 |
|
Datasheet | SF2B | Box | Obsolete | Hand | 27mm | 632mm | 32 | 20mm | 0.2m ~ 13.0m | - | IP65 - Dust Tight, Water Resistant | -10°C ~ 55°C | 24VDC |
|
|
SF4B-A12(V2)LIGHT CURTAIN ARM/FOOT 45MM |
3,974 |
|
Datasheet | SF4B | Box | Obsolete | Arm/Foot | 45mm | 470mm | 12 | 40mm | 0.3m ~ 9.0m | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
