Multivibrators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Independent Circuits | Schmitt Trigger Input | Propagation Delay | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74VHC123ANIC MULTIVIBRATOR 8.1NS 16DIP |
3,640 |
|
Datasheet | 74VHC | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Monostable | 2 | Yes | 8.1 ns | 8mA, 8mA | 2 V ~ 5.5 V | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
74VHC123ASJIC MULTIVIBRATOR 8.1NS 16SOP |
4,747 |
|
Datasheet | 74VHC | 16-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | Monostable | 2 | Yes | 8.1 ns | 8mA, 8mA | 2 V ~ 5.5 V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOP |
|

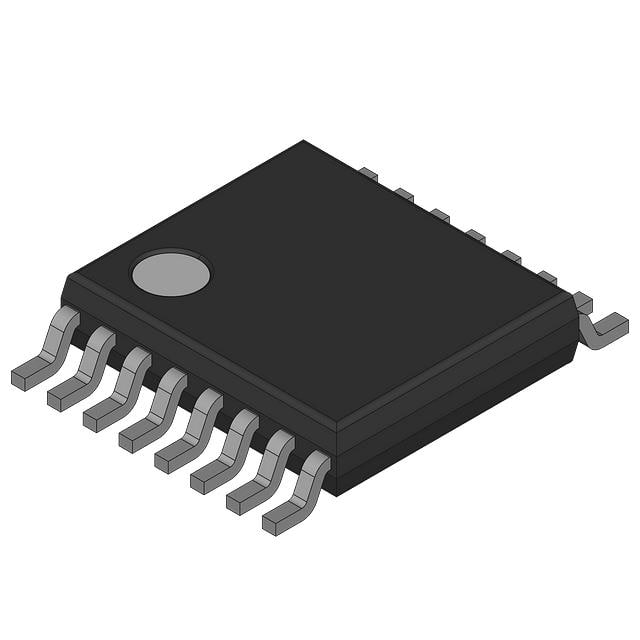

74VHC221AMTCXMONOSTABLE MULTIVIBRATOR, AHC/VH |
30,000 |
|
Datasheet | 74VHC | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Monostable | 2 | Yes | 10.2 ns | 8mA, 8mA | 2 V ~ 5.5 V | -40°C ~ 85°C | - | - | Surface Mount | 16-TSSOP |
|
74VHC221ASJIC MULTIVIBRATOR 8.1NS 16SOP |
6,110 |
|
Datasheet | 74VHC | 16-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | Monostable | 2 | Yes | 8.1 ns | 8mA, 8mA | 2 V ~ 5.5 V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOP |
|
|
DM74LS221SJIC MULTIVIBRATOR |
12,878 |
|
Datasheet | 74LS | 16-DIP (0.300", 7.62mm) | Bulk | Active | Monostable | 2 | Yes | 80 ns | 8mA, 400µA | 4.75 V ~ 5.25 V | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
MM74HC4538SJXIC MULTIVIBRATOR 26NS 16SOP |
2,000 |
|
Datasheet | 74HC | 16-SOIC (0.209", 5.30mm Width) | Bulk | Obsolete | Monostable | 2 | Yes | 26 ns | 5.2mA, 5.2mA | 2 V ~ 6 V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOP |
|

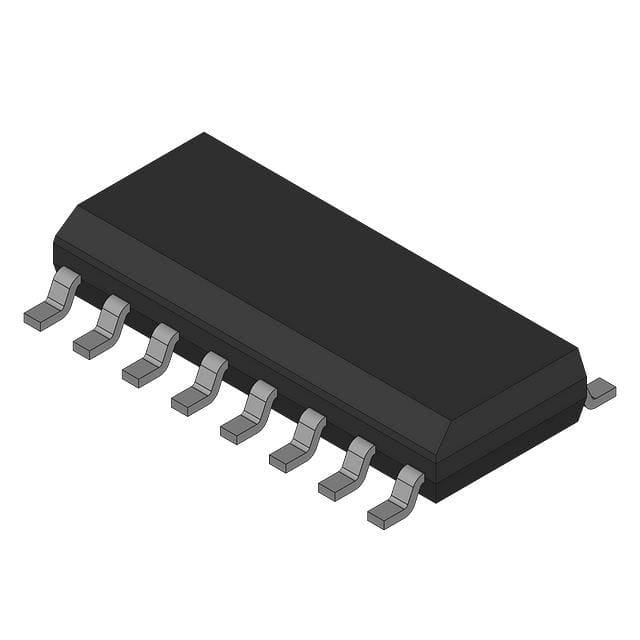

74VHC123ASJXMONOSTABLE MULTIVIBRATOR, AHC/VH |
53,613 |
|
Datasheet | 74VHC | 16-SOIC (0.209", 5.30mm Width) | Bulk | Active | Monostable | 2 | Yes | 10.2 ns | 8mA, 8mA | 2 V ~ 5.5 V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOP |
|
|
MM74HC221ASJIC MULTIVIBRATOR |
966 |
|
Datasheet | 74HC | 16-SOIC (0.209", 5.30mm Width) | Bulk | Active | Monostable | 2 | Yes | 22 ns | 5.2mA, 5.2mA | 2 V ~ 6 V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOP |
|
|
4528BDCIC MULTIVIBRATOR |
4,074 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
