Instrumentation, Op Amps, Buffer Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Amplifier Type | Number of Circuits | Output Type | Slew Rate | Gain Bandwidth Product | -3db Bandwidth | Current - Input Bias | Voltage - Input Offset | Current - Supply | Current - Output / Channel | Voltage - Supply Span (Min) | Voltage - Supply Span (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS3004-FSZRIC OPAMP GP 2 CIRCUIT 8SOIC |
2,051 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | 2 | Rail-to-Rail | 0.25V/µs | - | - | 170 pA | 2 µV | 2mA | - | 2.7 V | 5 V | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|

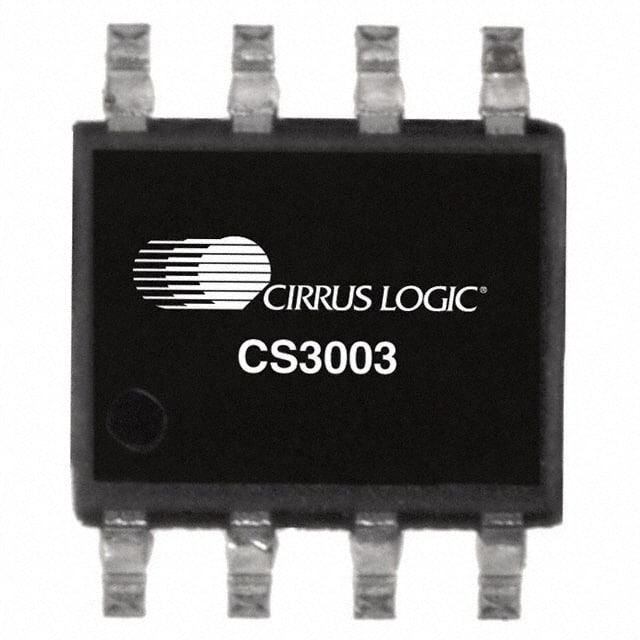

CS3003-FNZIC INST AMP 1 CIRCUIT 8QFN |
2,763 |
|
Datasheet | - | 8-QFN | Tray | Obsolete | Instrumentation | 1 | Rail-to-Rail | 0.25V/µs | - | - | 170 pA | 2 µV | 1mA | - | 2.7 V | 5 V | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
CS3003-FSZIC OPAMP GP 1 CIRCUIT 8SOIC |
2,312 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | General Purpose | 1 | Rail-to-Rail | 0.25V/µs | - | - | 170 pA | 2 µV | 1mA | - | 2.7 V | 5 V | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
CS3003-INZIC INST AMP 1 CIRCUIT 8QFN |
2,271 |
|
- |
- | 8-QFN | Tray | Obsolete | Instrumentation | 1 | Rail-to-Rail | 0.25V/µs | - | - | 170 pA | 2 µV | 1mA | - | 2.7 V | 5 V | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
CS3004-FSZIC OPAMP GP 2 CIRCUIT 8SOIC |
3,423 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | General Purpose | 2 | Rail-to-Rail | 0.25V/µs | - | - | 170 pA | 2 µV | 2mA | - | 2.7 V | 5 V | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
CS3014-FSZIC OPAMP GP 2 CIRCUIT 8SOIC |
1,300 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | General Purpose | 2 | Rail-to-Rail | 0.25V/µs | - | - | 170 pA | 10 µV | 1mA | - | 2.7 V | 5 V | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
CS3014-INZIC OPAMP GP 2 CIRCUIT 8QFN |
3,230 |
|
- |
- | 8-QFN | Tray | Obsolete | General Purpose | 2 | Rail-to-Rail | 0.25V/µs | - | - | 170 pA | 10 µV | 1mA | - | 2.7 V | 5 V | -40°C ~ 125°C | - | - | Surface Mount | 8-QFN |
|
|
CS3002-ISZRIC OPAMP GP 2 CIRCUIT 8SOIC |
4,393 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | 2 | Rail-to-Rail | 5V/µs | - | - | 100 pA | 10 µV | - | - | 2.7 V | 6.7 V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
CS3011-ISZRIC INST AMP 1 CIRCUIT 8SOIC |
3,612 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Instrumentation | 1 | Rail-to-Rail | 2V/µs | - | - | 50 pA | 10 µV | 900µA | - | 2.7 V | 6.7 V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
CS3301-ISZRIC PGA/DIFF 2 CIRCUIT 24SSOP |
3,882 |
|
Datasheet | - | 24-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Programmable Gain, Differential | 2 | Differential | - | 2 kHz | - | 500 pA | 5 µV | 3.5mA | 25 mA | 4.75 V | 5.25 V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SSOP |
