Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

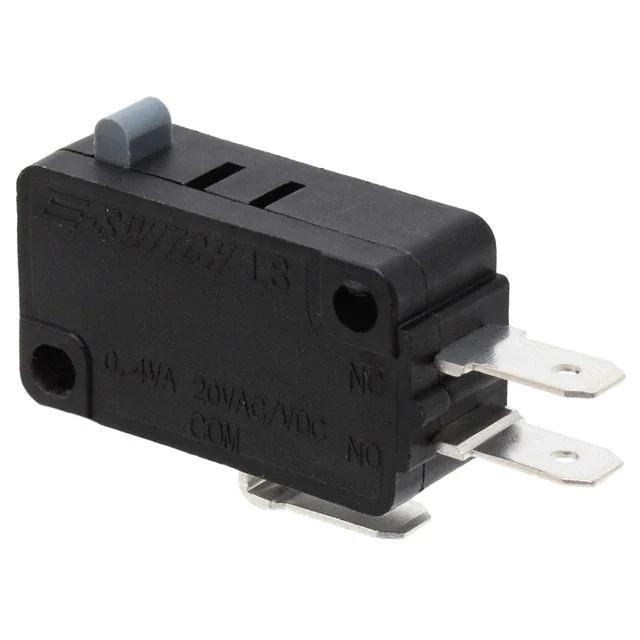

LS085R100F160C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
1,763 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
LS085R100F160C2ASWITCH SNAP ACT SPDT 0.4VA 20V |
1,428 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
PP1-EB7-2A2SWITCH SNAP ACTION SPDT 16A 125V |
4,850 |
|
Datasheet | PP1 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | White Actuator | 300gf | - | 0.738" (18.7mm) | - | - | - | 0°C ~ 85°C |
|
|
LS085R104F140C1CSWITCH SNP ACT SPST-NO 0.4VA 20V |
2,969 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 140gf | 40gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
LS085R102F120C1CSWITCH SNP ACT SPST-NO 0.4VA 20V |
2,319 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 40gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
LS085R101F100C2ASWITCH SNAP ACT SPDT 0.4VA 20V |
2,438 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 30gf | 0.602" (15.3mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
LS085R104F050C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
2,708 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | 20gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|

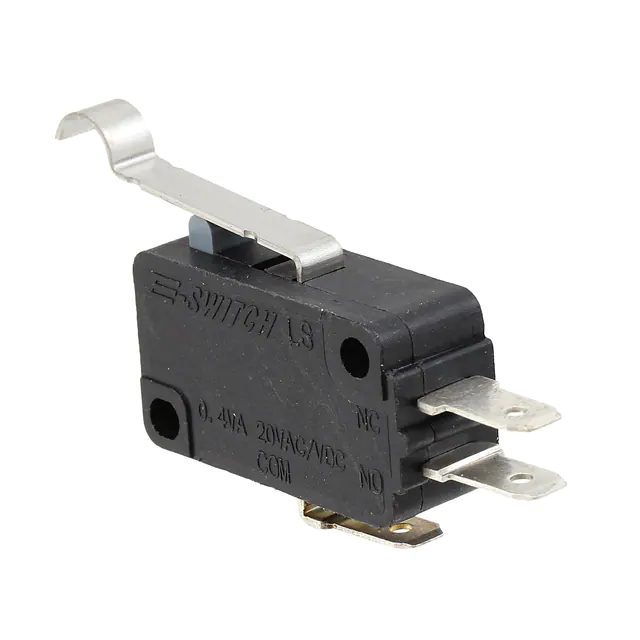

LS085R104F085C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
3,628 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 85gf | 30gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
LS085R104F050V2BSWITCH SNP ACT SPST-NC 0.4VA 20V |
1,017 |
|
Datasheet | LS | Bulk | Active | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 50gf | 20gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
LS085R105F100S1ASWITCH SNAP ACT SPDT 0.4VA 20V |
4,267 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 100gf | 30gf | 0.815" (20.7mm) | 0.106" (2.7mm) | - | - | -25°C ~ 85°C |
