Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VM3SCQF3003L04SWITCH LIMIT SPDT 10A 125V |
2,050 |
|
Datasheet | VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 300gf | 250gf | 0.591" (15.00mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
LCGDF5A10LCUSWITCH SNAP ACTION SPDT 1A 125V |
4,707 |
|
Datasheet | LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 28gf | 3.000gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
VM3SCQF3003L02SWITCH LIMIT SPDT 10A 125V |
4,383 |
|
Datasheet | VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 180gf | 0.720" (18.3mm) | 0.118" (3.0mm) | 0.060" (1.5mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|
TMCGD6ST2740CSWITCH SNAP ACTION SPDT 10A 125V |
2,707 |
|
Datasheet | TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 17gf | 3.000gf | 0.600" (15.2mm) | 0.500" (12.7mm) | 0.125" (3.2mm) | 0.201" (5.1mm) | -55°C ~ 150°C |
|
ZW50F90FW1SWITCH SNAP ACTION SPDT 6A 125V |
2,797 |
|
Datasheet | ZW | Box | Active | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 72gf | - | - | - | - | - | -40°C ~ 120°C |
|
|
ASKHC2A24ACSWITCH SNAP ACTION SPDT 15A |
3,835 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7-3S29E9-437-1SWITCH V BASIC |
1,783 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
311SM3SWITCH SNAP ACTION SPDT 5A 250V |
4,414 |
|
Datasheet | SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 15gf | 2.039gfm | 0.280" (7.1mm) | 0.310" (7.9mm) | 0.110" (2.8mm) | 0.057" (1.45mm) | -55°C ~ 125°C |
|
|
V15W11WP015A05-KW1SWITCH SNP ACT SPST-NO 0.1A 125V |
3,718 |
|
Datasheet | V15W | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 48 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 18gf | 3.000gf | 0.812" (20.6mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|
|
GPTCNC11SWITCH SNAP ACTION SPDT 15A 125V |
4,351 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount | Screw Terminal | - | - | 348gf | 113gf | 0.825" (21.0mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | 0°C ~ 55°C |
|
D2SW-P01L1-2MSWITCH SNP ACT SPST-NC 0.1A 125V |
1,601 |
|
Datasheet | D2SW-P | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
41SM1-TSWITCH SNAP ACTION SPDT 11A 250V |
1,953 |
|
Datasheet | SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

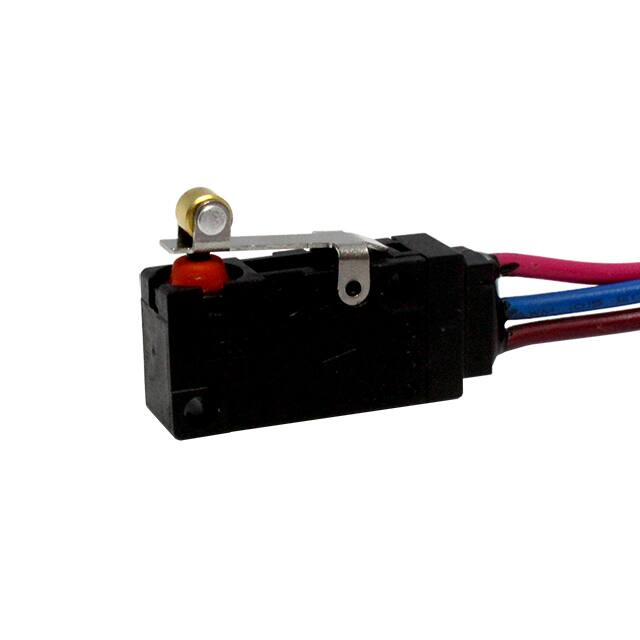

VM3SCQF3003L06SWITCH LIMIT SPDT 10A 125V |
3,960 |
|
Datasheet | VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 380gf | 160gf | 0.799" (20.3mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.012" (0.3mm) | -40°C ~ 120°C |
|
|
1DM418SWITCH SNAP ACTION SPDT 10A 125V |
4,943 |
|
Datasheet | DM | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 425gf | - | - | - | - | 0.520" (13.2mm) | -37°C ~ 82°C |
|
|
ZW50F91FW1SWITCH SNAP ACTION SPDT 6A 125V |
3,834 |
|
Datasheet | ZW | Box | Active | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 120°C |
|
|
311SM702SWITCH SNAP ACTION SPDT 4A 250V |
3,342 |
|
Datasheet | SM | Bulk | Active | SPDT | On-Mom | 4A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 12gf | 2.039gfm | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.015" (0.38mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
VM3SCQF3003L01SWITCH LIMIT SPDT 10A 125V |
4,207 |
|
Datasheet | VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 210gf | 100gf | 0.795" (20.2mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
|
141SM102SWITCH SNAP ACTION SPDT 11A 250V |
2,011 |
|
Datasheet | SM | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
D2SW-01L1MS-0SWITCH SNAP ACTION MINI BASIC |
4,434 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
311SM1-H2SWITCH SNAP ACTION SPDT 5A 250V |
3,138 |
|
- |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 40gf | 7.138gf | 0.340" (8.6mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -55°C ~ 125°C |
