Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV36029SWITCH SNAP ACTION SPDT 3A 125V |
3,146 |
|
Datasheet | AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Right Side | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV36049SWITCH SNAP ACTION SPDT 3A 125V |
4,943 |
|
Datasheet | AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Right Side | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV37029SWITCH SNAP ACTION SPDT 3A 125V |
2,280 |
|
Datasheet | AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV37049SWITCH SNAP ACTION SPDT 3A 125V |
3,569 |
|
Datasheet | AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV38029SWITCH SNAP ACTION SPDT 3A 125V |
2,005 |
|
Datasheet | AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
AM1704KFSWITCH SNAP ACTION SPDT 10A 125V |
2,386 |
|
Datasheet | AM1 | Tray | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | Cadmium Free | 160gf | 43gf | 1.188" (30.2mm) | 0.178" (4.5mm) | 0.027" (0.7mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
ABV1215619RSWITCH SNAP ACTION SPDT 3A 250V |
1,847 |
|
Datasheet | ABV | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 320gf | 60gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

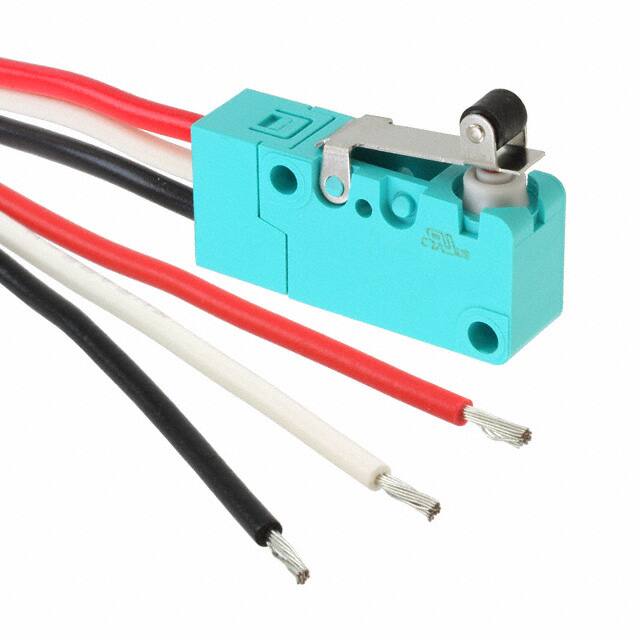

ABV1615619RSWITCH SNAP ACTION SPDT 3A 250V |
1,037 |
|
Datasheet | ABV | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 320gf | 60gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

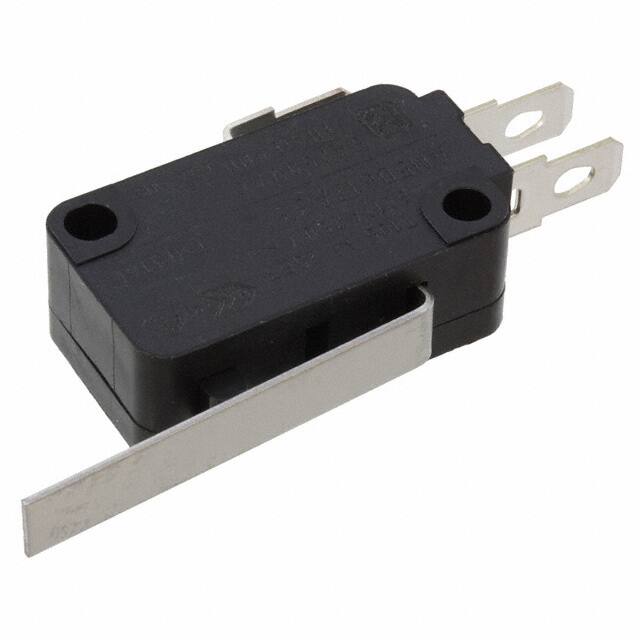

AM50612A33-ASWITCH SNAP ACTION SPDT 6A 125V |
4,637 |
|
Datasheet | AM5 | Tray | Obsolete | SPDT | On-Mom | 6A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | - | 30gf | 5.099gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.040" (1.0mm) | 0.055" (1.4mm) | -25°C ~ 105°C |
|
AV16653FSWITCH SNAP ACT SPST-NO 10A 125V |
2,494 |
|
Datasheet | AV1 | Bulk | Obsolete | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 500gf | - | 0.500" (12.7mm) | - | - | 0.083" (2.1mm) | -25°C ~ 85°C |
