Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

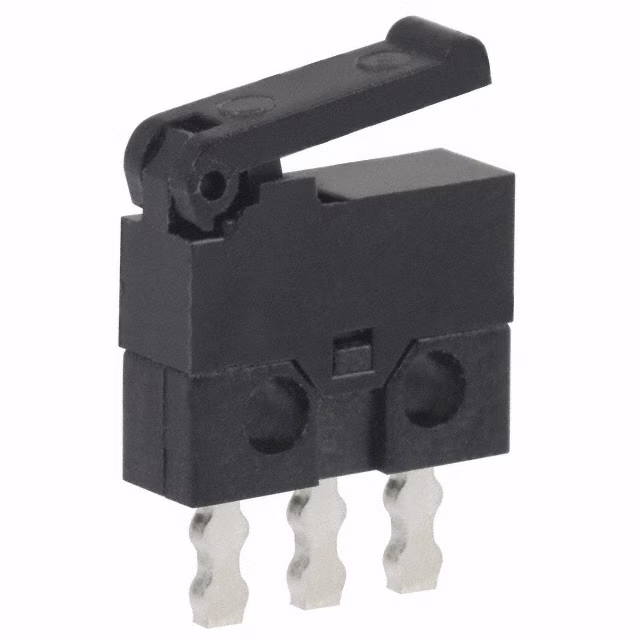

MDS001SWITCH SNAP ACT SPDT 300MA 30V |
2,675 |
|
Datasheet | MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

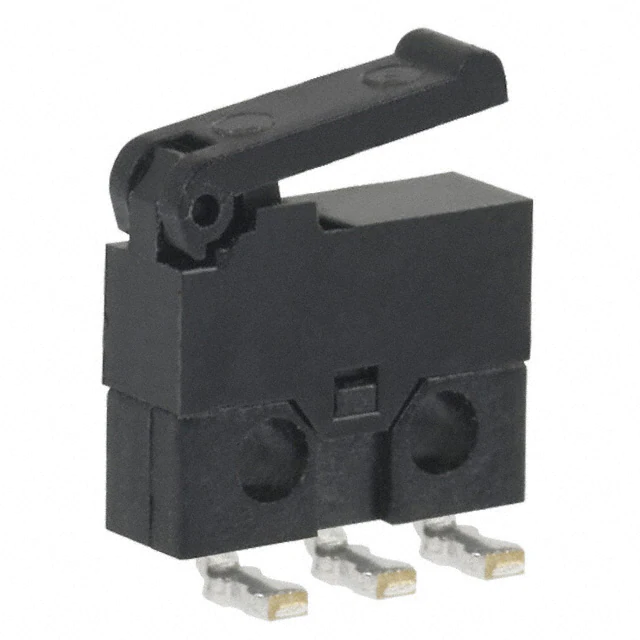

MDS002SWITCH SNAP ACT SPDT 300MA 30V |
1,334 |
|
Datasheet | MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

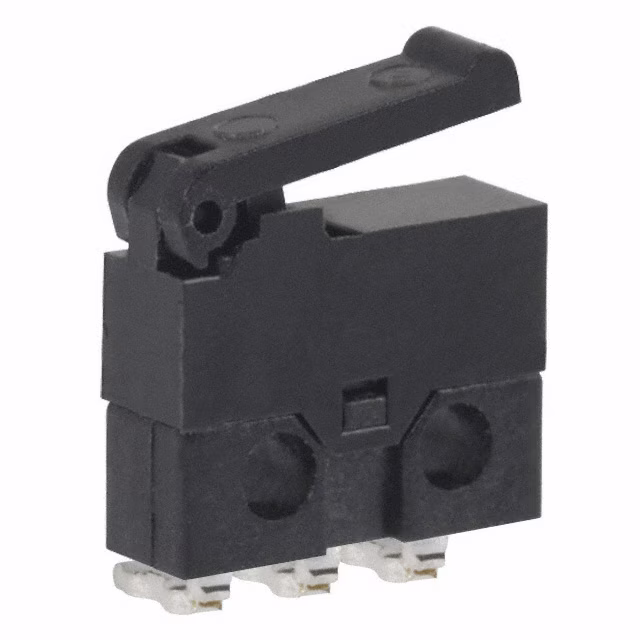

MDS003SWITCH SNAP ACT SPDT 300MA 30V |
1,643 |
|
Datasheet | MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

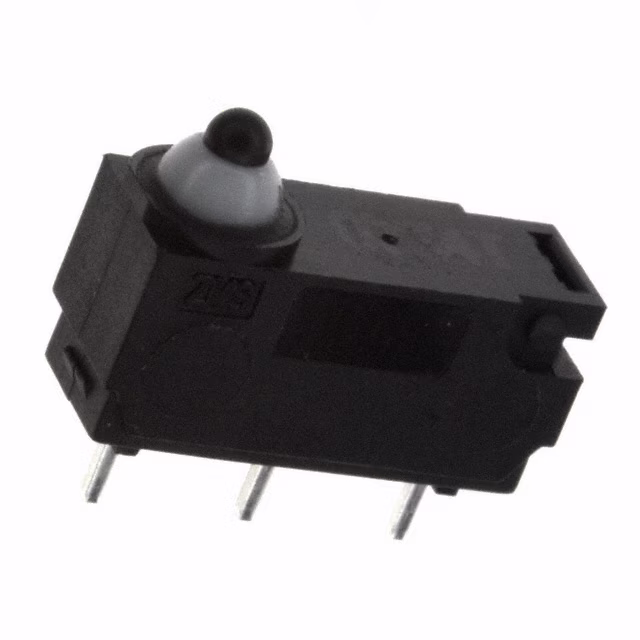

ZMSL03130P00PSCSWITCH SNAP ACTION SPDT 3A 125V |
1,010 |
|
Datasheet | ZMS | Tray | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|

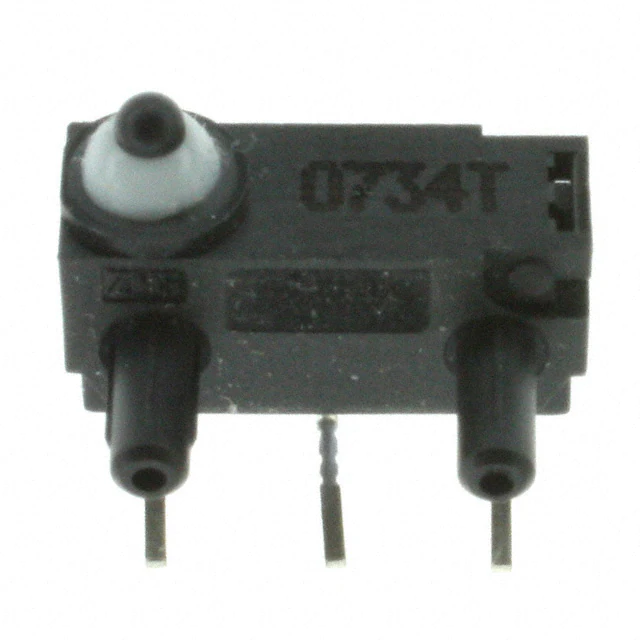

ZMSL03130P00RRCSWITCH SNAP ACTION SPDT 3A 125V |
4,249 |
|
Datasheet | ZMS | Tray | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP65 - Dust Tight, Water Resistant | Support Posts | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|

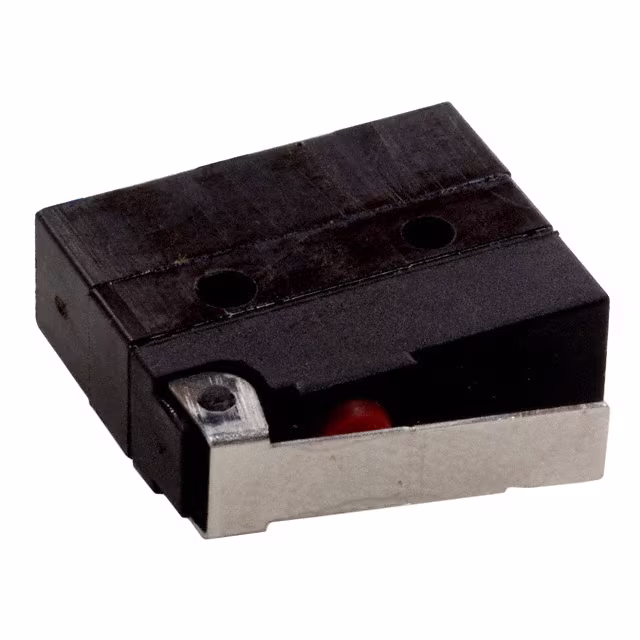

LCS06A060L27QCSWITCH SNAP ACTION SPDT 6A 125V |
1,213 |
|
Datasheet | LCS | Tray | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 8.000gf | - | 0.420" (10.7mm) | 0.354" (9.0mm) | - | 0.094" (2.4mm) | -40°C ~ 125°C |
|
MDS002CSWITCH SNAP ACT SPDT 300MA 30V |
2,761 |
|
Datasheet | MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

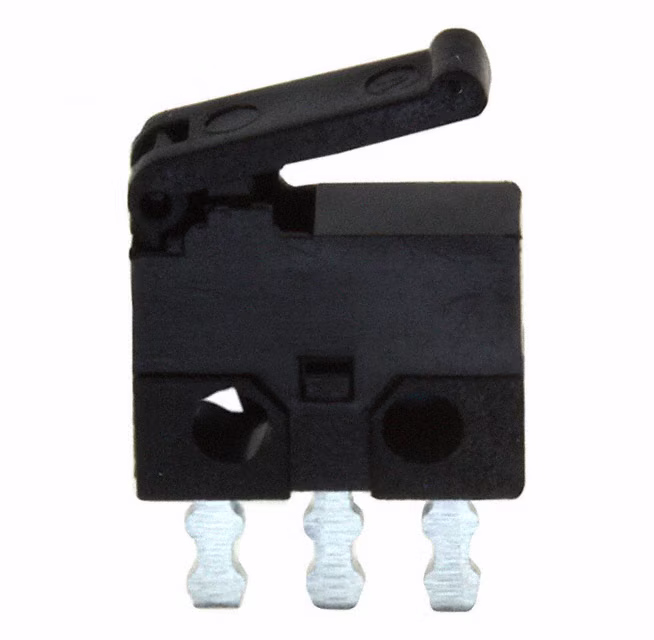

MDS001CSWITCH SNAP ACT SPDT 300MA 30V |
1,945 |
|
Datasheet | MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|
|
MDS003CSWITCH SNAP ACT SPDT 300MA 30V |
1,824 |
|
Datasheet | MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

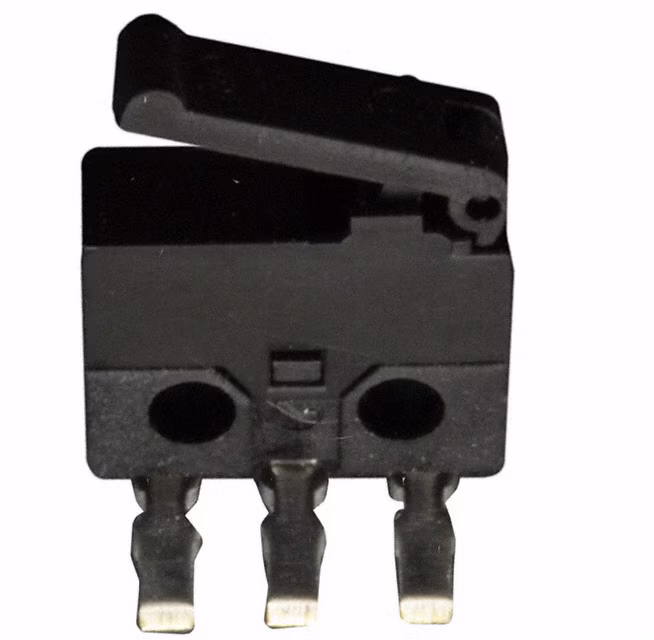

MDS005CSWITCH SNAP ACT SPDT 300MA 30V |
2,284 |
|
Datasheet | MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
