Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCRB11SWITCH LIMT 4PST 3A 240V |
3,205 |
|
- |
OsiSense XC | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCRT115SWITCH LIMIT DPDT 3A 240V |
2,808 |
|
Datasheet | XCRT | Box | Active | DPDT | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Rod Spring | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
1CH28-12SEALED SWITCH |
4,246 |
|
Datasheet | - | Bulk | Active | SPDT | On-On | 4A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Connector | - | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.51mm) | 0.250" (6.35mm) | - |
|
|
XCRT215SWITCH LIMIT DPDT 3A 240V |
3,426 |
|
Datasheet | XCRT | Box | Active | DPDT | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Rod Spring | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

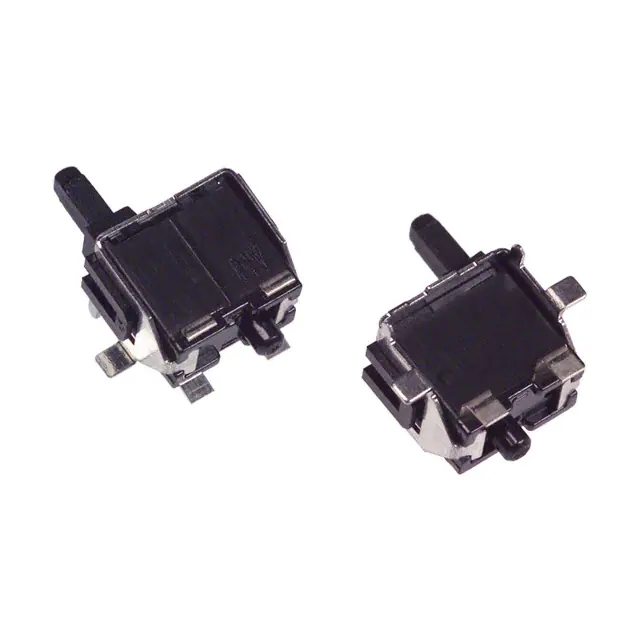

ESE-11MH5TSWITCH DETECTOR SPST-NO 0.01A 5V |
225 |
|
Datasheet | ESE11 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 35gf | - | - | - | - | - | -10°C ~ 70°C |
|
ZMA00A150P00PCSWITCH SNAP ACT SPDT 100MA 125V |
118 |
|
Datasheet | ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 35gf | 0.272" (6.9mm) | 0.024" (0.6mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
|
DG23-B3AASWITCH SNAP 50MA INSERT LEFT |
926 |
|
Datasheet | DG | Bulk | Active | SPDT | On-Mom | 50mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | - | - | - | - | - | - | - |
|
|
DG23-B2AASWITCH SNAP SPDT 50MA RT |
671 |
|
Datasheet | DG | Bulk | Active | SPDT | On-Mom | 50mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | - | - | - | - | - | - | - |
|
|
V19T16-EC100SWITCH SNAP ACT SPST-NC 16A 125V |
210 |
|
Datasheet | V19 | Box | Active | SPST-NC | On-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 125°C |
|
|
LCW012P00SDYSWITCH SNAP SPST-NO 100MA 125V |
225 |
|
Datasheet | LCW | Tray | Obsolete | SPST-NO | Off-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 203gf | 30gf | 0.343" (8.7mm) | 0.040" (1.0mm) | 0.035" (0.9mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
|
LCW012P00SDCSWITCH SNAP ACT SPDT 100MA 125V |
224 |
|
Datasheet | LCW | Tray | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 203gf | 30gf | 0.343" (8.7mm) | 0.040" (1.0mm) | 0.035" (0.9mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
ZMA00A080L04ECSWITCH SNAP ACT SPDT 0.1A 125V |
2,713 |
|
Datasheet | ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 30gf | 5.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
|
SM3CQF0801L01SWITCH LIMIT SPDT 5A 125V |
1,419 |
|
Datasheet | SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 20gf | 10gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
D3V-6G1M-1C24-T-KSWITCH SNAP ACTION SPDT 6A 250V |
4,514 |
|
Datasheet | D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
.jpg)
|
D3V-6G-3C24-K-3SWITCH SNAP ACT SPST-NO 6A 250V |
2,309 |
|
Datasheet | D3V | Bulk | Obsolete | SPST-NO | Off-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 105°C |
|
|
D3V-6G-3C4-KSWITCH SNAP ACT SPST-NO 6A 250V |
1,863 |
|
Datasheet | D3V | Bulk | Obsolete | SPST-NO | Off-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
|
SM3CQF1302L00SWITCH LIMIT SPDT 5A 125V |
100 |
|
Datasheet | SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 130gf | 75gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
|
SM3AQF0801L02SWITCH LIMIT SPST-NO 5A 125V |
4,465 |
|
Datasheet | SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 25gf | 5.000gf | 0.512" (13.00mm) | 0.178" (4.5mm) | 0.035" (0.9mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
V15T16-CZ100A02-KSWITCH SNAP ACTION SPDT 16A 250V |
3,510 |
|
Datasheet | V15 | Tray | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|
|
D3V-62-2C24SWITCH SNAP ACT SPST-NC 6A 250V |
2,047 |
|
