Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS0 1101ASWITCH SNAP ACTION SPDT 10A 250V |
2,710 |
|
Datasheet | SS | Box | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.346" (8.80mm) | - | 0.040" (1.0mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
D3VM0926ASWITCH SNAP ACTION SPDT 6A 250V |
2,133 |
|
Datasheet | D3V | Box | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.039" (1.0mm) | -25°C ~ 105°C |
|
|
V16M0061GSWITCH SNAP ACTION SPDT 16A 250V |
100 |
|
Datasheet | V | Box | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | - | 35gf | 0.598" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.126" (3.2mm) | -25°C ~ 80°C |
|
|
V15M0036BSWITCH SNAP ACTION SPDT 15A 250V |
100 |
|
Datasheet | V | Box | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -25°C ~ 80°C |
|
D2HW-BR202MLAUTOMOTIVE SWITCHES - SUBMINIATU |
3,851 |
|
Datasheet | D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.252" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
V15M0164DSWITCH SNAP ACTION SPDT 15A 250V |
3,491 |
|
Datasheet | V | Box | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -25°C ~ 150°C |
|
|
D2MC5109ASWITCH SNAP ACTION SPDT 5A 125V |
3,531 |
|
Datasheet | D2MC | Box | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Without | Chassis Mount | Quick Connect - 0.205" (5.2mm) | IP40 | - | 0.051gfm | 0.006gfm | - | 21° | 3° | 17° | -25°C ~ 80°C |
|
|
D2VW2245ESWITCH SNAP ACTION SPDT 5A 125V |
3,238 |
|
Datasheet | D2VW | Box | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
D2VW2255BSWITCH SNAP ACT SPDT 0.1A 125V |
4,518 |
|
Datasheet | D2VW | Box | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.598" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.80mm) | 0.063" (1.6mm) | -40°C ~ 85°C |
|

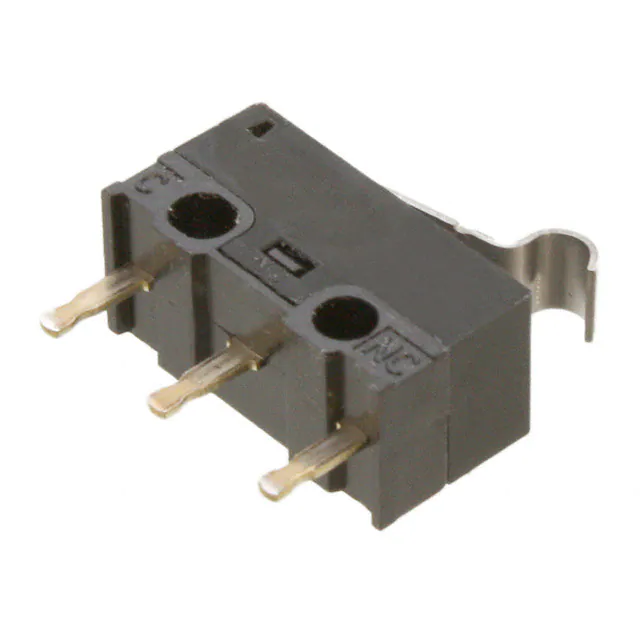

D2F-01FL3SWITCH SNAP ACTION SPDT 0.1A 30V |
1,281 |
|
Datasheet | D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 40gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
