Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XEP3S2W3B524SWITCH SNAP ACT SPDT 1.5A 240V |
3,065 |
|
- |
OsiSense XC | Box | Active | SPDT | On-On | 1.5A (AC), 300mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Cable Leads | IP40 | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
|
XEP3S1W3B524SWITCH SNAP ACT SPDT 1.5A 240V |
2,230 |
|
Datasheet | OsiSense XC | Box | Active | SPDT | On-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Cable Leads | IP40 | - | - | - | - | - | - | - | -25°C ~ 125°C |
|

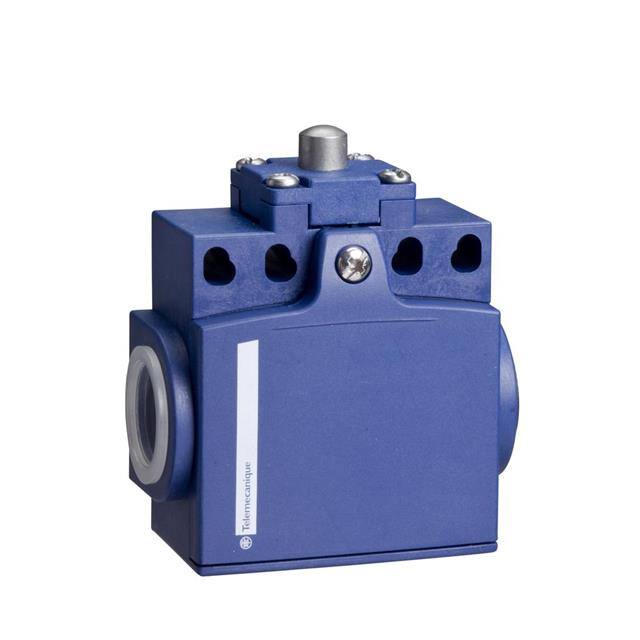

XCNT2110P16SWITCH LIMIT DPST 3A 240V |
1,338 |
|
Datasheet | XCNT | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMH2910L1LS PL MINI METAL PLUNGER 2NC SNA |
3,561 |
|
Datasheet | XCMH | Bulk | Active | DPST-NC | On-Off | 750mA (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMH2115L1LS PL MINI PLASTIC RLLR LVR NCNO |
4,794 |
|
Datasheet | XCMH | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKS101SWITCH LIMIT DPST 3A 240V |
1,134 |
|
Datasheet | XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKS101H29SWITCH LIMIT DPST 3A 240V |
2,814 |
|
Datasheet | XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKN2918P20SWITCH LIMIT DPST-NC 3A 240V |
4,953 |
|
Datasheet | XC | Box | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMH2110L2LS PL MINI MTL PLUGR NCNO SNAP 2 |
2,410 |
|
Datasheet | XCMH | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMH2159L1LS PL MINI PLASTIC ROD NCNO SNAP |
2,170 |
|
Datasheet | XCMH | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
