Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCKJ10553H7SWITCH LIMIT DPDT 3A 240V |
2,563 |
|
Datasheet | XCKJ | Box | Active | DPDT (DB/DM) | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Rod | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKJ10511H29SWITCH LIMIT DPST 3A 240V |
1,121 |
|
Datasheet | XCKJ | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

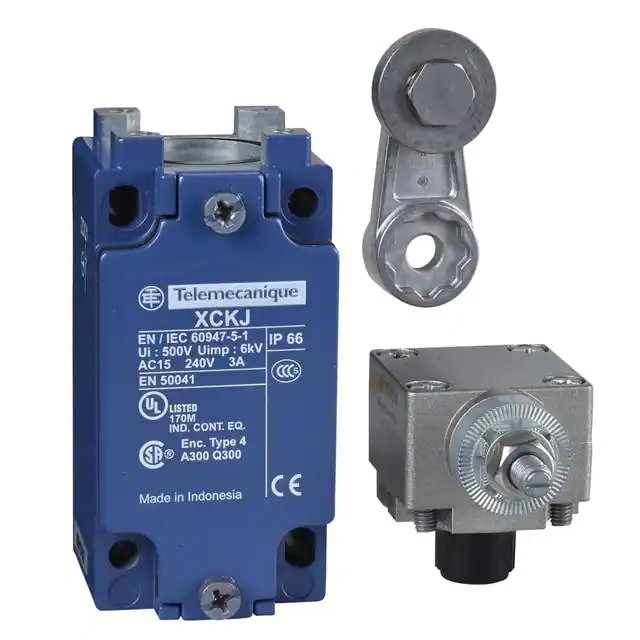

XCKJ10513H7SWITCH LIMIT DPST 3A 240V |
4,915 |
|
Datasheet | - | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKL110SWITCH LIMIT DPDT 3A 240V |
4,213 |
|
Datasheet | XCKL | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

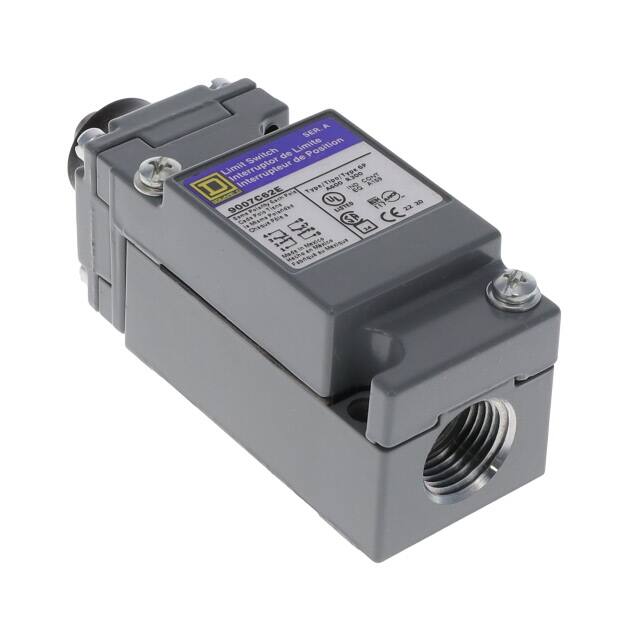

9007C62ESWITCH SNAP ACTION DPDT 6A 120V |
4,348 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007C62B2SWITCH LIMIT DPDT 6A 120V |
3,281 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007C66B2S20SWITCH NEMA LIMIT DPDT 10A 600V |
3,912 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 10A (AC) | 600 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
XCMD2116L1SWITCH LIMIT DPDT 1.5A 240V |
1,121 |
|
Datasheet | XCMD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Cable with Connector | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKP2118G11SWITCH LIMIT DPDT 3A 240V |
4,428 |
|
Datasheet | XCKP | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKS141SWITCH LIMIT DPDT 3A 240V |
2,996 |
|
Datasheet | XCKS | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
