Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

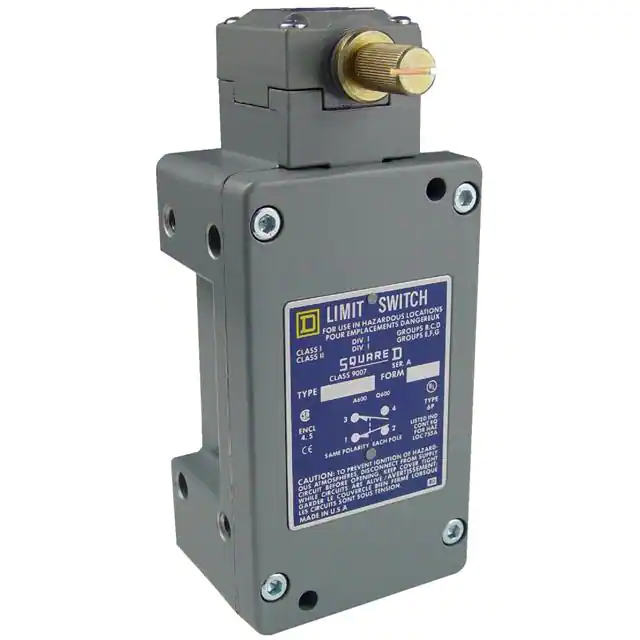

9007CR53A2SWITCH LIMIT DPST 6A 120V |
3,084 |
|
Datasheet | Square D 9007CR | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007CR53B2S9SWITCH LIMIT 10A 600V |
4,420 |
|
Datasheet | C | Box | Active | - | - | 10A (AC) | 600 V | - | Side Rotary - No Lever | Chassis Mount | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C66KCSWITCH LIMIT DPDT 6A 120V |
1,941 |
|
Datasheet | 9007 | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Wire | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54CP6SWITCH LIMIT SPDT 6A 120V |
3,569 |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54A2Y140SWITCH LIMIT 10A 600V |
3,024 |
|
Datasheet | C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
HL100WN2M16SWITCH LIMIT DPST 6A 120V |
4,024 |
|
Datasheet | Square D HL100 | Box | Active | DPST-NO (DM) | Off-Mom | 6A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -18°C ~ 177°C |
|
|
L1472MSWITCH SNAP ACTION DPST 20A 120V |
3,749 |
|
- |
L100/300 | Bulk | Active | DPST-NO (DM) | Off-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
XC2JC10131SWITCH LIMIT SPDT 3A 240V |
1,360 |
|
Datasheet | OsiSense XC | Box | Active | SPDT | On-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
9007CR53CSWITCH NEMA LIMIT DPST 6A 120V |
2,221 |
|
Datasheet | Square D 9007CR | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007TUD1SWITCH LIMIT 12A 600V |
2,667 |
|
Datasheet | T | Box | Active | - | - | 12A (AC) | 600 V | - | - | - | - | IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
