Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSM3902L10SWITCH SAFETY LMT 3PST 1.5A 240V |
4,366 |
|
Datasheet | XCSM | Box | Active | 3PST-2NC/1NO | On-Off, Off-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
9007C52GDSWITCH NEMA LIMIT DPST 6A 120V |
1,452 |
|
Datasheet | Square D 9007C | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Adjustable Side Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54KM11SWITCH LIMIT SPDT 1.2A 600V |
3,429 |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54B2Y140SWITCH LIMIT 10A 600V |
3,791 |
|
Datasheet | C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
XCKP2149G11SWITCH LIMIT DPST 3A 240V |
1,975 |
|
Datasheet | XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
9007C52B2M11SWITCH LIMIT SPDT 6A 120V |
2,414 |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54B2M11SWITCH LIMIT SPDT 1.2A 600V |
1,467 |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
XCMW102SWITCH LIMIT WIRELESS |
2,759 |
|
Datasheet | XCMW | Box | Active | - | - | - | - | - | Roller Plunger | Chassis Mount | Wireless | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 55°C |
|

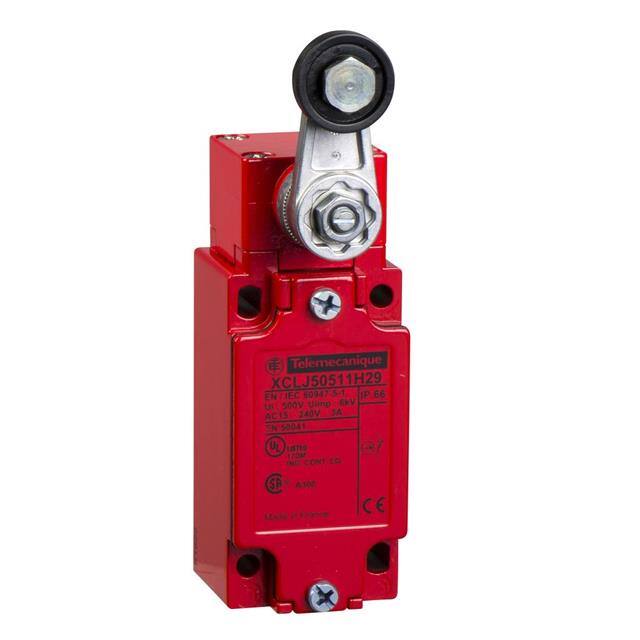

XCLJ50511H29SWITCH LIMIT DPST 3A 240V |
2,136 |
|
Datasheet | XCLJ | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKD21H2G11SWITCH LIMIT DPST 3A 240V |
3,619 |
|
Datasheet | XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
